Seite 1/6
CUSTOMER SERVICE
KLEIN TOOLS, INC.
450 Bond Street
Lincolnshire, IL 60069
1-877-775-5346
customerservice@kleintools.com
www.kleintools.com
139560T Rev. 11/13 B
ENGLISH
• AUTO / MANUAL
RANGE
• DATA HOLD
• 3-1/2 DIGIT
1999 COUNT LCD
• BACKLIGHT
• WORKLIGHT
• TEMPERATURE
ENGLISH
ELECTRICAL SPECIFICATIONS
DC Voltage Measurement
Range Resolution Accuracy
400mV 0.1mV
± (0.8% + 2 digits)
4V 0.001V
40V 0.01V
400V 0.1V
600V 1V ± (1.0% + 2 digits)
Overload Protection: 600V DC / AC
Input Impedance: 10MΩ.
AC Voltage Measurement
Range Resolution Accuracy
400mV 0.1mV
± (1.0% + 10 digits)
4V 0.001V
40V 0.01V
400V 0.1V
600V 1V ± (1.2% + 10 digits)
Overload Protection: 600V DC / AC
Frequency: 40 to 400Hz
Input Impedance: 10MΩ.
Response: Averaging
AC Current Measurement
Range Resolution Accuracy
4A 0.001A ± (3.5% + 20 digits)
≤
0.5A
4A 0.001A ± (3.0% + 10 digits)
>
0.5A
40A 0.01A ± (3.0% + 10 digits)
400A 0.1A ± (2.5% + 10 digits)
600A 1A ± (1.5% + 5 digits)
Overload Protection: 720A for 60 sec. max
Frequency: 50 to 60Hz
Response: Averaging
Resistance Measurement
Range Resolution Accuracy
400Ω 0.1Ω
± (1.2% + 2 digits)
4kΩ 0.001kΩ
40kΩ 0.01kΩ
400kΩ 0.1kΩ
4MΩ 0.001MΩ
40MΩ 0.01MΩ
± (2.0% + 5 digits)
Overload Protection: 600V DC / AC
Capacitance Measurement
Range Resolution Accuracy
50nF 0.01nF ± (3.0% + 10 digits)
500nF 0.1nF
± (3.0% + 5 digits)
5µF 0.001µF
50µF 0.01µF
100µF 0.1µF
Overload Protection: 600V DC / AC
Frequency Measurement
Range Resolution Accuracy
50Hz 0.01Hz
± (0.1% + 3 digits)
500Hz 0.1Hz
5kHz 0.001kHz
50kHz 0.01kHz
100kHz 0.1kHz
Overload Protection: 600V DC / AC
Duty Cycle Measurement
Range Resolution Accuracy
0.1
˜
99.9% 0.1% ± (3.0% + 0 digits)
Overload Protection: 600V DC / AC
Temperature Measurement
Range Resolution Accuracy
-4
˜
1832°F 1°F ± (3.0% + 3 digits)
-20
˜
1000°C 1°C ± (3.0% + 2 digits)
Overload Protection: 600V DC / AC
Diode Test
Overload Protection Resolution Open Circuit Voltage
600V DC / AC 1mV Appx. 1.5V
Continuity Test
Overload Protection Resolution Open Circuit Voltage
600V DC / AC
100mΩ
Appx. 0.45V
WARRANTY
www.kleintools.com/warranty
CLEANING
Turn instrument off and disconnect test leads. Clean the instrument by using
a damp cloth. Do not use abrasive cleaners or solvents.
STORAGE
Remove the batteries when instrument is not in use for a prolonged period of
time. Do not expose to high temperatures or humidity. After a period of storage
in extreme conditions exceeding the limits mentioned in the Specifications
section, allow the instrument to return to normal operating conditions before
using it.
DISPOSAL / RECYCLE
Caution: This symbol indicates that equipment and its accessories
shall be subject to a separate collection and correct disposal.
Dwg Name: CL200-139560TART Dwg No: 139560T
ECO No: 15429 Pkg Dwg Ref: 1650 Rev: B
Color Reference: N/A
Instruction Manual
CL200
600A
600V
CL200 Instruction Manuals - MASTER.indd 1-4 12/16/2013 12:16:18 PM

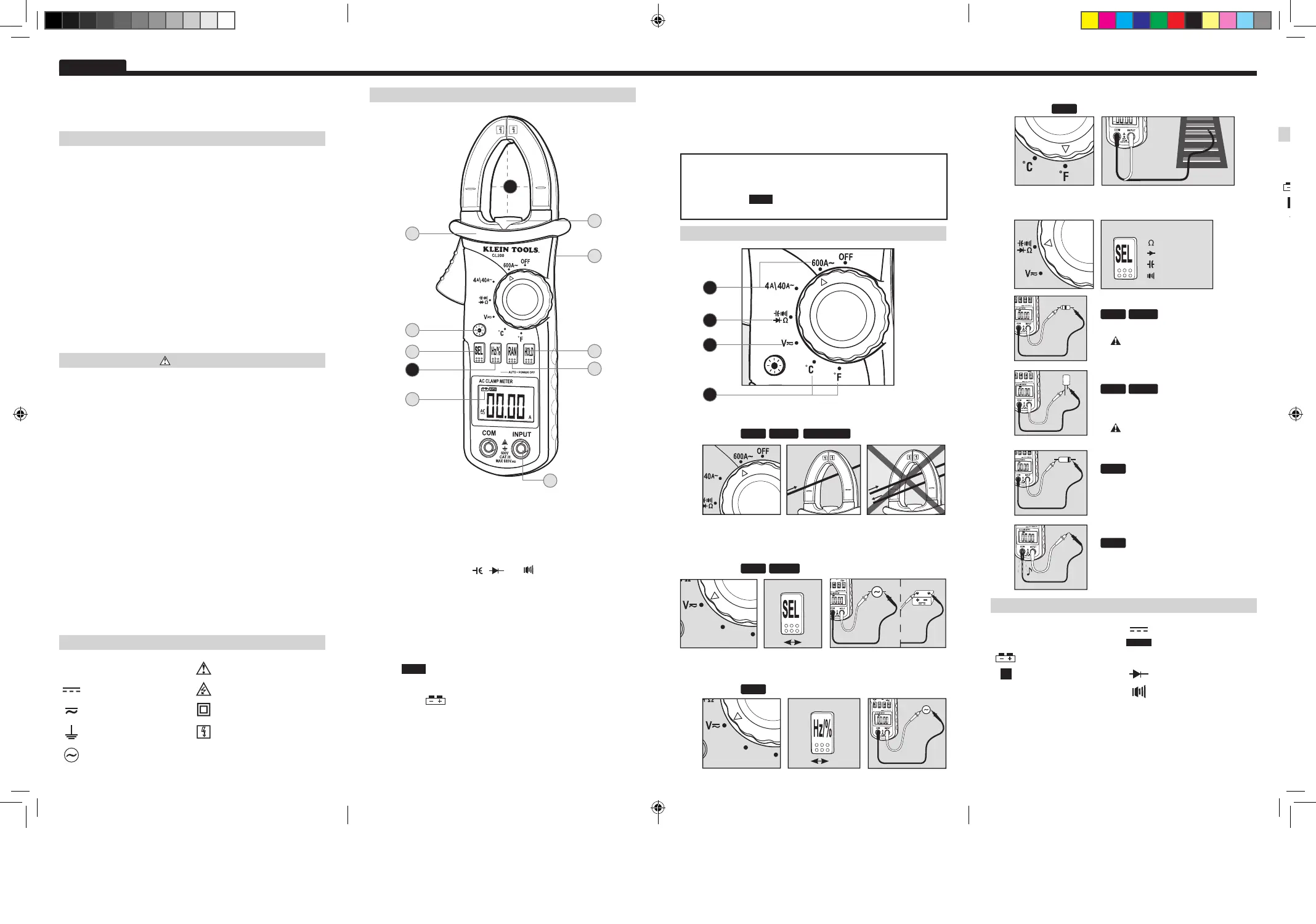

ENGLISH
1
B
C
3
F
A
E
D
G
H
H
A. Use CAT III rated leads or higher.
Do not attempt to measure more than 600V or
any current on lead input.
B. Keep hands below line when measuring high current levels.
C. Select Functionality Button
• Switch between AC and DC.
• Switch between
Ω, , , and .
D. Data Hold
• Press to hold the current input on the display.
• Press again to return to live reading.
E. Auto / Manual Range
• Press repeatedly to cycle through manual ranges.
• Hold for 2 seconds to return to auto ranging mode.
•
AUTO
is displayed on LCD only during auto ranging mode.
F. G. Battery Replacement
• When
indicator is displayed on the LCD,
batteries must be replaced.
• Remove the back screw and replace 3 x AAA batteries.
H. Backlight / Worklight
• Hold button down to enable worklight and backlight.
• On release, lights will turn off automatically after 5 to 15 seconds.
• Worklight only operates during AC current measurement.
• Using lights drains the battery significantly.
1
5
4
FUNCTION INSTRUCTIONS
On Back
2
FEATURE DETAILS
CL200
Instruction Manual
GENERAL SPECIFICATIONS
The Klein Tools CL200 is a multi-featured clamp meter. It measures
AC / DC voltage, AC current, resistance, capacitance, frequency, duty cycle,
and temperature. It can also test diodes and continuity.
• Operating Altitude: 2000 meters
• Relative Humidity: 75% max
• Operating Temperature: 32°F ~ 104°F (0°C~ 40°C)
• Storage Temperature: 14°F ~ 122°F (-10°C ~ 50°C)
• Accuracy Temperature: 64°F ~ 82°F (18°C ~ 28°C)
• Temperature Coef cient: 0.1*(specified accuracy) / °C
• Sampling Frequency: 3 samples per second
• Dimensions: 8" x 3" x 1" (203 mm x 76 mm x 25 mm)
• Weight: 10 oz. (283 g)
• Calibration: Accurate for one year
• Safety Rating: CAT III 600V
• Accuracy: ± (% of reading + # of least significant digits)
WARNINGS
To ensure safe operation and service of the tester, follow these instructions.
Failure to observe these warnings can result in severe injury or death.
• Before each use, verify meter operation by measuring
a known voltage or current.
• Never use the meter on a circuit with voltages that exceed the
category based rating of this meter.
• Do not use the meter during electrical storms, or in wet weather.
• Do not use the meter or test leads if they appear to be damaged.
• Ensure meter leads are fully seated, and keep fingers away from
the metal probe contacts when making measurements.
• Do not open the meter to replace batteries while the probes
are connected.
• Use caution when working with voltages above 60V DC,
or 25V AC RMS. Such voltages pose a shock hazard.
• To avoid false readings that can lead to electrical shock,
replace batteries if a low battery indicator appears.
• Unless measuring voltage or current, shut off and lock out
power before measuring resistance or capacitance.
• Always adhere to local and national safety codes. Use individual
protective equipment to prevent shock and arc blast injury where
hazardous live conductors are exposed.
SYMBOLS
~
AC Alternating Current Warning or Caution
DC Direct Current Dangerous levels
DC/AC Voltage or Current Double Insulated Class II
Ground
Safe for disconnect
from live conductors
AC Source
1. AC Current:
<
600A
Features:
HOLD RANGE WORKLIGHT
• Center wire in guides for best accuracy.
• Opposing currents cancel (use line-splitter when necessary).
2. AC / DC Voltage:
<
600V
Features:
HOLD RANGE
SYMBOLS USED ON LCD
~
AC Measurement DC Measurement
-
Negative DC Value
AUTO
Auto Range Active
Low Battery
A
Current in Amps
H
Hold Active Diode Test
V
Voltage Measurement Continuity Test
Hz
Frequency in Hertz
%
Duty Cycle
F
Capacitance in Farads
°
F
Temperature in Fahrenheit
Ω
Resistance in Ohms
M
Mega 10
6
m
Milli 10
-3
k
Kilo 10
3
n
Nano 10
-9
μ
Micro 10
-6
• Display shows resistance.
• Buzzer sounds if less than 60Ω
Continuity Features:
HOLD
• Select AC or DC voltage source.
3. Frequency (Hz) / Duty Cycle
Features:
HOLD
4. Temperature: -4° ~ 1832°F (-20° ~ 1000°C)
Features:
HOLD
• Use included thermocouple.
AUTO
A
AC
AUTO
A
AC
AUTO
A
AC
AUTO
A
AC
TO SELECT
A
AC
PRESS
AUTO
A
AC
AUTO
A
AC
˚F
˚C
PRESS
Duty
AUTO
A
AC
˚F
˚C
• F
<
100μF
• Wait up to 60 seconds for measurement.
•
Safely discharge capacitor before
measurement.
Capacitance Features:
HOLD RANGE
Display shows:
• Forward voltage drop if forward biased.
• “O.L.” if reverse biased.
Diode Features:
HOLD
• Ω < 40MΩ
•
Do not measure resistance
on a live circuit.
Resistance Features:
HOLD RANGE
5. Resistance / Capacitance / Diode / Continuity
Auto Power-Off
• Device will power off after 30 minutes non-use.
• Turn the dial or press a button to wake.
• Press the
HOLD
button while turning on to disable
Auto Power-Off feature.
PRESS
AC
DC
PRESS
Hz
Duty
PRESS TO SELECT
Resistance
Diode
Capacitance
Continuity
SYMBOLS USED ON LCD
~
AC Measurement DC Measurement
-
Negative DC Value
AUTO
Auto Range Active
Low Battery
A
Current in Amps
H
Hold Active Diode Test
V
Voltage Measurement Continuity Test
Hz
Frequency in Hertz
%
Duty Cycle
F
Capacitance in Farads
°
F
Temperature in Fahrenheit
Ω
Resistance in Ohms
M
Mega 10
6
m
Milli 10
-3
k
Kilo 10
3
n
Nano 10
-9
μ
Micro 10
-6
Dwg Name: CL200-139560TART Dwg No: 139560T
ECO No: 15429 Pkg Dwg Ref: 1650 Rev: B
Color Reference: N/A
CL200 Instruction Manuals - MASTER.indd 5-8 12/16/2013 12:16:21 PM
