Seite 1/42

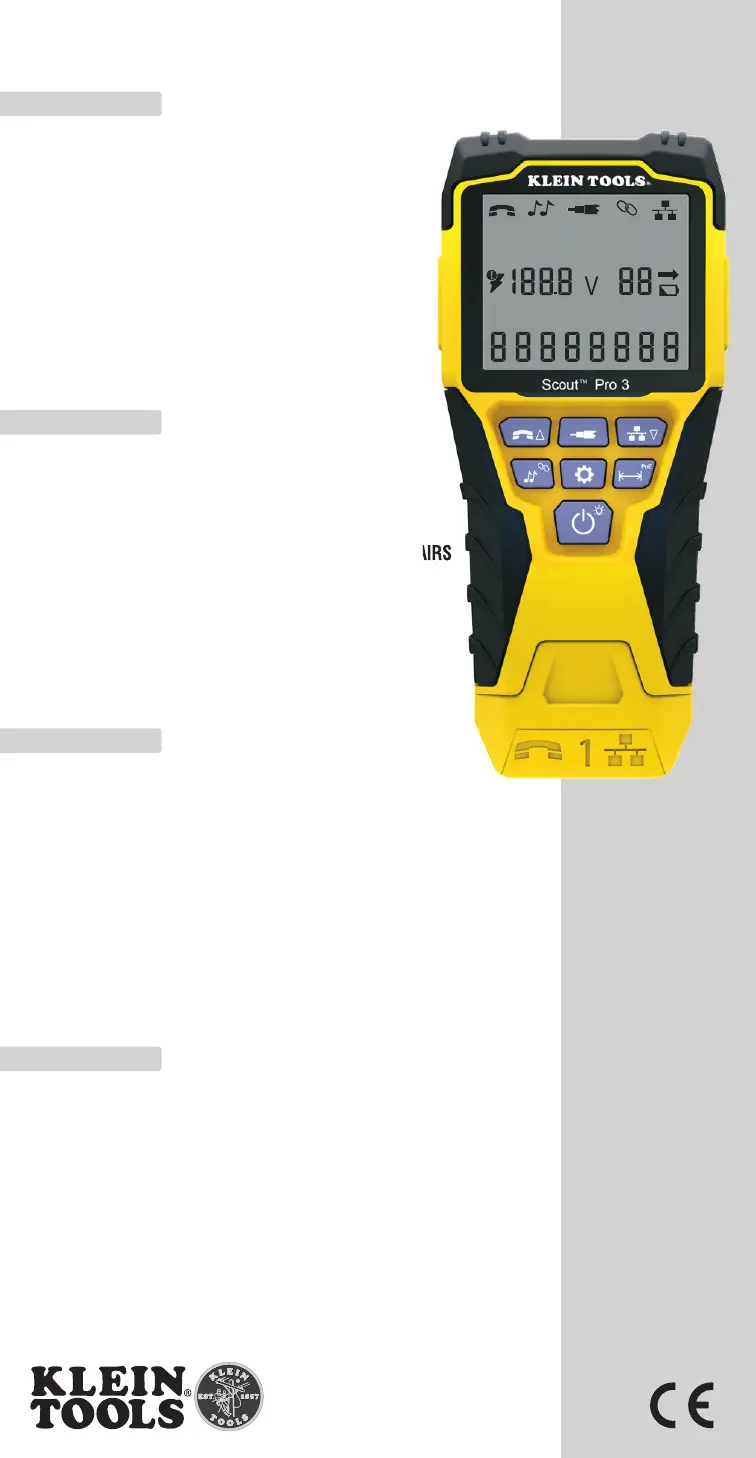

VDV501-852

VDV501-853

VDV Scout

Pro 3

INSTRUCTION MANUAL

• VOICE, DATA AND VIDEO CABLE TESTING

• DETECTS SHORT FAULTS, OPEN FAULTS,

REVERSALS, MISWIRES, CROSSOVER WIRING

AND SPLIT PAIRS

• POWER OVER ETHERNET (PoE)

• CABLE ID

• LENGTH MEASUREMENT

• TONE GENERATOR

• EXTRA-LARGE BACKLIT LCD

• HUB BLINK

• AUTO POWER-OFF

ENGLISH pg. 2

GEBRAUCHSANLEITUNG

• PRÜFUNG VON KABELN FÜR SPRACH-, DATEN- UND

VIDEOÜBERTRAGUNG

• ERKENNT KURZSCHLÜSSE, UNTERBRECHUNGEN,

VERPOLUNG, VERDRAHTUNGSFEHLER UND SPLIT PAIRS

• POWER OVER ETHERNET (PoE)

• KABEL-ID

• LÄNGENMESSUNG

• TONGENERATOR

• EXTRA GROSSES BELEUCHTETES LCD-DISPLAY

• HUB-BLINK-FUNKTION

• AUTOMATISCHE ABSCHALTUNG

DEUTSCH pg. 12

MODE D’EMPLOI

• TEST DE CÂBLES TÉLÉPHONIQUES, DE DONNÉES ET VIDÉO

• DÉTECTE LES COURT-CIRCUITS, LES CIRCUITS OUVERTS,

LES INVERSIONS, LES ERREURS DE CÂBLAGE, LES CÂBLES

CROISÉS ET LES PAIRES DIVISÉES

• POWER OVER ETHERNET (PoE)

• IDENTIFICATION DE CÂBLE

• MESURE DE LONGUEUR

• GÉNÉRATEUR DE TONALITÉ

• TRÈS GRAND ÉCRAN LCD RÉTROÉCLAIRÉ

• CLIGNOTEMENT DE CONCENTRATEUR (HUB BLINK)

• MISE HORS TENSION AUTOMATIQUEV

FRANÇAIS pg. 22

MANUAL DE INSTRUCCIONES

• COMPROBACIÓN DE CABLES DE VOZ, DATOS Y VÍDEO

• DETECTA CORTOS, ABERTURAS, INVERSIONES, CONEXIONES

INCORRECTAS, CABLEADOS CRUZADOS Y PARES DIVIDIDOS

• ALIMENTACIÓN A TRAVÉS DE ETHERNET (Power over Ethernet, PoE)

• IDENTIFICACIÓN DE CABLES

• MEDICIÓN DE LONGITUD

• GENERADOR DE TONOS

• PANTALLA LCD RETROILUMINADA EXTRAGRANDE

• PARPADEO EN EL HUB

• APAGADO AUTOMÁTICO

ESPAÑOL pg. 32

VERPOLUNG, VERDRAHTUNGSFEHLER UND SPLIT PAIRS

1 2

5 6

Pass X-over Rev

Fail Short

Split Open

Shielded

PoE

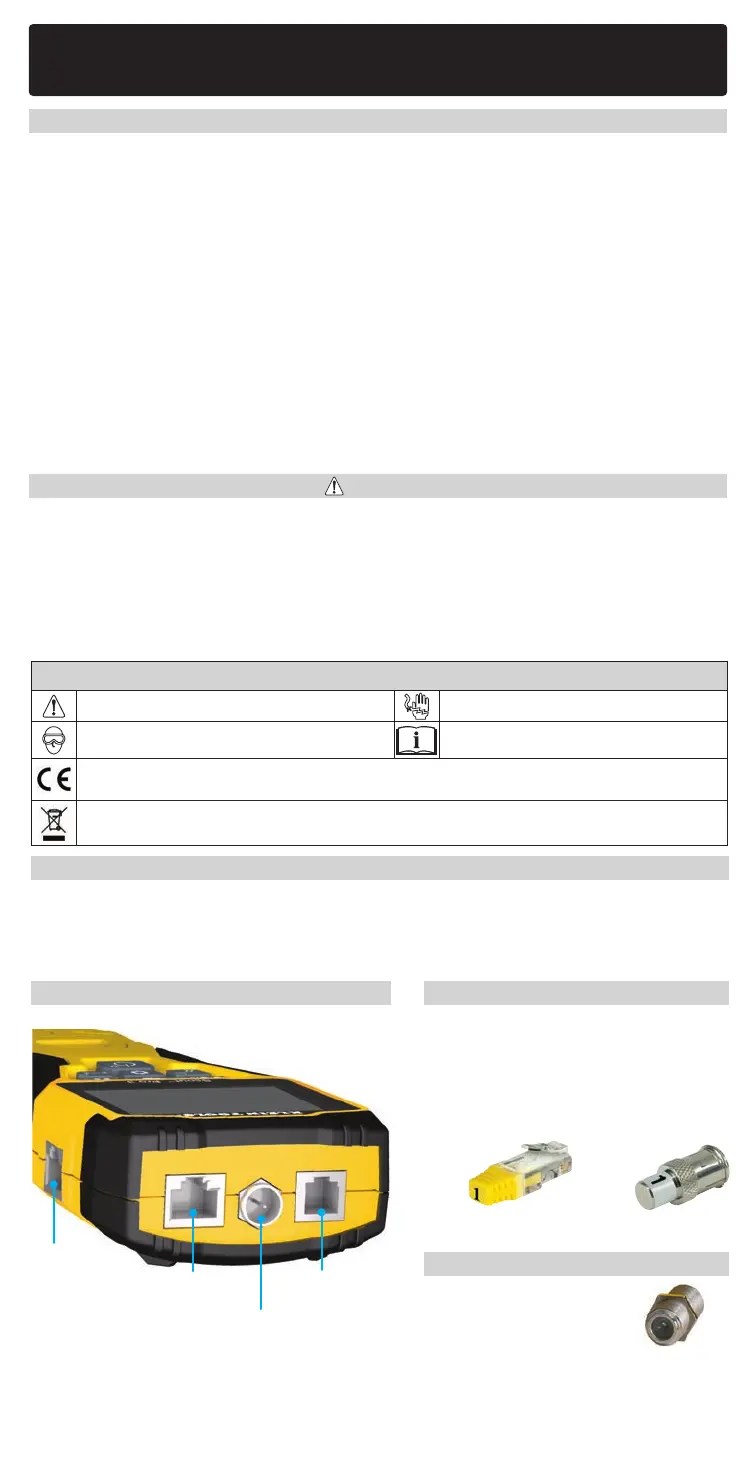

ENGLISH

GENERAL SPECIFICATIONS

The Klein Tools VDV Scout

Pro 3 is a portable voice-data-video cable tester. It tests and

troubleshoots RJ11, RJ12, RJ45 and F-connector terminated cables, and provides tone generation

for cable tracing. The VDV Scout

Pro 3 also measures cable length, tests for shield, performs hub

blink testing and traces up to 19 locations (up to 5 locations with the included remotes, additional

remotes are available separately).

PORTS AND REMOTES OVERVIEW

•

Dimensions: 6.5" x 3.0" x 1.6" (16.5 x 7.6 x 4.1 cm)

•

Weight:

11 oz. (312 g) with battery and remote

•

Operating Temperature: 32° to 122 °F (0° to 50 °C)

•

Storage Temperature: -4° to 140 °F (-20° to 60 °C)

•

Humidity: 10% to 90%, non-condensing

•

Maximum Voltage (between any two connector

pins without damage):

- RJ Jack: 66V DC or 55V AC

- F-Connector: 66V DC or 55V AC

•

Battery Life (9V alkaline):

- Standby: 4 years

- Active: 50 hours (without backlight)

•

Cable Types: Shielded or unshielded; Cat7a, Cat7,

Cat6a, Cat6, Cat5e, Cat3, Coaxial

•

Length Measurement Method: Capacitance

•

Length Measurement Range:

1.5' to 1999' (0.5 m to 610 m) with 15 pF/ft

•

Length Accuracy:

(5% ft) or (5% m)

•

Length Constant Range:

10 pF/ft to 40 pF/ft (33 pF/m to 132 pF/m)

WARNINGS

To ensure the safe operation and service of the tester, please follow these instructions. Failure to

observe these warnings can result in severe injury or death.

•

The PoE jack, located on the right side of the Scout

Pro 3 is the only jack designed for PoE energised

cables. Connecting AC energised cables to any port may damage it and pose a safety hazard to the user.

•

Improperly terminated RJ plugs have the potential to damage the jacks on the VDV Scout

Pro 3. Visually

inspect an RJ plug before inserting it into the tester. The contacts should always be recessed into the plastic

housing of the plug. Plugging 6-position plugs into the 8-position jack on the tester has the potential to

damage the outer-most contacts of the jack, unless the plug is specifically designed for that purpose.

SYMBOLS ON THE TESTER

Warning or Caution Do NOT use on energised circuits.

Always wear approved eye protection. Read the instructions

Conformité Européenne. Conforms with European Economic Area directives.

This symbol indicates that the equipment and its accessories shall be subject to separate

collection and correct disposal.

RJ45 Port: Data cable, Ethernet cable, Cat5e, Cat6, Cat6a, Cat7, Cat7a.

F-Connector Port: Video cable, coaxial cable, RG6/RG6Q cable, RG59 cable.

RJ11/12 Port: Voice cable, POTS (plain old televoice service) cable, 4-wire cable, 6-wire cable,

2 twisted-pair cables, 3 twisted-pair cables, Cat3.

VDV SCOUT

PRO 3 TESTER LOCATION ID REMOTES

F-connector port

RJ11/12 port*RJ45 port*

PoE port*

Use for cable location identification mapping.

Set Nos. 1–5 included with VDV500-851,

setNos. 1–18 included with VDV501-852 and

sold separately.

LanMap™

Location ID Remote**

VDV526-055

RJ45

connector

**Cannot be used to perform wire map or

cable length tests.

*The RJ jacks share internal connections, so only one RJ cable can be connected at a time for accurate cable

test results. However, an RJ cable and a coax cable may be connected at the same time. In ID mode, all

connectors on the VDV Scout

Pro 3 may be connected at the same time.

CONNECTORS

Barrel Connector

VDV814-609

Female-to-female F-connector

Use with F-connector port

CoaxMap™

Location ID Remote**

VDV512-056

F-connector
