Seite 1/2
yellobrik
®
Quick
Reference
yellobrik
®
LYNX
Technik
AG
|
www.lynx-technik.com
Note: Fiber SFP are optional equipment and not included with the base module.

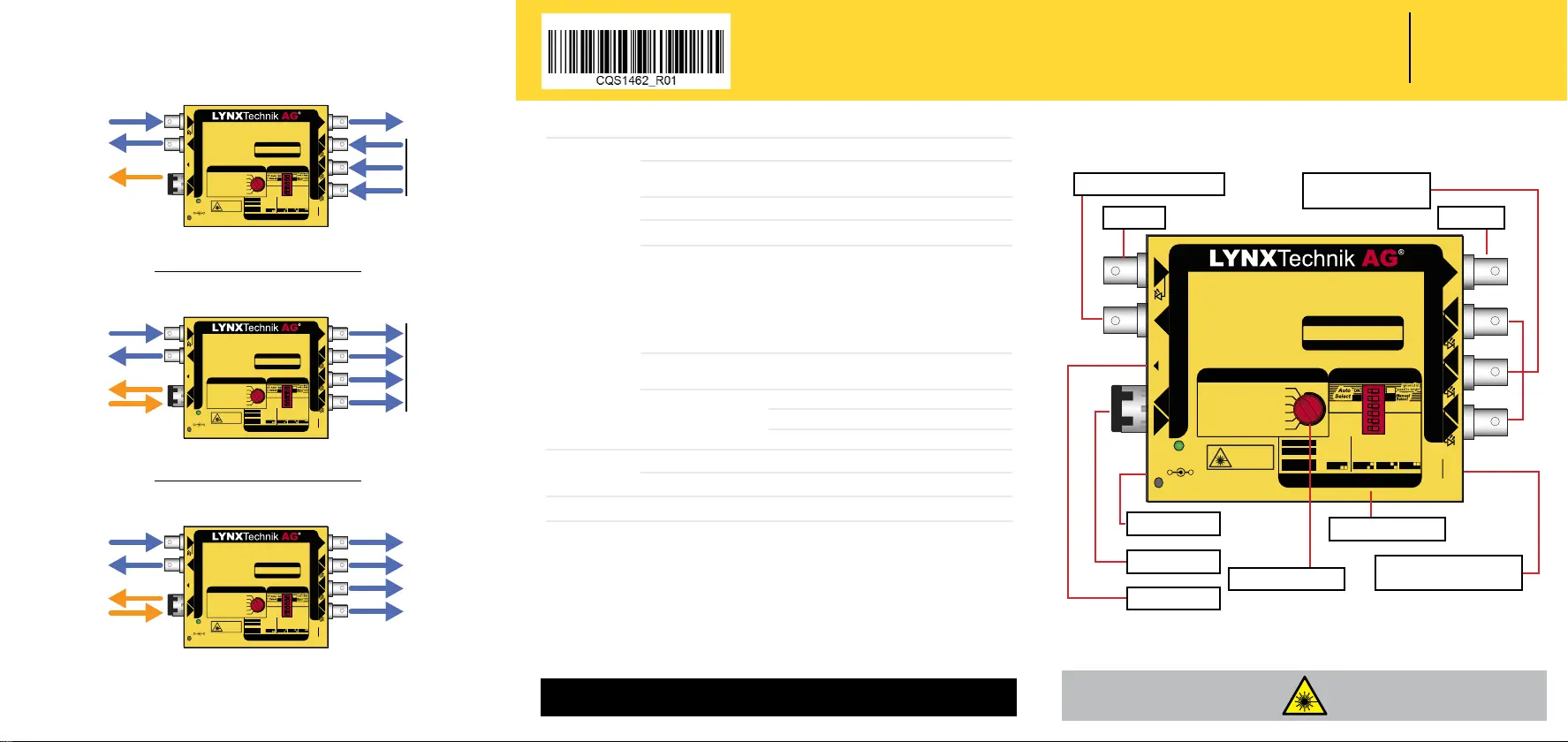

CQS 1462
Bidirectional 2SI / SQD Quad Link to 12G Single Link Converter
SDI Loop/ Out 5
Power
SFP Cage
Reset
SDI In / Out 2 - 4
(congured automatically)
USB Connection
(for LynxCentraal & yelloGUI)Operation Modes
Link Loss Settings
SDI In 1 SDI Out 1
Input Settings
USB
PC Control
Reset
12G 2SI/SQD
Quad/Single
Link Converter
yellobrik
®
In1
Out 1
In/Out 2
In/Out 3In/Out 4
Loop /
Out 5
SFP
Link
Loss
Reply
ON OFF
Link
Indication
ON OFF
ON OFF
Mode
2SI
2SI/SQD
Operation
Link
Replacement
Black
(Full Picture)
Black
(Missing Link)
Output
Down
CQS 1462
Single Link to Quad Link (2SI)
Single Link to Quad Link (SQD)
Quad Link (2SI) to Single Link
Quad Link (SQD) to Single Link
Quad Link (Auto) to Single Link
Distribution Mode
WARNING
CLASS 1
Laser Product
Power +
Prog.Settings
0V
12V
⎓
+
–
Link Loss Settings
(Quad to Single Link)
Operation Mode
SFP
OFF
BNC
Bit Switch Set
6
On
Off
1 6 1 6 1 6 1
We are constantly adding more yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
Technical Specications
SDI I/O
1 x dedicated SDI video input on BNC connector
2 x dedicated SDI video output on BNC connector
(1 x Loop/Processed output)
3 x switchable SDI video in-/outputs on BNC connector
SMPTE 292M, SMPTE 424M, SMPTE 2081-1, SMPTE 2082-1
Multi-standard operation from 1.5G to 12G
720p
(23.98/24/25/29.97/30/50/59.94/60 Hz)*
1080psf
(23.98/24/25/29.97/30 Hz)*
1080i
(50/59.94/60 Hz)*
1080p
(23.98*/24*/25*/29.97*/30*/50/59.94/60 Hz)
2160p
(23.98/24/25/29.97/30/50/59.94/60 Hz)
Electrical Return Loss
to 1.5GHz
>15dB
to 3GHz
>10dB
to 6GHz
>7dB
to 12GHz
>4dB
Automatic cable EQ
1.5Gbit/s 3Gbit/s 6Gbit/s 12Gbit/s
200m 150m 90m 85m
Belden 1694A Belden 4794R
Fiber I/O
1 x ber optic input and output ( optional, see table )
SMPTE 297M - 2006
Power
+12VDC @ 13.24W nominal (incl. SFP) - ( 7-24VDC input range )
* Only supported in Distribution Mode
4K Quad Link 2SI/SQD to 12G SDI Conversion
12G SDI to 4K Quad Conversion
Distribution Mode 1 ► 5+1
Quad Link
Input 2-4
Quad Link
Output 1-4
Output 1-4
Quad Link
Input 1
Single Link
Output 5
Single Link
Input 1
Input 1
Single Link
Output 1
Single Link
Loop
Output 5
Single Link SFP
Output
Single Link SFP
Input / Loop
Output
SFP In/Output
Application Examples
Input Settings
USB
PC Control
Reset
12G 2SI/SQD
Quad/Single
Link Converter
yellobrik
®
In1
Out 1
In/Out 2
In/Out 3In/Out 4
Loop /
Out 5
SFP
Link
Loss
Reply
ON OFF
Link
Indication
ON OFF
ON OFF
Mode
2SI
2SI/SQD
Operation
Link
Replacement
Black
(Full Picture)
Black
(Missing Link)
Output
Down
CQS 1462
Single Link to Quad Link (2SI)
Single Link to Quad Link (SQD)
Quad Link (2SI) to Single Link
Quad Link (SQD) to Single Link
Quad Link (Auto) to Single Link
Distribution Mode
WARNING
CLASS 1
Laser Product
Power +
Prog.Settings
0V
12V
⎓
+
–
Link Loss Settings
(Quad to Single Link)
Operation Mode
SFP
OFF
BNC
Bit Switch Set
6
On
Off
1 6 1 6 1 6 1
Input Settings
USB
PC Control
Reset
12G 2SI/SQD
Quad/Single
Link Converter
yellobrik
®
In1
Out 1
In/Out 2
In/Out 3In/Out 4
Loop /
Out 5
SFP
Link
Loss
Reply
ON OFF
Link
Indication
ON OFF
ON OFF
Mode
2SI
2SI/SQD
Operation
Link
Replacement
Black
(Full Picture)
Black
(Missing Link)
Output
Down
CQS 1462
Single Link to Quad Link (2SI)
Single Link to Quad Link (SQD)
Quad Link (2SI) to Single Link
Quad Link (SQD) to Single Link
Quad Link (Auto) to Single Link
Distribution Mode
WARNING
CLASS 1
Laser Product
Power +
Prog.Settings
0V
12V
⎓
+
–
Link Loss Settings
(Quad to Single Link)
Operation Mode
SFP
OFF
BNC
Bit Switch Set
6
On
Off
1 6 1 6 1 6 1
Input Settings
USB
PC Control
Reset
12G 2SI/SQD
Quad/Single
Link Converter
yellobrik
®
In1
Out 1
In/Out 2
In/Out 3In/Out 4
Loop /
Out 5
SFP
Link
Loss
Reply
ON OFF
Link
Indication
ON OFF
ON OFF
Mode
2SI
2SI/SQD
Operation
Link
Replacement
Black
(Full Picture)
Black
(Missing Link)
Output
Down
CQS 1462
Single Link to Quad Link (2SI)
Single Link to Quad Link (SQD)
Quad Link (2SI) to Single Link
Quad Link (SQD) to Single Link
Quad Link (Auto) to Single Link
Distribution Mode
WARNING
CLASS 1
Laser Product
Power +
Prog.Settings
0V
12V
⎓
+
–
Link Loss Settings
(Quad to Single Link)
Operation Mode
SFP
OFF
BNC
Bit Switch Set
6
On
Off
1 6 1 6 1 6 1
Quad Link 2SI / SQD ► Single Link Converter
Single Link ► Quad Link 2SI / SQD Converter
1x Single Link Input ► 5x Single Link Output + 1x Fiber SFP
Laser Radiation
Do not look directly into emitter
with optical instruments
WARNING
CLASS 1M LASER PRODUCT

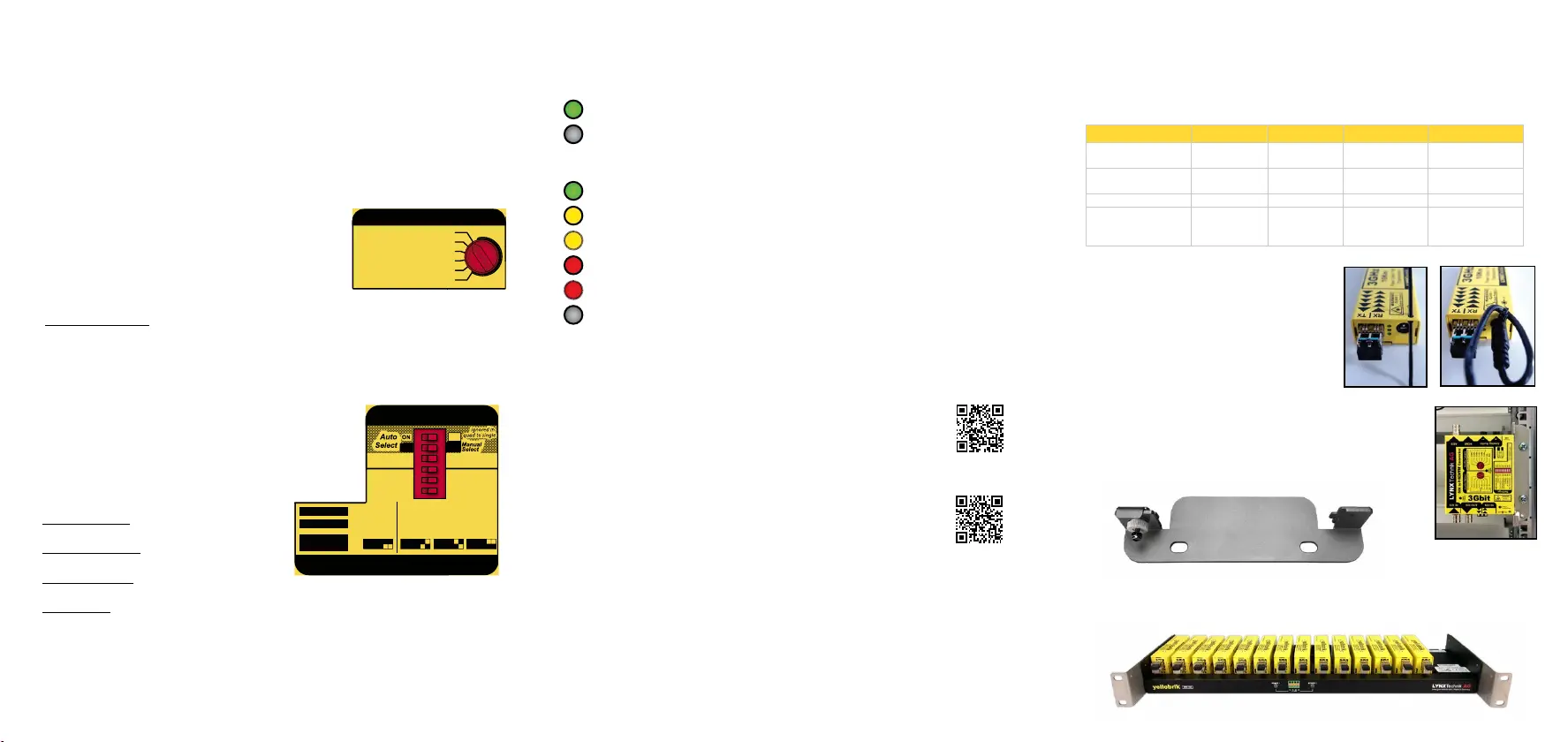

The module has several LEDs included to indicate status:
SDI Present LED (electrical and ber input have individual LEDs)
Green Valid SDI signal
O No valid or missing SDI signal
Power / Prog Setting LED
Green Power OK and no internal programmed settings are present
Yellow Power OK and control software exclusive settings are not at factory default*
Yellow
(blinking)
“Locate” functionality enabled via control software to identify physical module
Red Power OK and physical settings are overwritten by software settings
Red
(blinking)
Hardware malfunction ( Fan Error, Overheating, etc.)
O Power not present
* The module can be reset to factory defaults by using the reset switch
The USB connection on the module is for rmware updates and
control via the Lynx Centraal or yelloGUI software applications.
Please register to connect to our update server [Database settings
> Registration] and you will receive the latest rmware updates
automatically. Check in the “update” section on Lynx Centraal or
look for the red update ag in yelloGUI.
Firmware updates and our control software are free of
charge.
yelloGUI
L
YNX | Centraal
™
Connections Module LEDs
Central Control Interface via USB
This module has six BNC connectors and one SFP cage. One for dedicated input,
one for dedicated output, one for loop or dedicated output, and three switchable
in/outputs.
The optical port (SFP slot) can be used for transceiver SFPs (i.e. OH-TR-12G-LC) as
well as single Transmitter or Receiver SFPs.
Operation Modes
Operation Modes
Operation Mode settings can be changed on the device itself or in our control
software.
• 6G/12G SDI Single Link ►4 x 1.5G/3G SDI Quad Link (2SI)
• 6G/12G SDI Single Link ► 4 x 1.5G/3G Quad Link (SQD)
• 4 x 1.5G/3G SDI Quad Link (2SI) ► 6G/12G SDI Single Link
• 4 x 1.5G/3G SDI Quad Link (SQD) ► 6G/12G SDI Single Link
• Auto Quad Link to Single Link
• Distribution mode
In Distribution Mode the CQS 1462 can be used for distributing SDI signals from
Input 1 (BNC/SFP) to the ve Outputs (BNC) as well as the ber Output (SFP).
Following Input Settings are available:
• Auto Select: Switch Automatic and Manual Selection of input
sources ( Ignored in quad to single modes )
• Link Indication: Add numbered overlay for outputs to
indicate link source.
• Link Loss Reply: Choose how to respond to missing links.
» Mode shows in which modes support which Operations.
» Operations are:
Link Replacement (only 2SI output) duplicates
input link 1 to preserve image brightness.
Black “Missing Link“ replace missing link with
frame black (reduces the image brightness).
Black “Full Picture” output full frame black image
if a single link is lost.
Output Down turns o the output entirely ( no SDI output signal ).
» Bit Switch Settings visualizes how to set the DIP switches.
Power
The module requires a 12V DC power input and the LED conrms when power
is connected. A power supply is provided, however, if you use your own power
supply, please provide a clean 12V DC power source(or between 7 and 24V DC).
Input Settings
USB
PC Control
Reset
12G 2SI/SQD
Quad/Single
Link Converter
yellobrik
®
In1
Out 1
In/Out 2
In/Out 3In/Out 4
Loop /
Out 5
SFP
Link
Loss
Reply
ON OFF
Link
Indication
ON OFF
ON OFF
Mode
2SI
2SI/SQD
Operation
Link
Replacement
Black
(Full Picture)
Black
(Missing Link)
Output
Down
CQS 1462
Single Link to Quad Link (2SI)
Single Link to Quad Link (SQD)
Quad Link (2SI) to Single Link
Quad Link (SQD) to Single Link
Quad Link (Auto) to Single Link
Distribution Mode
WARNING
CLASS 1
Laser Product
Power +
Prog.Settings
0V
12V
⎓
+
–
Link Loss Settings
(Quad to Single Link)
Operation Mode
SFP
OFF
BNC
Bit Switch Set
6
On
Off
1 6 1 6 1 6 1
Power Lead Strain Relief
Fiber I/O Options
The module (dierent module shown here)
has a small hole in the case located above the
power connection. This prevents the power
lead from being accidentally pulled out. Use
the supplied tie-wrap and secure the lead, as
shown below.
Mounting Solutions
The optional RFR 1001 mounting bracket can be used to
permanently mount the module on any surface or on 19” rack
rails.
The optional RFR 1200 rack mount can be used to mount up to 14 yellobrik
modules permanently. In addition, the RFR 1200 can provide full power
redundancy for all mounted yellobriks.
The optional ber I/O SFP modules plug into the side of the yellobrik and are
ideal to bridge longer distances. We oer Singlemode CWDM versions (in 18
dierent wavelengths according to ITU-T G694.2), as well as Singlemode. This
module can use TR (Transceiver), TX (Transmitter), RX (Receiver) SFPs.
Option # Wavelength TX Power RX Sensitivity Max Distance
OH-TR-12G-LC 1310 nm -5 ... +0.5dBm
6 - 12G: -10dBm
1.5 - 3G: -14dBm
10km (6.2miles)*
OH-TR-12G-XXXX-LC 1270 - 1610nm -2 ... +3dBm
6 - 12G: -10dBm
1.5 - 3G: -14dBm
10km (6.2miles)*
OH-TX-12G-LC 1310nm -5 ... +0.5dBm - 10km (6.2miles)*
OH-RX-12G-LC 1310nm -
6 - 12G: -10dBm
3G: -14dBm
1.5G:-16dBm
10km (6.2miles)*
Input Settings
USB
PC Control
Reset
12G 2SI/SQD
Quad/Single
Link Converter
yellobrik
®
In1
Out 1
In/Out 2
In/Out 3In/Out 4
Loop /
Out 5
SFP
Link
Loss
Reply
ON OFF
Link
Indication
ON OFF
ON OFF
Mode
2SI
2SI/SQD
Operation
Link
Replacement
Black
(Full Picture)
Black
(Missing Link)
Output
Down
CQS 1462
Single Link to Quad Link (2SI)
Single Link to Quad Link (SQD)
Quad Link (2SI) to Single Link
Quad Link (SQD) to Single Link
Quad Link (Auto) to Single Link
Distribution Mode
WARNING
CLASS 1
Laser Product
Power +
Prog.Settings
0V
12V
⎓
+
–
Link Loss Settings
(Quad to Single Link)
Operation Mode
SFP
OFF
BNC
Bit Switch Set
6
On
Off
1 6 1 6 1 6 1
Produktspezifikationen
| Marke: | Lynx Technik |
| Kategorie: | Audio/Video-Konverter |
| Modell: | Yellowbrik CQS 1462 |
Brauchst du Hilfe?
Wenn Sie Hilfe mit Lynx Technik Yellowbrik CQS 1462 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung Audio/Video-Konverter Lynx Technik
9 September 2025
24 August 2025
Bedienungsanleitung Audio/Video-Konverter
- AMX
- Megasat
- MuxLab
- Nedis
- Yamaha
- Televes
- König
- Vivanco
- HELGI
- I-Tec
- Gefen
- Marmitek
- Intellinet
- Cudy
- TRENDnet
Neueste Bedienungsanleitung für -Kategorien-
8 September 2025
7 September 2025
6 September 2025
5 September 2025
4 September 2025
4 September 2025
4 September 2025
4 September 2025
3 September 2025
3 September 2025
