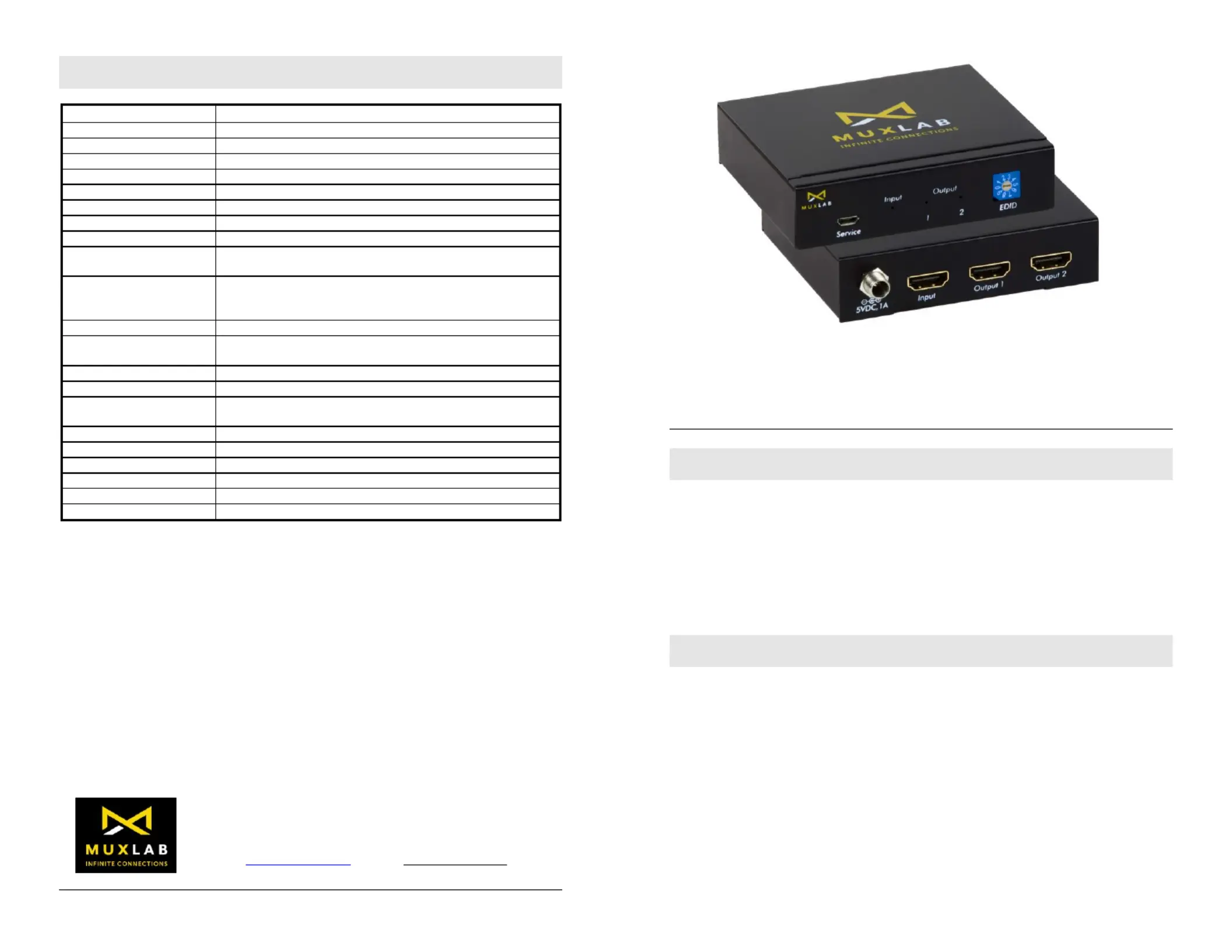

Specications

Environment

HDMI 2.0a

Devices

Ultra HD -Ray, projectors, monitors, TV, PC, laptops. Blu

Transmission

Transparent to the user.

Video Bandwidth

18 Gbps

Frequency Range

25 to 600 MHz

Signals

HDMI 2.0a protocol.

HDCP

Revision 1.4 & 2.2 compliant.

Connectors

HDMI receptacle.

Rotary Switch

For setting the EDID to be sent to the source

LEDs

Power: Blue

Input & Output Link: Blue

Resolution

480i to 1080p @ 50/60 FPS

1080p @ 24/50/60 FPS

3840 X 2160 @ 24/25/30/60 FPS

Color

8, 10 & 12 bit

Aud io

LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master

Audio and DTS:X

Cable

HDMI cable of appropriate length for video resolution selected.

Power Supply

One (1) 110-240V/5VDC , 1A power supply

Temperature

Operating: 0° to 40°C Storage: -20° to 60°C

Humidity: up to 90% non-condensing

Enclosure

Metal enclosure

Dimensions

3.74” x 3.27” x 0.95” (95 mm x 83 mm x 24 mm)

Weight

0.87 lbs (0.33 Kg)

Compliance

Regulatory: FCC, CE, RoHS

Warranty

1 year

Order Information

1505 1X2 HDMI Splitter, 4K/60 00

1X2 HDMI Splitter (1505) , /604K00

Quick Installation Guide

Overview

The HDMI 1x2 Splitter (1505) allows one (1) HDMI source to be distributed to 00

up to two (2) HDMI displays. The splitter supports up to 4K (3840 X 2160) video

and HD audio. e splitter is HDCP 1.4 & 2.2 compliant, supports EDID Th

management and features LED diagnostics. Additionally, all connectors are on the

rear panel for neater cabling. Applications include; commercial and residential AV

systems, classroom projector systems, digital signage, boardroom systems,

collaborative PC systems, medical information systems.

Pre-Installation Check

Identify the connectors as indicated on the product diagram above. LEDs are

located on the front and the connectors and mode switch on the rea r.
