CLEARANCE

CPU Cooler Height 160mm

PSU Clearance 270mm

GPU Clearance 420mm

E-ATX Motherboard

360mm Front radiator

280mm Front radiator

272mm

130x420x115mm

145x325mm

REAR

120

FAN

120

RAD

TOP

120

FAN

140

FAN

140

FAN

140

RAD

FRONT

120

FAN

120

RAD

Solid

Breathing

Color Cycle

Short Press to change color:

Long Press to change mode:

Press and Hold to turn o or

switch to motherboard control.

COLORS

2 SEC

MODES

SOLID

BREINATHG

RADAR

SPKLEAR

ROWAINB

PRESANLDBUTURNS D HO THDE E MOTTON TO ODSFF LE

English

1. Headphone

2. Microphone

3. USB 3.0

4. HDD LED

5. Power Button

6. Fan Control

7. Reset Button

8. RGB Control

9. D-RGB Mode

10. D-RGB Color

Francais

1. Casque

2. Microphone

3. USB 3.0

4. HDD LED

5. Bouton d’alimentation

6. Contrôle du ventilateur

7. Bouton de réinitialisation

8. RGB Contrôle

9. D-RGB Mode

10. D-RGB Couleur

Deutch

1. Kopfhörer

2. Mikrofon

3. USB 3.0

4. HDD LED

5. Ein-/Aus Schalter

6. Lüftersteurung

7. Reset-Knopf

8. RGB Steurung

9. D-RGB Modus

10. D-RGB Farbe

Espanol

1. Auricular

2. Micrófono

3. USB 3.0

4. HDD LED

5. Botón de encendido

6. Control del ventilador

7. Botón de reinicio

8. RGB Controlar

9. D-RGB Mode

10. D-RGB Color

Thank you for choosing Phanteks. Please take a moment

to carefully go through the manual. Phanteks will not

take responsibility for any damages incurred due to

incorrect installation or usage of this product.

This manual is applicable for the following products:

PH-EC400ATG

PH-EC400ATG_D

PH-EC416PTG

PH-EC416PSTG

ECLIPSE P400(S) FRONT I/OECLIPSE P400A FRONT I/O

RGB CONTROLS (P400(S) MODELS)Digital-RGB CONTROLS (P400A_D MODEL)

INTRODUCTIONINCLUDED ACCESSORIES

Eclipse P400A / Eclipse 400(S)

120 mm Case Fan

(Pre-Installed)

2.5” SSD Bracket

(Pre-Installed)

2x Thumb Screw

4x PSU Screw

12x Fan Screw

1x This Manual

6x Zip Tie22x Motherboard

+ SSD Screw

1x Motherboard

Stando

PRODUCT OVERVIEW

LIGHTING CONTROLS

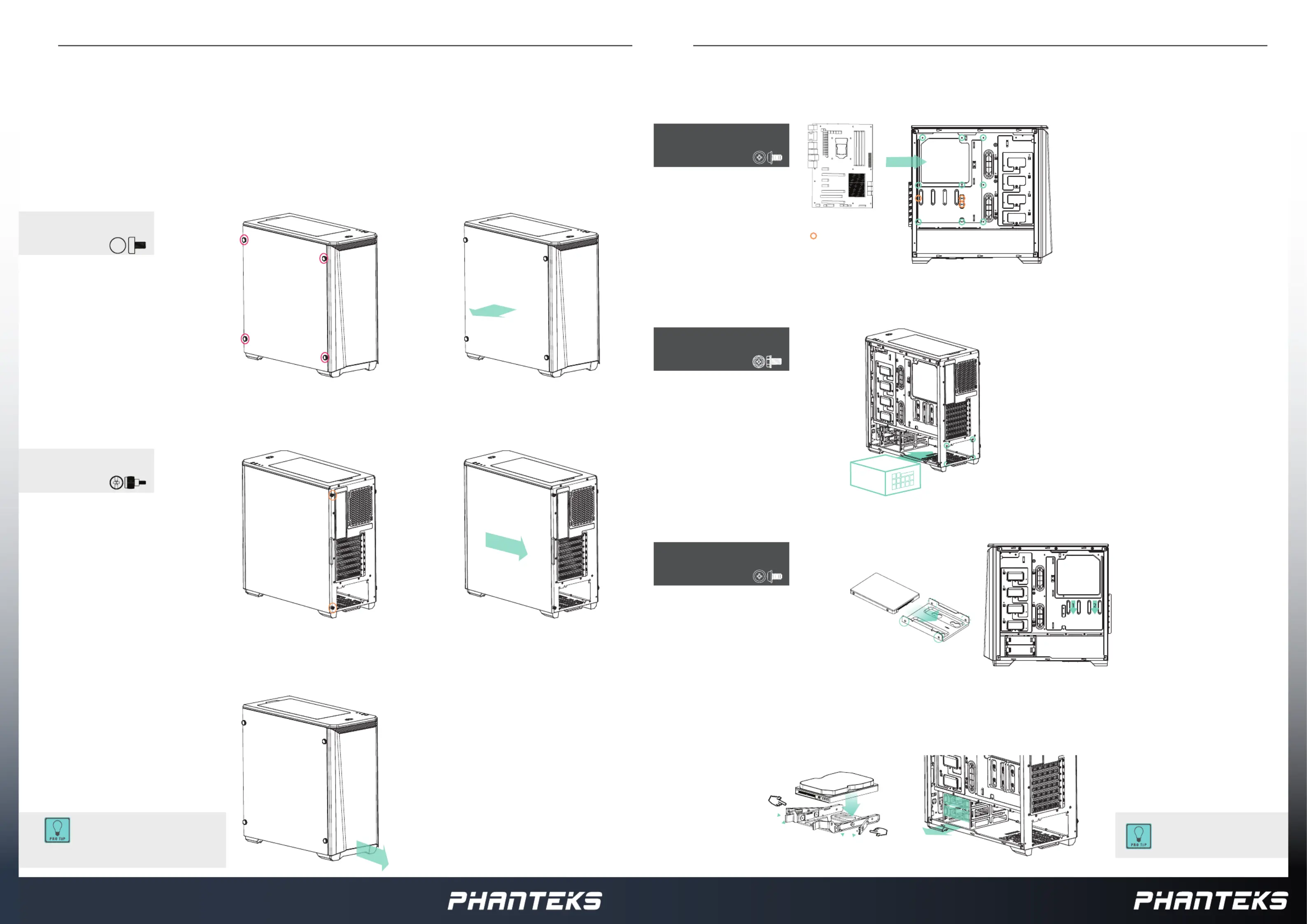

ECLIPSE P400A / P400(S)

INSTALLATION GUIDE V1.0

Press and Hold to turn o the case controller to sync

with the motherboard RGB or D-RGB software.

The 3-pin fan controller allows you to set any

connected fans to low, medium or full speed.

1. Headphone

2. Microphone

3. USB 3.0

5. Power Button

4. HDD LED

1. Headphone

2. Microphone

3. USB 3.0

5. Power Button

4. HDD LED

7. Reset Button

8. RGB Control

6. Fan Control

7. Reset Button

10. D-RGB Color

6. Fan Control

9. D-RGB Mode

P400S only

P400A_D onlyP400A_D only

P400A onlyP400A only

6. Reset Button

P400A_D only

*remove the mid-plate cover

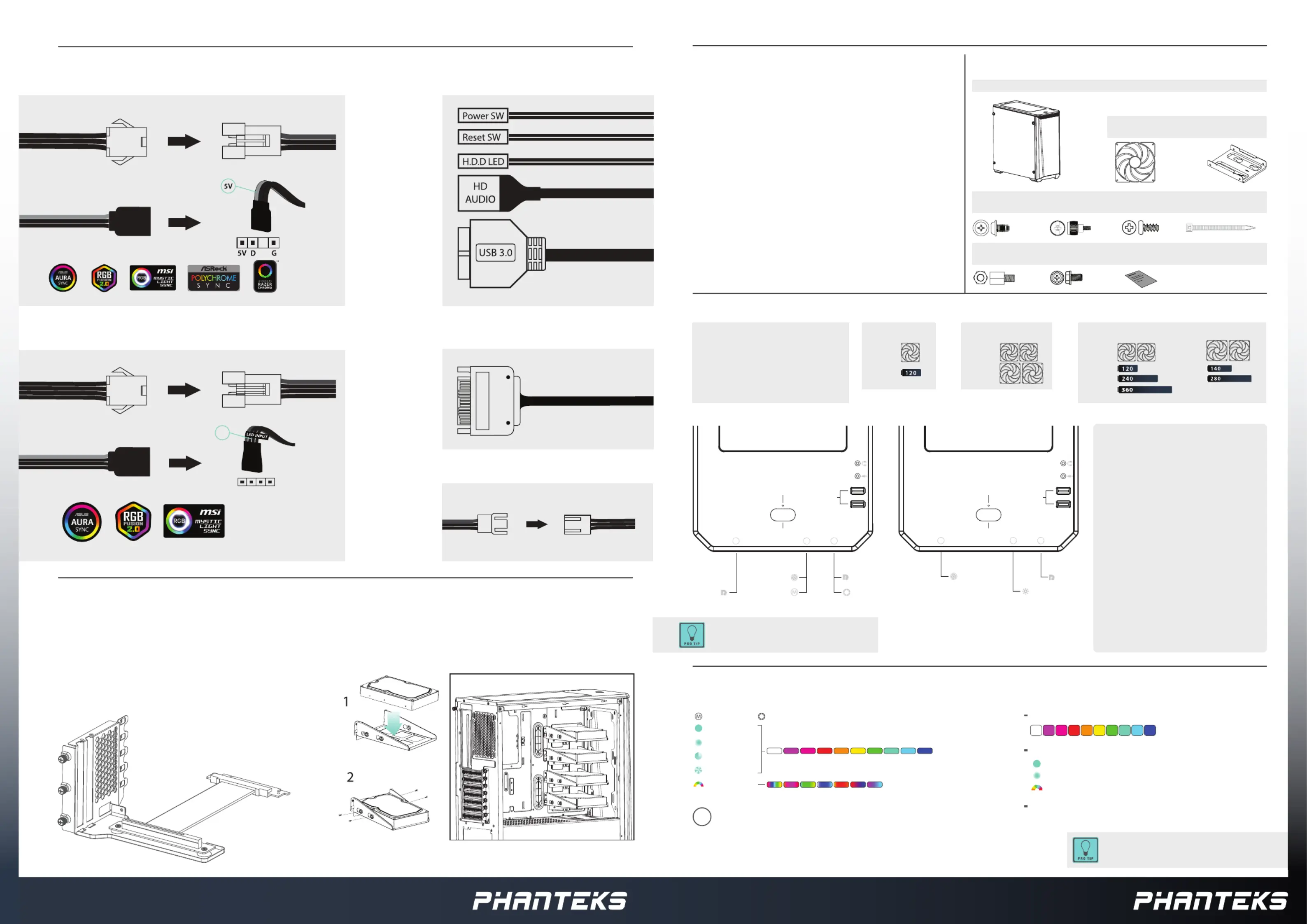

CABLE CONNECTION

OPTIONAL UPGRADES

CONNECT TO DRGB LIGHTING PRODUCTS P400A_D MODEL

CONNECT TO RGB LIGHTING PRODUCTS P400S MODELS

VERTICAL GPU BRACKET

(PH-VGPUKT-02)

MODULAR HDD BRACKET

(PH-HDDKT_02)

CONNECT TO THE MOTHERBOARD

CONNECT TO THE POWER SUPPLY

RAINBOW

ADDRESSABLEADDRESSABLE

MOTHERBOARD

D-RGB EAHDER

To M D-RGBotherboard (optional)

Compatible with:

MOTHERBOARD

RGB EAHDER

To MRGBotherboard (optional)*

12V G R B

12V

Compatible with:

SATA

CONNECT TO THE 3PIN FANS

To DIGITAL-RGBProducts

To RGBProducts

THE PHANTEKS VERTICAL GPU BRACKET CAN BE EASILY

INSTALLED IN THE REAR PCI-SLOT AREA WITHOUT

MODIFICATIONS. FOLLOW THE INSTRUCTION THAT COME

WITH THE VERTICAL GPU RACKET.

UP TO 4 ADDITIONAL HDD DRIVES CAN BE INSTALLED USING THE

MODULAR HDD BRACKET.

ECLIPSE P400A / P400(S)

INSTALLATION GUIDE V1.0

*P400S and P400A models only

To 3-PIN FAN

*Motherboard Adapter is sold separately (PH-CB_RGB4P)
