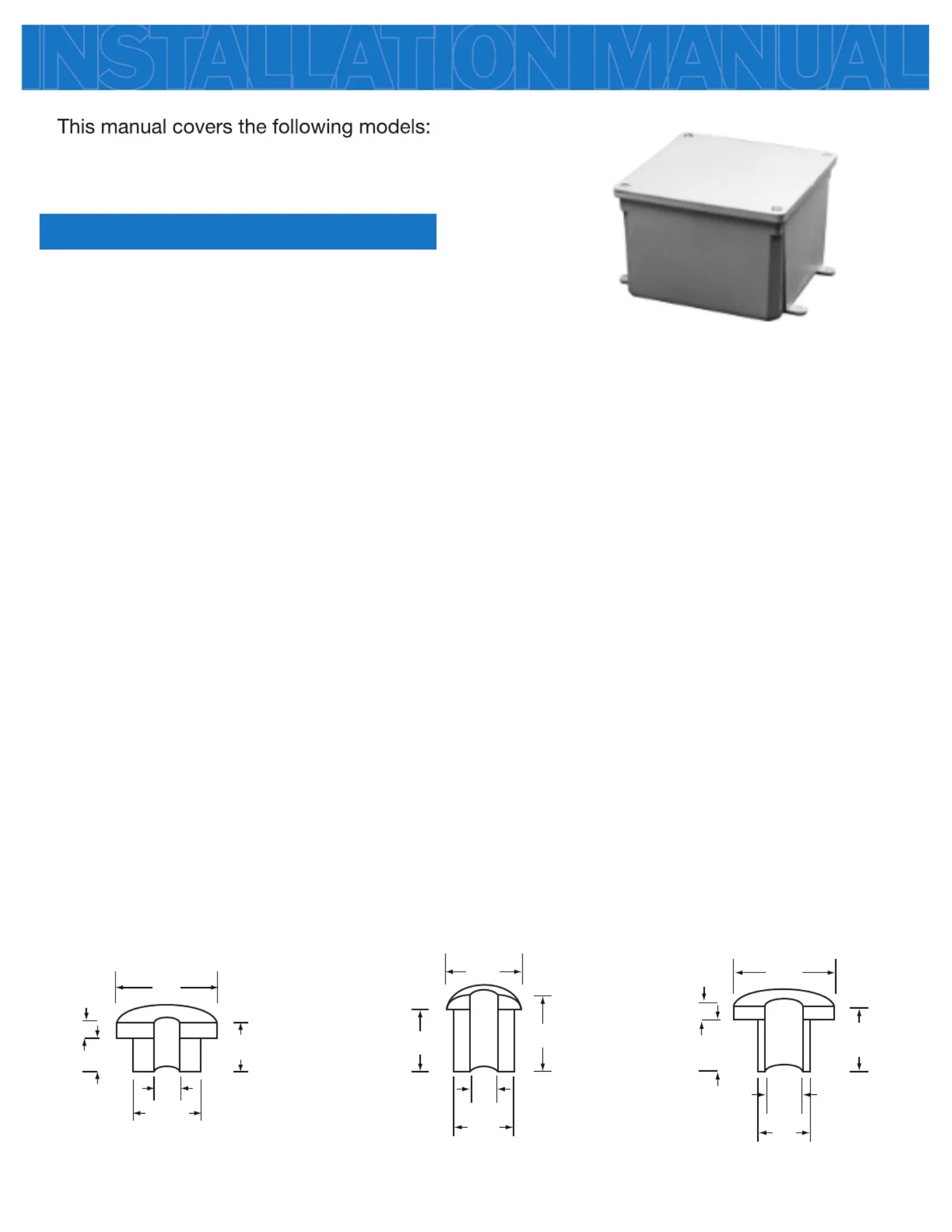

INSTALLATION MANUAL
• E219
Application Guide
The E219 is an optional a essory to WW160W (Wireless cc
Wire.) When WW160W is installed outdoors, it must be
weather protected. The E219 is a weather resistant
junction box that can be used to weather protect
WW160W.
Features:
UL Listed with a NEMA 6P rating per Section 314, exception of the National Electrical Code
Manufactured from C or PPO thermoplastic molding compound and featuring foam- PV
in-place gasket lids attached with stainless steel screws.
Dimensions (inches):
Width = 6”
Height = 6”
Depth = 4”
Includes:
4 Stainless steel screws for lid
Rubber grommets for 3, 5, or 8 wire holes
Steps to mounting WW160W in E219 Junction Box:
Mount the base plate of WW160W output module to the bottom of junction box.
Drill hole big enough for thermostat wire or rubber grommet (rubber grommet may
provide greater weather resistant seal)
Feed thermostat wire through hole and connect to appropriate terminals
(see WW160W instruction manual for wiring instructions)
Plug WW160W into subbase
Screw lid tightly onto E219
Mount or place E219 where appropriate
Optional rubber grommets
3 wire 5 wire 8 wire
3/8”
1/2”
9/
64”
1/4”
1/8”
3/4”
9/16”
1/2”
5/8”
7/16”
3/
16”
1/2”
3/8”
1/4”
3/8”
1/8”
3/4”
® U.S. Registered Trademark. Patents pending.
Copyright © 2019 All rights reserved.
Rev. 1908
