Seite 1/4

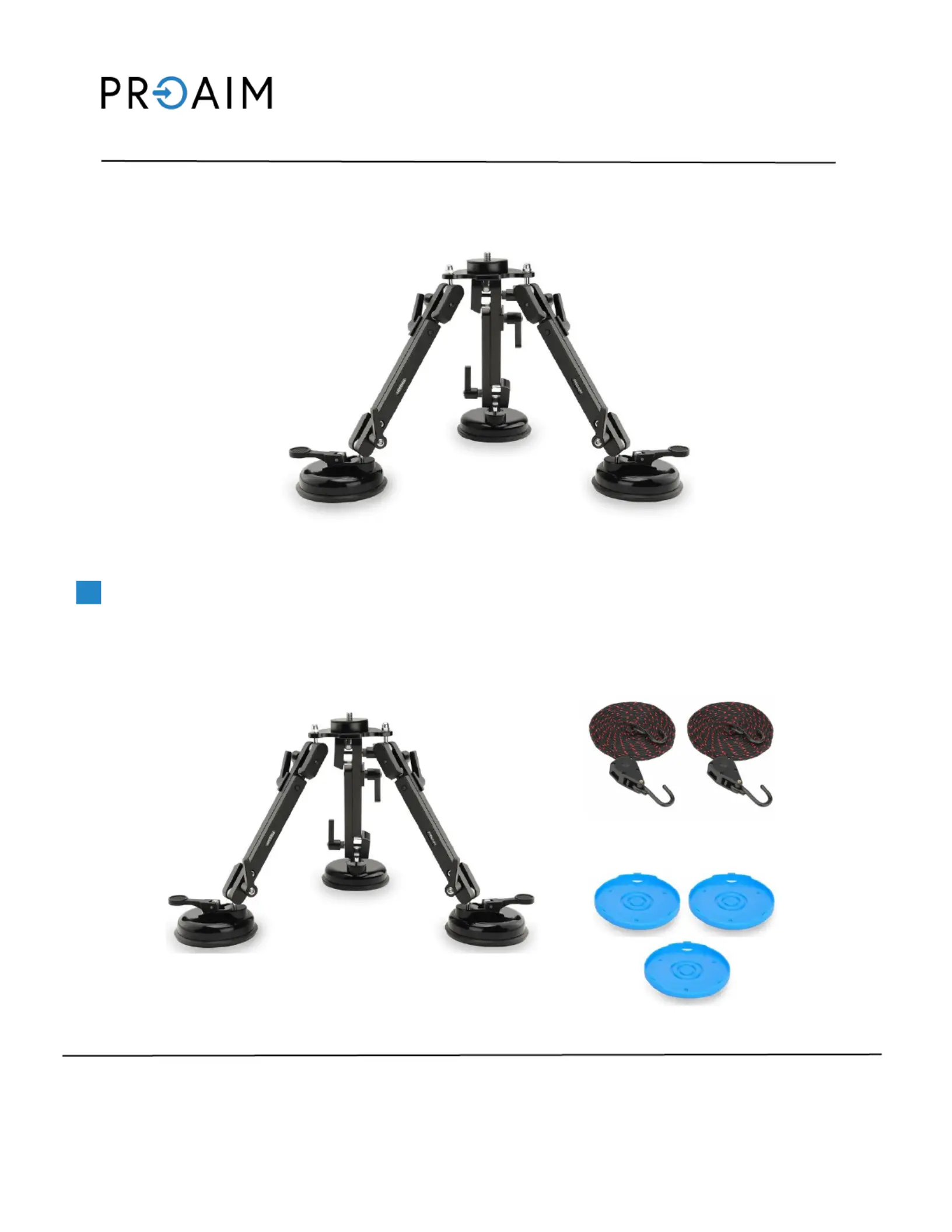

What s In The Box’
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
A s s e m b l y M a n u a l
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright
statutes or in wring by the Publisher.
Proaim Horizon Car Mount
Horizon Sucon Camera Mount for Car
(G HRZN- -01)
3 x Dust Covers
2 x Ratchet Belts
2
NOTE: To guarantee proper adhesion of
sucon cups, check that the surfaces of both
sucon cup and mounng surface are clean, dry
& dust-free. Please mount the device on smooth,
even, non porous and metal surfaces.-
Mount the Robust sucon cup gripper on a at
surface, as shown in the image.
Horizon Sucon Camera Mount Setup
Press the lever of the Robust Sucon Cup
Gripper and lock it properly.
Secure the movement of the ball joint with the
help of the Ratchet knob of the Telescopic legs.
NOTE: Three Ratchet knobs are provided in
Horizon car mount. With the help of the boom
knob, you can change the ball joint movement of
the telescopic legs.
Loosen the center Ratchet knob of the
telescopic legs.
Adjust the height of the telescopic legs
according to your requirement and Tighten
the Ratchet knob properly as shown in the
image.
Properly mount the Ball head (not included) at
the top plaorm of the Horizon car mount,
which has a 3/8" 16 camera screw, and secure -
it.
NOTE: You can set up the system in just a few
minutes. The top of the Horizon car mount has a
3/8" 16 screw to mount your camera.-
3
Unlock the lever of the ball head
(Not Included)-
You can loosen or ghten the Ratchet belt
accordingly, as shown in the picture.
Remove the camera mounng plate and
mount the camera on the (Not Included) -
Ball Head.
Hook the second side of the ratchet belt to
the car so that the setup is properly secured
with double security.
NOTE: We always recommend using ratchet
belts while using the equipment for double
safety.
Hook the Ratchet belt with the horizon
sucon mount.
NOTE: Although the horizon car mount holding
force is sucient for regular driving shots,
safety belts must be used for addional
protecon.
Your setup is ready to use.
NOTE: Test all xtures before driving .
NOTE: Horizon car mount it anywhere, whether
it's on the roof, hood, trunk, or side of a moving
vehicle. The sturdy device safely holds 40kg/88lb
for steady shots and 15kg/33lb for running
shots.
Produktspezifikationen
| Marke: | Proaim |
| Kategorie: | Stativ |
| Modell: | PRGHRZN01 |
