Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 07/20/2012

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1x 6 Port USB Hub

• 1x USB 3.0 Cable

• 1x Universal Power Adapter

• 3x Power Adapter Plug (NA/ EU/ UK)

• 1x Instruction Manual

System Requirements

• USB enabled computer system with available USB 3.0 or 2.0 port

NOTE: Host computer not required to use Charging Port

• Available AC electrical outlet for use of Charging Port

• Microsoft® Windows® XP(32/64-bit)/ Server 2003(32/64-bit)/

Vista(32/64-bit)/ Server 2008 R2/ 7(32/64-bit), Apple® Mac OS®X,

or Linux®

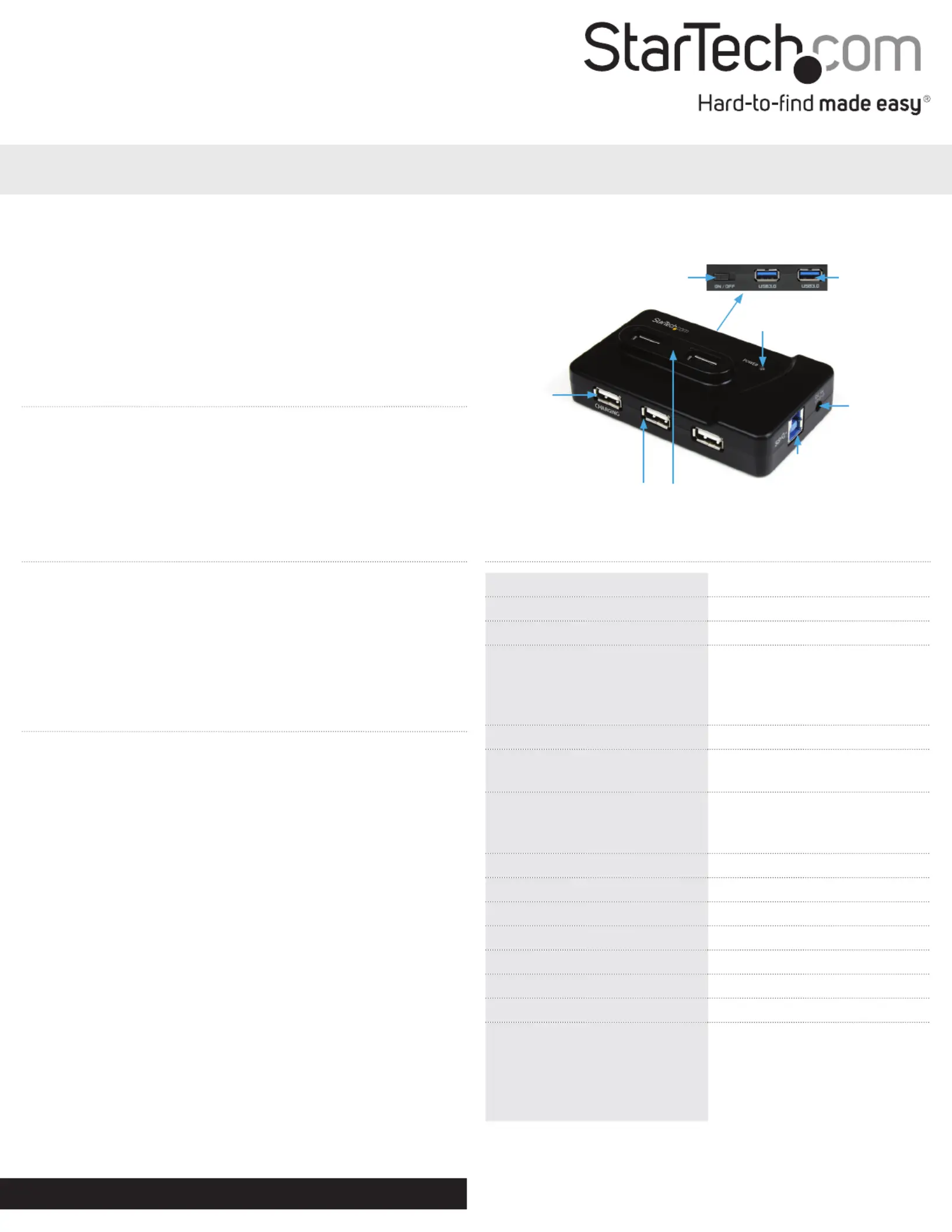

ST7320USBC

6 Port USB 3.0/2.0 Hub with Charging Port

*actual product may vary from photos

4x USB 2.0 Ports

USB 3.0 host

port

Dedicated

Charging

Port

Power LED

2x USB 3.0

Ports

Power Switch

DC Power

Connector

*Backside Image

Installation

Hardware Installation

1. Make sure the power switch along the side of the hub is set to the

“O” position.

2. Connect the included power adapter to the USB hub. NOTE:

Unless using the Charging Port, supplying external power is

optional. However to ensure each USB port is fully powered,

connecting external power is recommended. Use of the Charging

Port requires external power.

3. Connect the USB cable from the USB hub (type B port) to the host

computer system.

NOTE: If connected to a USB 2.0 host port, all ports on the hub will

only operate at USB 2.0 speeds.

4. Toggle the switch along the side of the hub to the “On” position.

5. The operating system will detect the hub immediately and

automatically install it.

6. Once installation is complete, USB 1.x/2.0/3.0 devices should

be able to be connected to the hub and recognized by the

operating system.

Driver Installation

No driver or software installation is required for the supported

operating systems.

Specications

Host Interface USB 3.0

Number of Ports 6 (2x USB 3.0/ 4x USB 2.0)

Chipset ID VIA VL810E

External Connectors

2x USB 3.0 type A Female

4x USB 2.0 type A Female

1x USB 3.0 type B Female

1x DC Power Female

LEDs 1x Power

Maximum Data Transfer Rate

USB 3.0: 5 Gbps

USB 2.0: 480Mbps

Maximum Power Output

USB 2.0: 500mA

USB 3.0: 900mA

Charging Port: 2000mA

Enclosure Material Plastic

Power Adapter 5VDC, 4000mA, center positive

Operating Temperature 0°C~85°C (32°F~185°F)

Storage Temperature -10°C~95°C (14°F~203°F)

Humidity 5%~90% RH

Dimensions (LxWxH) 99.0mm x 60.0mm x 20.0mm

Weight 75.4g

Compatible Operating

Systems

Microsoft® Windows® XP(32/64-

bit)/ Server 2003(32/64-bit)/

Vista(32/64-bit)/ Server 2008

R2/ 7(32/64-bit), Apple® Mac

OS®X, Linux®

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Produktspezifikationen

Marke:	StarTech.com
Kategorie:	USB-Hub
Modell:	ST7320USBC
Breite:	60 mm
Tiefe:	99 mm
Gewicht:	74 g
Mitgelieferte Kabel:	USB
Produktfarbe:	Schwarz
Höhe:	20 mm
Anzahl USB 2.0 Anschlüsse:	4
Gleichstrom-Anschluss (DC):	Ja
Betriebstemperatur:	0 - 85 °C
Relative Luftfeuchtigkeit in Betrieb:	5 - 90 %
Verpackungsbreite:	120 mm
Verpackungstiefe:	140 mm
Verpackungshöhe:	82 mm
Paketgewicht:	412 g
Stromverbrauch (Standardbetrieb):	20 W
Warentarifnummer (HS):	84719000
Betriebsanleitung:	Ja
Gehäusematerial:	Kunststoff
LED-Anzeigen:	Ja
Temperaturbereich bei Lagerung:	-10 - 95 °C
Stromstecker-Typ:	Typ H
Anzahl Produkte pro Versandkarton:	20 Stück(e)
Länge des Versandkartons:	435 mm
Breite des Versandkartons:	300 mm
Höhe des Versandkartons:	275 mm
Netzteiltyp:	Gleichstrom
Ausgangsstrom:	4 A
Ausgangsspannung:	5 V
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A:	2
Eingangsspannung:	100 - 240 V
Nachhaltigkeitskonformität:	Ja
Nachhaltigkeitszertifikate:	CE, RoHS
Eingangsstrom:	1.5 A
Hostschnittstelle:	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Datenübertragungsrate:	4800 Mbit/s
Anzahl Anschlüsse:	6
Hub-Schnittstellen:	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Chipsatz:	VIA/VLI - VL813
Steckertypen enthalten:	AU, EU, NA, UK
