Issue 3

1 947812

CAUTION: To reduce the risk of electric shock,

Do not remove cover.

No user serviceable parts inside.

Refer servicing to qualified service personnel.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates that dangerous

voltage constituting a risk of electric

shock is present within this unit.

This symbol indicates that there are

important operating and maintenance

instructions in the literature accompanying

this unit.

VIP-130AL

IP PoE ONE-WAY HORN

INTRODUCTION

The VIP-130AL IP PoE One-Way Horn is a self

contained paging system which enables voice

paging over an IP network. The VIP-130AL

consists of a high efficiency horn and a Network

Interface allowing stand alone capability when

used with a SIP telephone system or can be

accessed from a variety of Valcom managed

VoIP products. The VIP-130AL is available in

three colors, Beige (-BGE), Gray (-GY) and Marine

White (-W). The Marine version features additional

weather protection.

SPECIFICATIONS

Access Methods

PBX, FXO Port w/VIP-811

POTS telephone set w/VIP-811

PBX, FXS Port w/VIP-821

Valcom M Cast Page Group

SIP telephone system

Features

RJ-45 network connection

Network activity LEDs

Power over Ethernet (PoE) 802.3af compatible

O-ring seal on bell housing (Marine model

only)

Stainless steel hardware (Marine model only)

Dimensions/Weight

Horn - 7.38” H x 10.0” W x 10.4” D

(18.75cm x 25.4cm x 26.42cm)

Weight: 5.60 lbs. (2.54 kg)

Network Interface

1.62” H x 5.63” W x 3.45” D

(4.11 cm) x (14.30 cm) x (8.73 cm)

with brackets– 8.22” W (20.87 cm)

Weight: 2.10 lbs. (0.95 kg)

Nominal Power Requirements

Via 802.3af PoE Ethernet Switch: Class 3

Environment

Network Interface:

Temperature: 0 to +40° C

Humidity: 0 to 85% non-precipitating

PSE: (Power Sourcing Equipment) to be

compliant to IEEE 802.3af

Horn:

Temperature: -20 to +55° C

Humidity: 0 to 95% non-condensing

Packing List

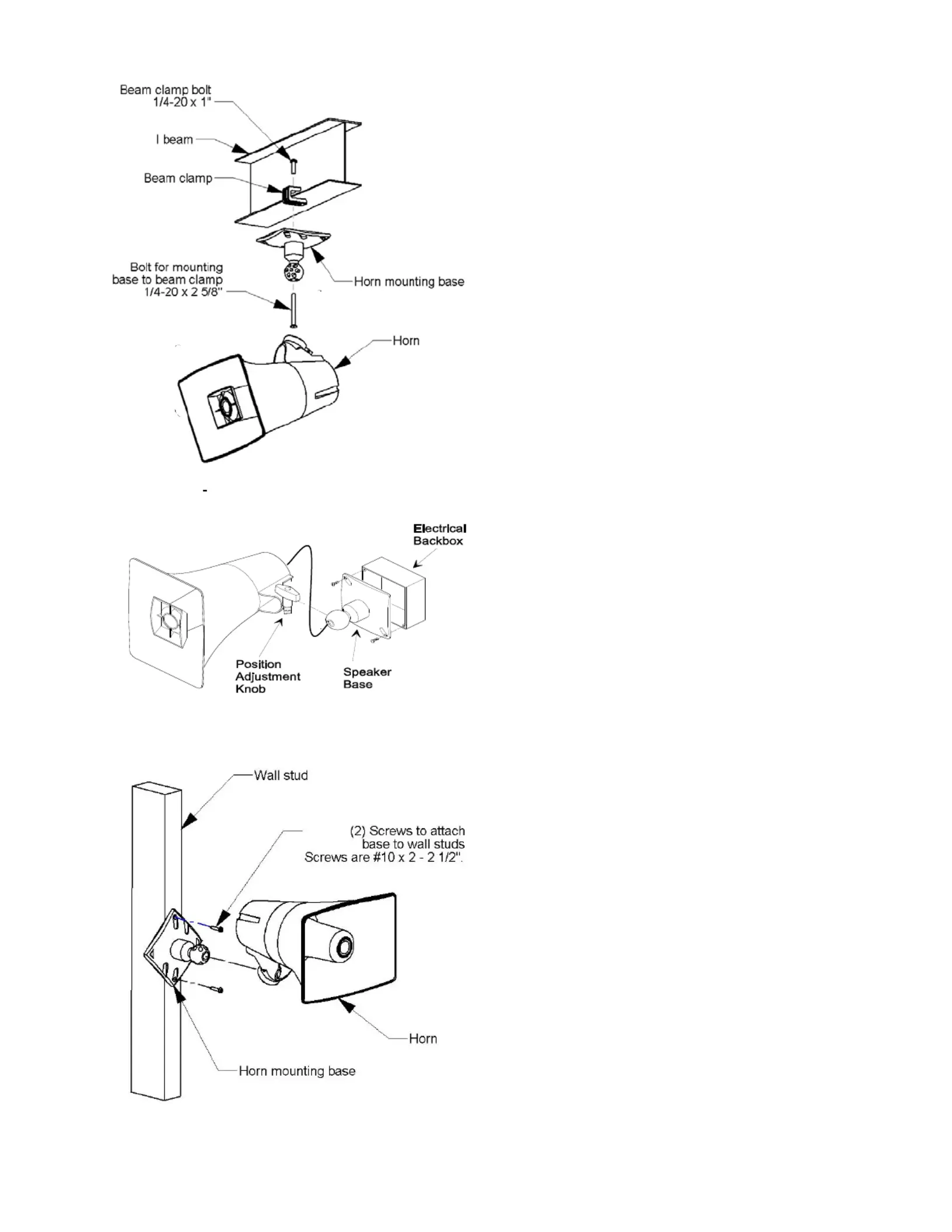

INSTALLATION

Precautionary Designations

QtyItem

1 Network Interface

1 VIP-130AL Horn

1 VSP Document
