ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

P0376

Hardware Package (included):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Mounting Screw (B)

Wire Connector (C)Bolt Nut (D)

Mounting Strap Unit (A)

Turn off the power at fuse or circuit box

Installation Steps

1. Attach the mounting strap unit (A) to the

outlet box by using two mounting screws (B).

2. Thread the stem onto the fixture.

3. Rod Connections:

a. Thread the fixture wire from the fixture through

the lower rod, then secure the lower rod onto

fixture using the threaded pipe.

b. Thread the fixture wire through the middle

rod and then secure the middle rod onto the

lower rod using the threaded pipe.

c. Thread the fixture wire through the upper rod,

then secure the upper rod onto the middle rod

using the threaded pipe.

Note: Length adjustable from

16-3/4" to 70-3/4". Use fewer

rods if shorter length is

desired.

4. Thread the fixture wire

through the canopy kit,

then secure the rod

assembly to the set

threaded pipe of the

canopy kit.

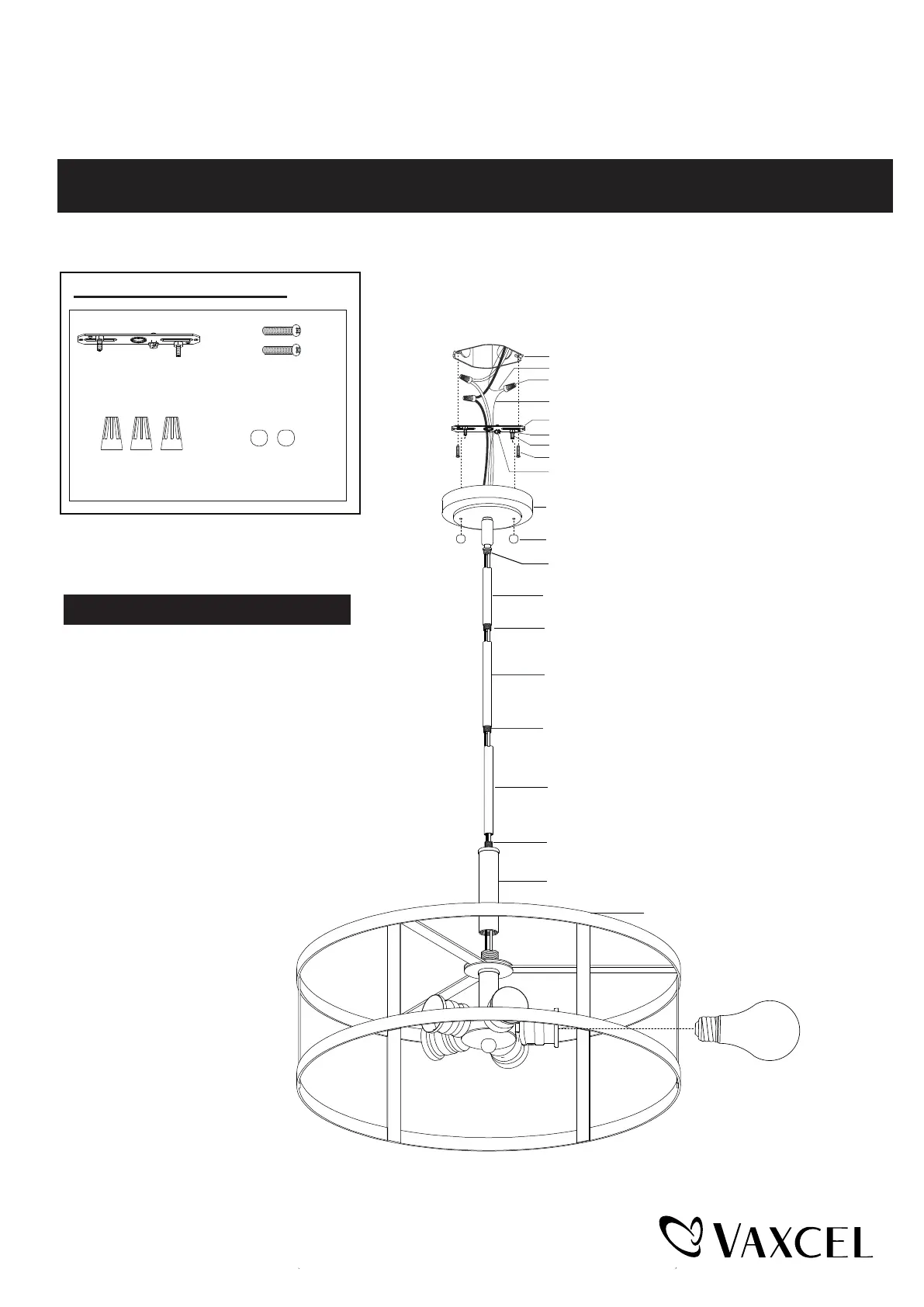

Canopy Kit

Bolt Nut (D)

Upper Rod

Threaded Pipe

Threaded Pipe

Middle Rod

Threaded Pipe

Lower Rod

Threaded Pipe

Max.60W Type A Bulb

(not included)

Stem

Fixture

Outlet Box

House Ground Wire

Fixture Mounting Screw

Mounting Strap Unit (A)

Green Ground Screw

Lock Nut

Mounting Screw (B)

Wire Connector (C)

Fixture Ground Wire
