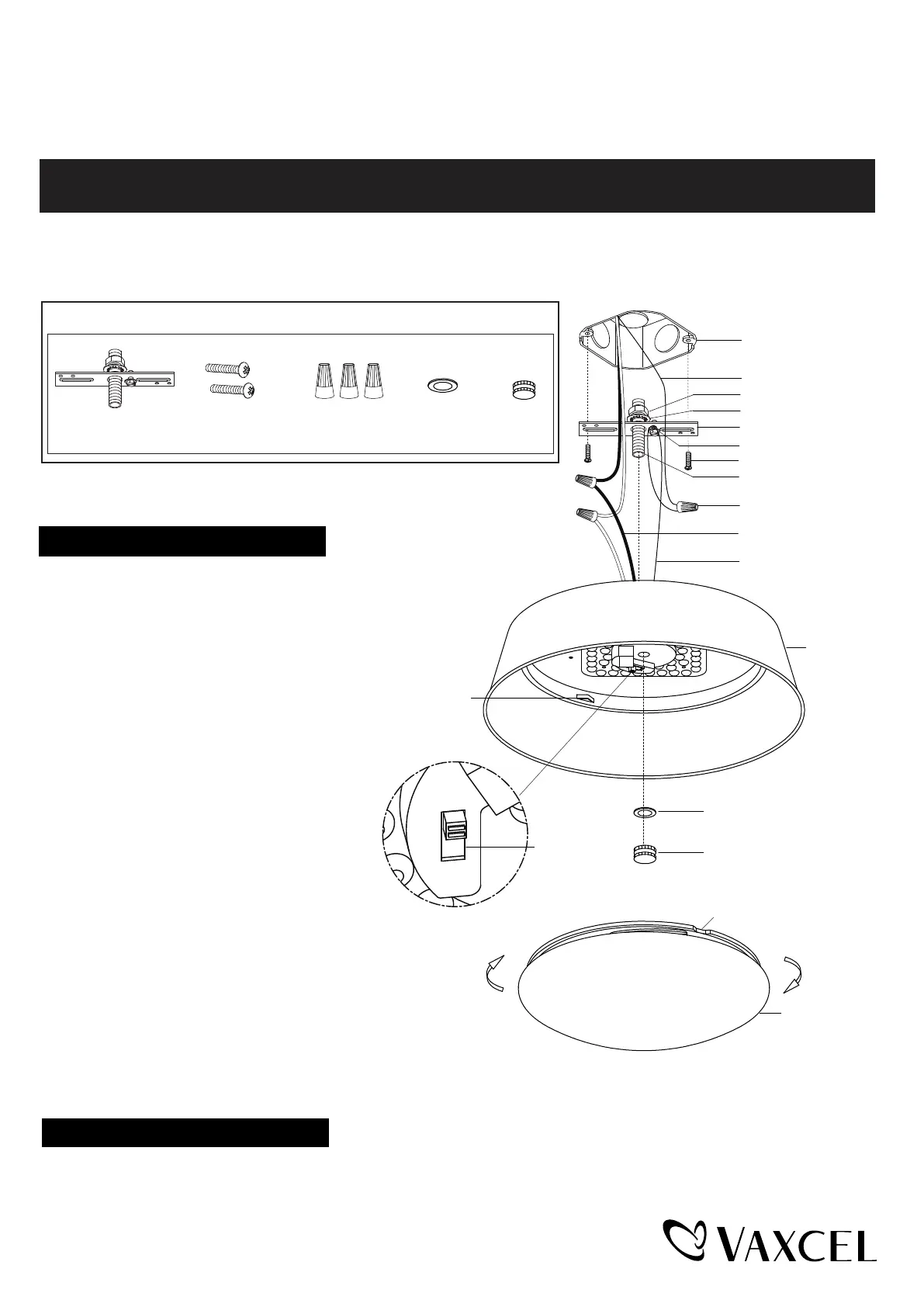

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

C0303

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read

and save these instructions.

Hardware Package (included):

Mounting Screw (B)Wire Connector (C)Rubber Pad (D)Finial (E）Mounting Strap Unit (A)

Turn off the power at fuse or circuit box.

Installation Steps

1. Attach the mounting strap unit (A) to the

outlet box by using two mounting screws (B).

Note: The depth of threaded pipe on the

mounting strap unit may need to be

adjusted to properly fit the fixture.

2. Pull out the source wires from the outlet box.

Make wire connections using wire connectors (C)

as follows:

• Connect the hot wire (black insulation) from the

fixture to the black wire from the power source.

• Connect the neutral wire (white insulation)

from the fixture to the white wire from the

power source.

• Attach the fixture ground wire (bare wire) to

the mounting strap unit (A) with the green

ground screw, then depending on local code,

connect it to the house ground wire with the

wire connector (C).

Carefully put all of the wires back into the outlet box.

3. Attach the ceiling pan to the mounting strap unit (A) by

aligning and inserting the threaded pipe from the mounting

strap unit (A) into the center hole on the ceiling pan, then

secure the ceiling pan with the rubber pad (D) and the finial (E).

4. Attach the shade to the ceiling pan by aligning studs and slots,

then turn it clockwise until it is locked in place.

Turn on the power at fuse or circuit box.

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Page 1 / 2

Mounting Screw (B)

Green Ground Screw

Wire Connector (C)

House Ground Wire

Fixture Ground Wire

Outlet Box

Fixture Wire

Threaded Pipe

Mounting Strap Unit (A)

Hex Nut

Washer

Ceiling Pan

Rubber Pad (D)

Finial (E)

Slot

Toggle Switch

Stud

Shade

3000K

4000K

5000K

231109
