PD35454/PD35459

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: Before installing, consult local electrical codes for wiring and grounding requirements.

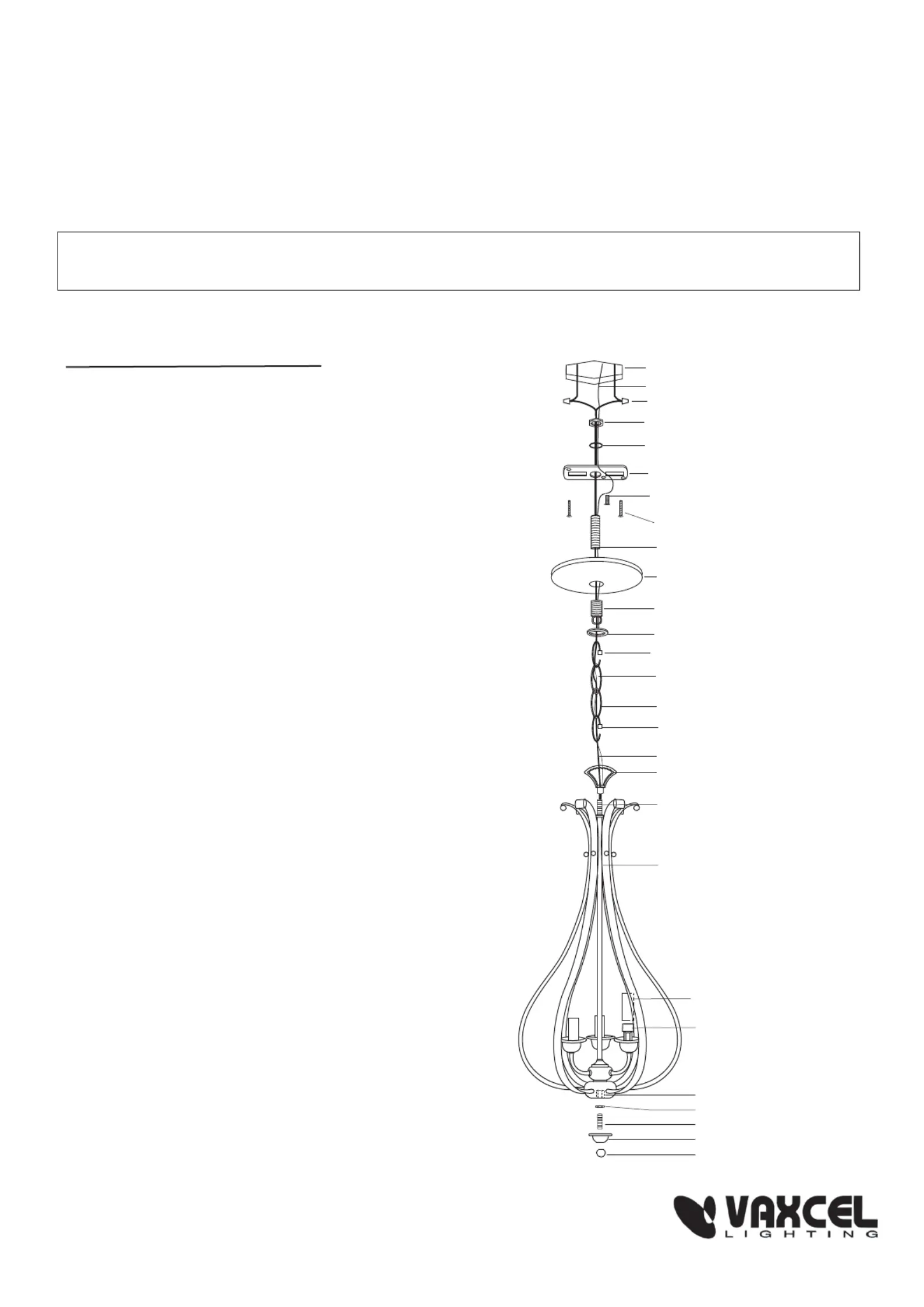

Installation Steps

Nipple-2

Fixture

Fixture Wire

Chain

Mounting Screw

Nipple-1

Grounding Wire

Collar

Top Loop

Canopy

Mounting Strap

Green Grounding Screw

Hex Nut

Wire Nut

Washer

Ceiling Box

House Grounding Wire

Loop

Loop Lock

Loop Lock

1. Attach the nipple-1 to the mounting strap, and then

secure with a washer and a hex nut.

2. Attach the mounting strap to the ceiling box by using

two mounting screws.

3. Secure the loop to the nipple-2 tightly.

4. Choose a certain length of the chain you need, and

then weave the fixture wire and the grounding wire

through the chain links. Connect one end of the chain

with the loop by using the loop lock.

5. Secure the top loop to the nipple-1.

6. Thread the fixture wire and grounding wire through

the collar, top loop, canopy, nipple-1 and mounting

strap in order.

7. Connect the other end of the chain link to the top loop by

using the loop lock.

8. Make wire connections with wire nuts:

---The smooth wire (marked) from fixture to the black

wire from power source.

---The ridged wire (unmarked) from fixture to the white

wire from power source.

---Attach the grounding wire and house grounding wire

to the mounting strap with a green grounding screw.

Carefully tuck wires back into the ceiling box.

9. Attach the canopy to the mounting strap by inserting

the top loop, and secure with the collar.

10. Screw the nipple-3 into the couple, and secure with the

hex nut. Then attach the cap upward to the fixture, and

secure with the finial.

11. Attach the candle covers to the sockets.

12.Install bulbs. (Please do not exceed the maximum

capacity which, is recommended on the package.)

13.Turn on the power at fuse or circuit box.

Candle Cover

Socket

Couple

Nipple-3

Cap

Finial

Hex Nut
