ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instructions.
H0291
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box

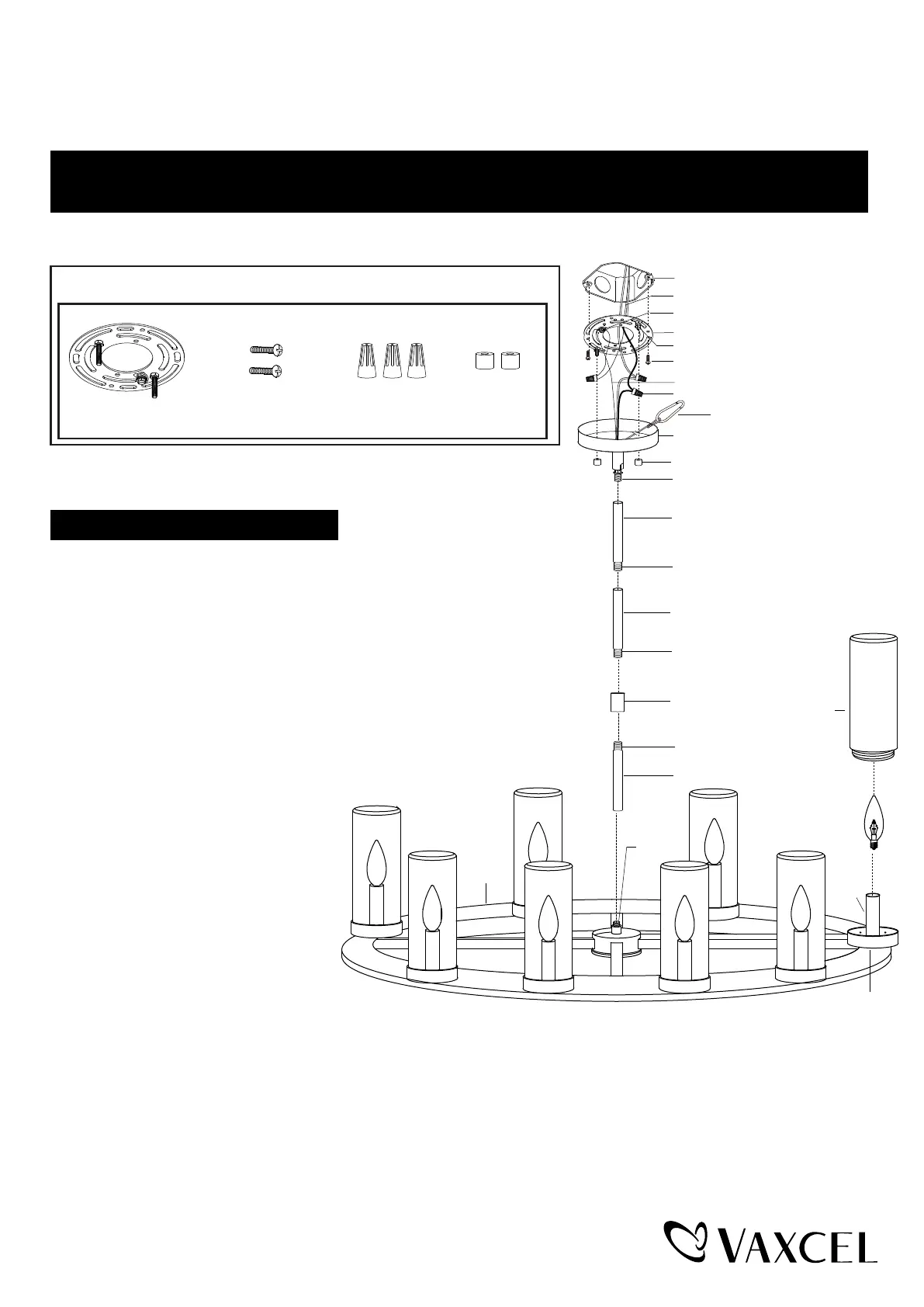

Installation Steps
1
. Unscrew the bolt nuts (D), take out the mounting plate unit (A) and
then attach to the outlet box by using two mounting screws (B).
2. Rod Connections:
a. Thread the fixture wire through the lower rod, then secure the lower rod
onto tube using the threaded pipe.
b. Thread the fixture wire through the middle rod and then secure the
middle rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod, then secure the upper
rod onto the middle rod using the threaded pipe.
Note: Length adjustable from 17-1/4" to 62-1/4". Use fewer rods
if shorter length is desired.
3. Thread the fixture wire through the
canopy kit, then secure the rod
assembly to the set threaded
pipe of the canopy kit.
4. Attach the cord clamp onto the
mounting plate unit (A).
5. Pull out the source wires from the
outlet box. Make wire connections
using wire connectors (C) as follows:
---Connect the smooth-coated wire (marked)
from the fixture to the black wire from the power source.
---Connect the ribbed-coated wire (unmarked) from the
fixture to the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with the green ground screw,
then connect it to the house ground wire with the wire connector (C).
Carefully put the wires back into the outlet box.
6. Attach the canopy kit onto the mounting plate unit (A) and tighten it with two bolt nuts (D).
Hardware Package (included):
Wire Connector (C)
Mounting Screw (B)
Mounting plate Unit (A)
Bolt Nut (D)
House Ground Wire
Fixture Ground Wire
Wire Connector (C)
Fixture Mounting Screw
Bolt Nut (D)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Outlet Box
Canopy Kit
Upper Rod
Threaded Pipe
Set Threaded Pipe
Threaded Pipe
Middle Rod
Threaded Pipe
Threaded
Pipe
Fixture
Low Rod
Middle Rod-1
Page 1 / 2
Socket
Glass Holder
Glass Shade
Max. 40W
Candelabra Base
Bulb (not included)
Cord Clamp
230628
