ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instructions.
P0411 / P0412
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box

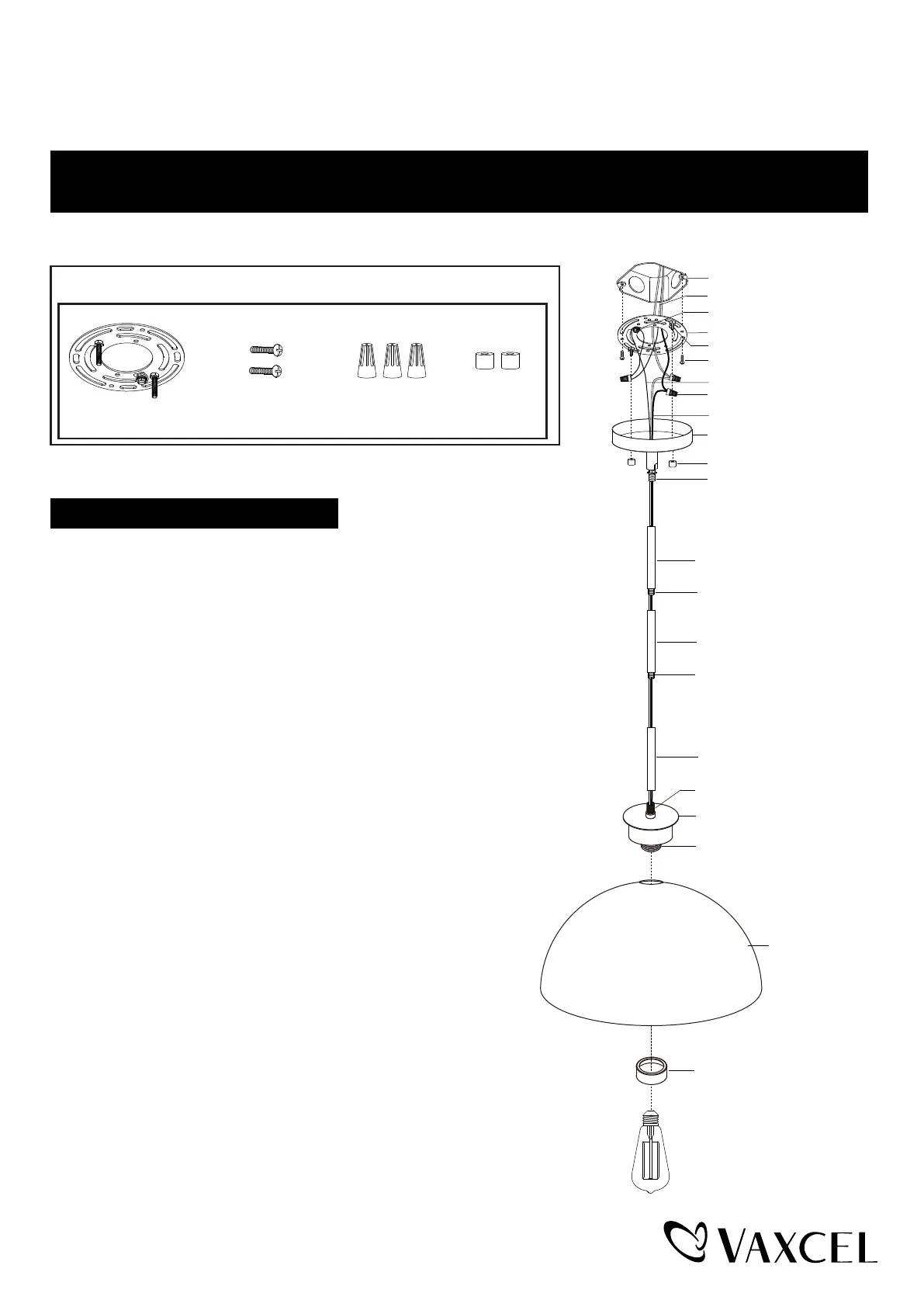

Installation Steps
1
. Unscrew the bolt nuts (D), take out the mounting plate unit (A) and then
attach to the outlet box by using two mounting screws (B).
2. Rod Connections:
a. Thread the fixture wire through the lower rod, then secure the lower rod
onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod and then secure the middle
rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod, then secure the upper rod
onto the middle rod using the threaded pipe.
Note: Length adjustable from 15-1/2" to 57-1/2". Use fewer rods if shorter
length is desired.
3. Thread the fixture wire through the canopy kit, then secure the rod assembly to
the set threaded pipe of the canopy kit.
4. Pull out the source wires from the outlet box. Make wire connections using
wire connectors (C) as follows:
---Connect the smooth-coated wire (marked) from the fixture to the black
wire from the power source.
---Connect the ribbed-coated wire (unmarked) from the fixture to the
white wire from the power source.
---Attach the fixture ground wire (bare wire) to the mounting plate
unit (A) with the green ground screw, then connect it to the
house ground wire with the wire connector (C).
Carefully put the wires back into the outlet box.
5. Attach the canopy kit to the mounting strap unit (A) by inserting the
fixture mounting screws, then secure it with two bolt nuts (D).
6. Put the metal shade into the fixture carefully, then secure it with the socket ring.
7. Install 1 x 60W Max. medium base bulb (not included). See relamping label
at socket area or packaging for maximum wattage allowed.
Hardware Package (included):
Wire Connector (C)
Mounting Screw (B)
Mounting plate Unit (A)
Bolt Nut (D)
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Bolt Nut (D)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Fixture Wire
Outlet Box
Canopy Kit
Page 1 / 2
Max. 60W Medium Base
Bulb (not included)
Socket Ring
Set Threaded Pipe
Socket
Fixture
Metal Shade
Upper Rod
Middle Rod
Threaded Pipe
Threaded Pipe
Threaded Pipe
Lower Rod
231120
