Vaxcel Drake H0292 Bedienungsanleitung
Seiten 2 Beleuchtung
Lies die Bedienungsanleitung für Vaxcel Drake H0292 kostenlos online oder lade das PDF herunter. 16 Personen fanden diese Anleitung hilfreich. Frage zu diesem Modell? Stelle eine Frage
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instruction.
H0292
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box
Installation Steps
1
. Attach the mounting plate unit (A) to the outlet box by using two
mounting screws (B).
2. Rod connections:
a. Thread the fixture wire from the fixture through the
lower rod, then secure the lower rod onto the fixture
using the threaded pipe.
b. Thread the fixture wire through the middle
rod, then secure the middle rod onto the
lower rod using the threaded pipe.
c. Thread the fixture wire through the upper
rod, then secure the upper rod onto the
middle rod using the threaded pipe.
Note: Length adjustable from 15-3/4" to
66-3/4". Use fewer rods if shorter length
is desired.
3. Thread the fixture wire through the canopy, then secure the rod assembly to the set threaded pipe of the canopy.
4. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C)
as follows:
---Connect the smooth-coated wire (marked) from the fixture to the black wire from the power source.
---Connect the ribbed-coated wire (unmarked) from the fixture to the white wire from the power source.
---Attach the fixture ground wire to the mounting plate unit (A) with the green ground screw, then
connect it to the house ground wire with a wire connector (C).
Carefully put the wires back into the outlet box.
5. Attach the canopy to the mounting plate unit (A) by inserting the fixture mounting screws, secure it with
two bolt nuts (D).
6. Install 16 x 40W max. candelabra base bulbs (not included). See relamping label at socket area or
packaging for maximum wattage allowed.

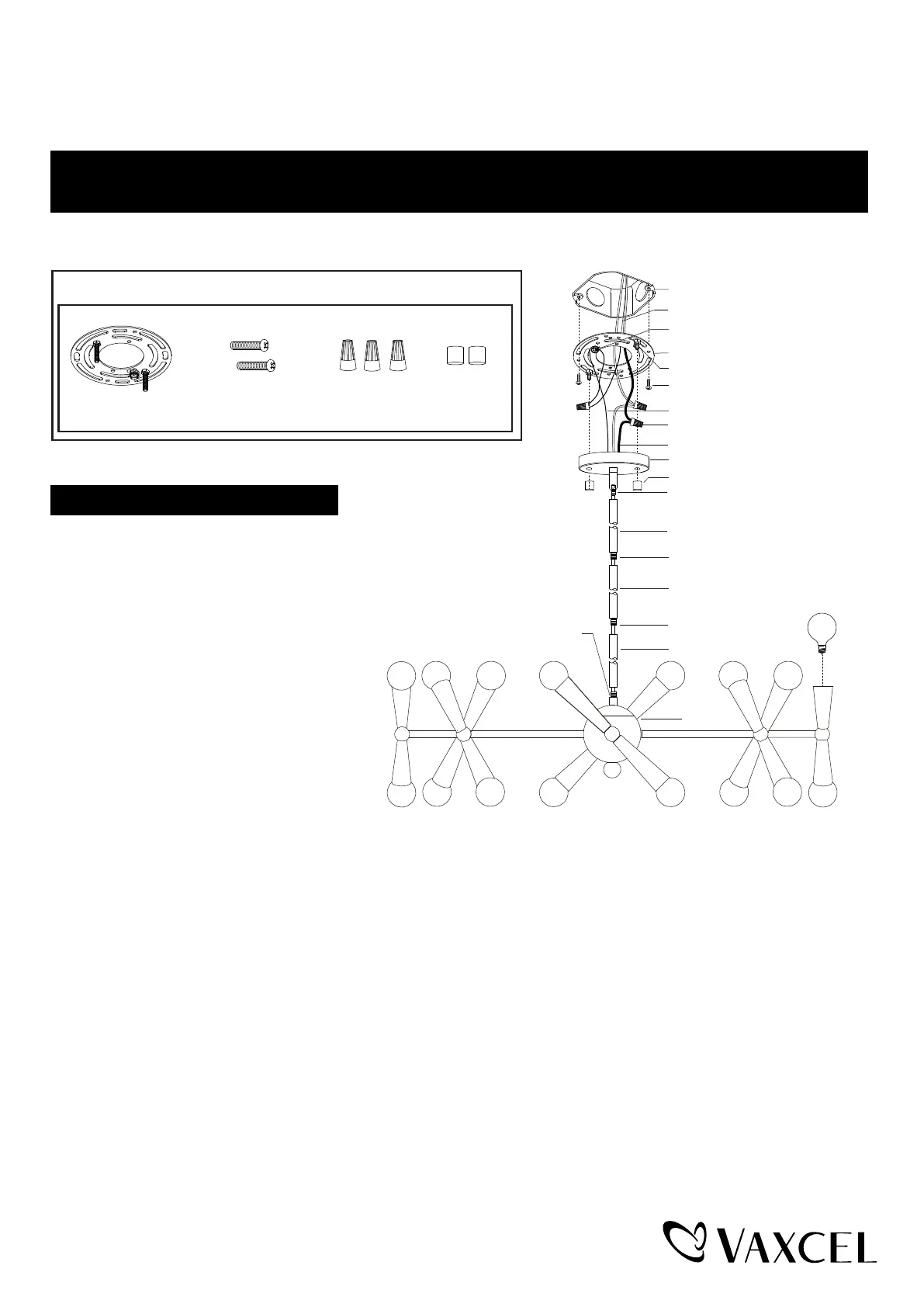

Bolt Nut (D)Mounting plate Unit (A)Mounting Screw (B)Wire Connector (C)
Page 1 / 2
240222
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Canopy
Bolt Nut (D)
Outlet Box
Set Threaded Pipe
Fixture Wire
Upper Rod
Middle Rod
Lower Rod
Threaded Pipe
Threaded Pipe
Fixture
Threaded
Pipe
Max. 40W candelabra
base Bulb (not included)
