1. Attach the mounting strap unit (A) to the outlet box by using

two mounting screws (B).

Adjust the length of the

preinstalled threaded pipe if necessary.

2. Take a rod and hook one end onto the loop-2 of the

tube and hook another end onto one loop of the fixture.

Repeat with the other rod.

3. Choose two certain same length of the chains (F) you

need.

- Weave the fixture wire and fixture ground wire

through the chain(F) and the canopy kit.

- Connect the two chains (F) to the top loops and

loops-1 with four quick links (E).

Note: Length adjustable from 29-3/4" to 78-3/4".

Use fewer chains if shorter length is desired.

4. Make wire connections using wire connectors (C):

---The smooth wire (marked) from fixture to the

black wire from power source.

---The ridged wire (unmarked) from fixture

to the white wire from power source.

---Attach the fixture ground wire to the mounting

strap unit (A) with the green ground screw,

then connect it to the house ground wire with the wire connector (C).

Carefully tuck wires back into the outlet box.

5. Attach the canopy kit to the mounting strap unit (A) by inserting the threaded pipe, then secure

it with the finial (D).

6. Install 3 x 60W max. medium base bulbs (not included) . See relamping label at socket area or

packaging for maximum wattage allowed.

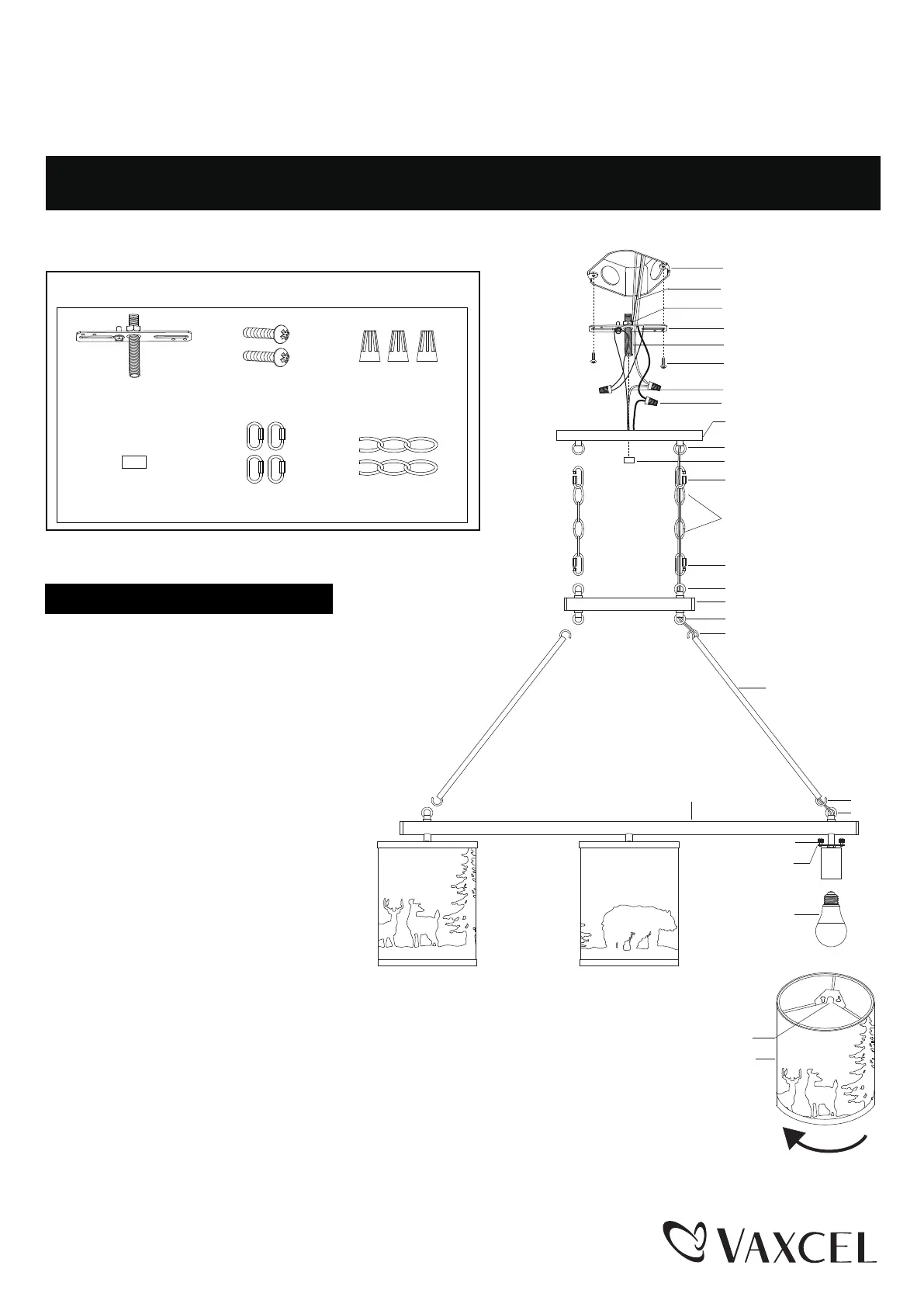

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save this instruction.

H0302

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Turn off the power at fuse or circuit box.

Installation Steps

Mounting Strap Unit (A)Mounting Screw (B)

Finial (D)

Wire Connector (C)

Quick Link (E)

Chain (F)

Page 1 / 2

House Ground Wire

Fixture Ground Wire

Wire Connector (C)

Mounting Strap Unit (A)

Green Ground Screw

Mounting Screw (B)

Threaded Pipe

Outlet Box

Canopy Kit

Top Loop

Finial (D)

Quick Link (E)

Quick Link (E)

Tube

Fixture

Loop-1

Loop-2

Hook

Loop

Shade Holder

Set Screw

Hook

Rod

Chain (F)

Max. 60W Medium

Base Bulb

(not included)

Fabric Shade

Slot
