ASSEMBLY AND INSTALLATION

INSTRUCTIONS

C0319

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read

and save these instructions.

Hardware Package (included):

Mounting Screw (B)Wire Connector (C)Finial (D）Mounting Strap Unit (A)

Turn off the power at fuse or circuit box.

Installation Steps

1. Attach the mounting strap unit (A) to the outlet box by

using two mounting screws (B).

2. Choose three same length of the chains you need, hook one

end of the chains to the arms, and then weave the fixture wire

and the ground wire through one of the chains, then connect

the other end of the chains to the loops.

3. Connect the smooth wire from the fixture (marked) to

black wire from the outlet box (power), the ribbed wire

from the fixture (unmarked) to white wire from the outlet

box (neutral) with the wire connectors (C) provided.

Connect the copper wire from the fixture to the mounting

strap unit (A) by securing it with the green ground screw,

then connect it to the house ground wire with wire

connector (C).

Carefully put all the wires into outlet box.

3. Remove the finial (D) from the mounting

strap unit (A).

4. Attach the ceiling pan to the mounting strap

unit (A) by inserting threaded pipe into the

center hole the ceiling pan and secure it with

the finial (D).

NOTE: Depth of threaded pipe may need

to be adjusted to properly fit the finial.

5. Install 3 x 60W Max. candelabra base

bulbs (not included).

See relamping label at socket area or

packaging for maximum wattage allowed.

Turn on the power at fuse or circuit box.

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Page 1 / 2

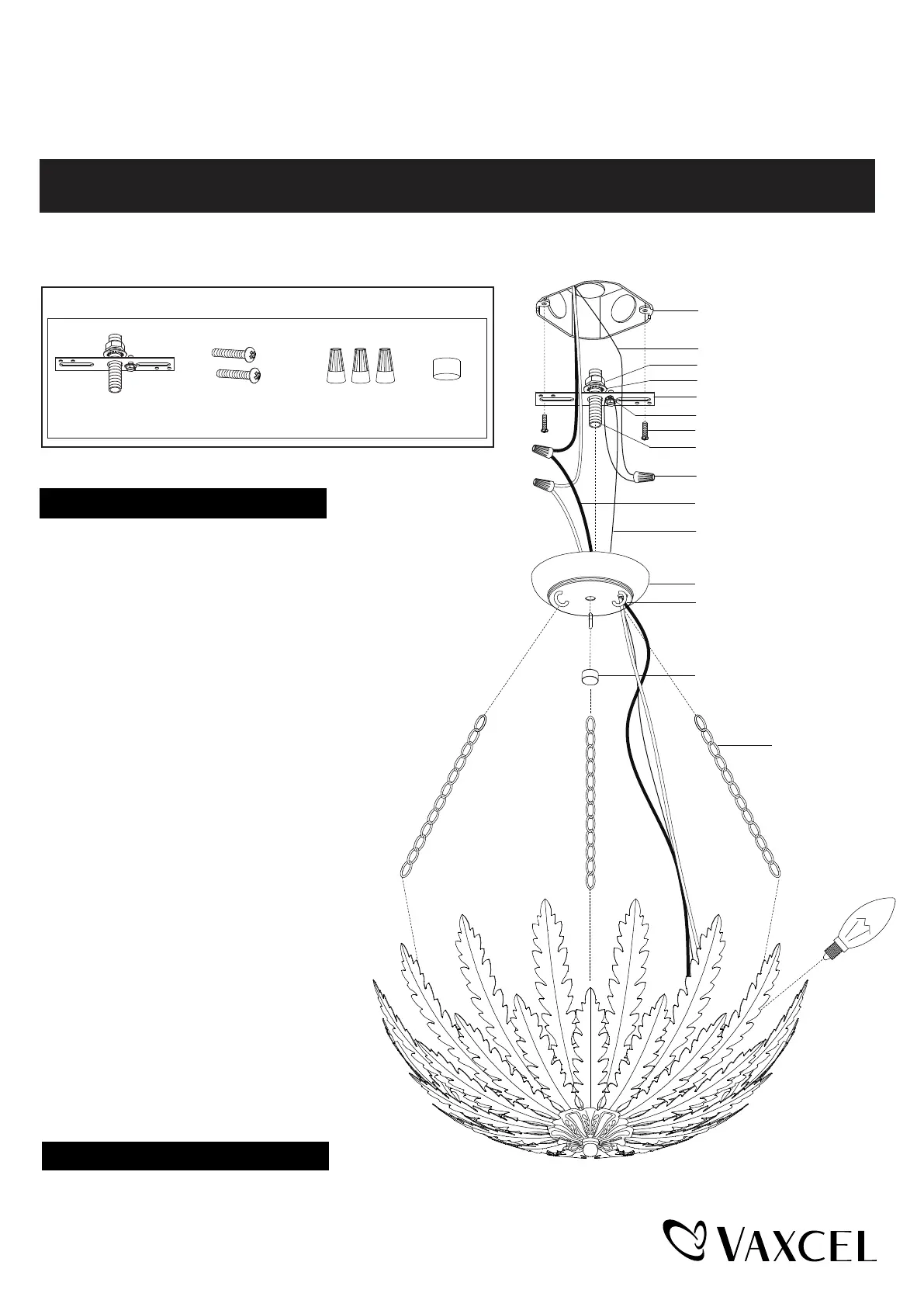

Mounting Screw (B)

Green Ground Screw

Wire Connector (C)

House Ground Wire

Fixture Ground Wire

Outlet Box

Fixture Wire

Threaded Pipe

Mounting Strap Unit (A)

Hex Nut

Washer

Canopy

Hook

Finial (D)

Chain

Max. 60W

Candelabra base

bulb (not included)
