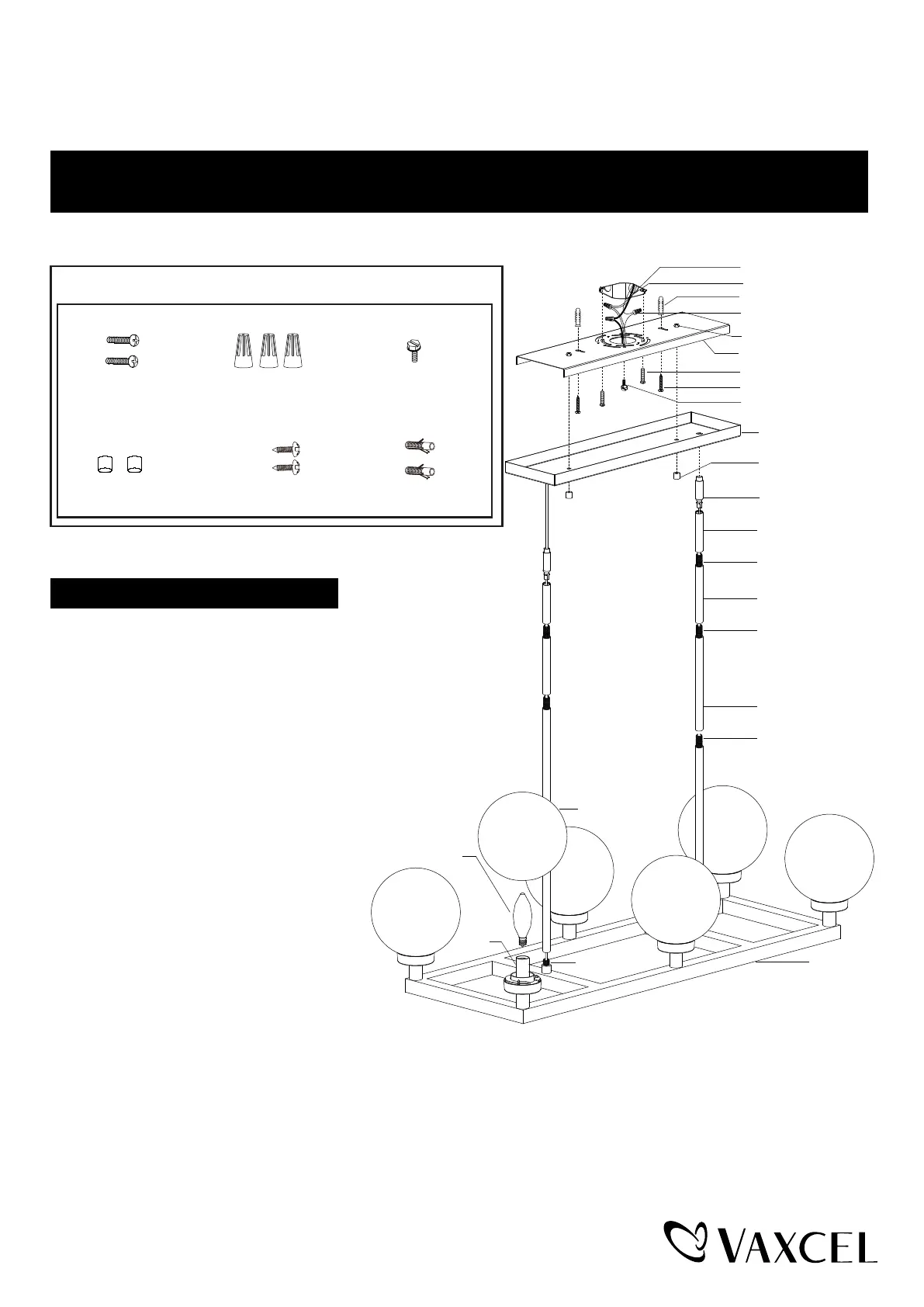

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instructions.
H0278
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box
Installation Steps
1
. Unscrew the bolt nuts (D), take out the mounting plate
and then attach to the outlex box by using two
mounting screws (A).
2. Attach the mounting Plate to the ceiling using the drywall
screw (E) and Anchor (F)
3. Rod Connections:
a. Thread the fixture wire from the shade
through the lower rod, then secure the
lower rod onto shade using the threaded
pipe.
b. Thread the fixture wire through the middle
rod and then secure the middle rod onto
the lower rod using the threaded pipe.
c. Thread the fixture wire through the
upper rod, then secure the upper rod
onto the middle rod using the threaded
pipe.
Note: Length adjustable from 15-3/4"
to 60-3/4". Use fewer rods if shorter
length is desired.
4. Thread the fixture wire through the canopy kit, then secure the rod assembly to the set threaded pipe of the canopy kit.
5. Pull out the source wires from the outlet box. Make wire connections using wire connectors (B) as follows:
---Connect the smooth-coated wire (marked) from the power source to the black wire from the fixture.
---Connect the ribbed-coated wire (unmarked) from the power source to the white wire from the fixture.
---Attach the fixture ground wire (bare wire) to the mounting plate with the green ground screw (C),
or connect to the source ground wire if available.
Carefully put the wires back into the outlet box.
Wire Connector (B)
Mounting Screw (A)
Green Ground Screw (C)
Drywall Screw (E)
Anchor (F)
Outlet Box
House Ground Wire
Green Ground Screw (C)
Canopy Kit
Mounting plate
Fixture Mounting Screw
Wire Connector (B)
Anchor (F)
Mounting Screw (A)
Drywall Screw (E)
Bolt Nut
(D)
Bolt Nut (D)
Coupling Kit
Upper Rod
Threaded Pipe
Middle Rod
Threaded Pipe
Lower Rod
Threaded Pipe
Fixture
Threaded Pipe
Max. 40W
Candelabra Bulb
(not included)
Socket
Glass Shade
Page 1 / 2
230213
