Safety and General Information

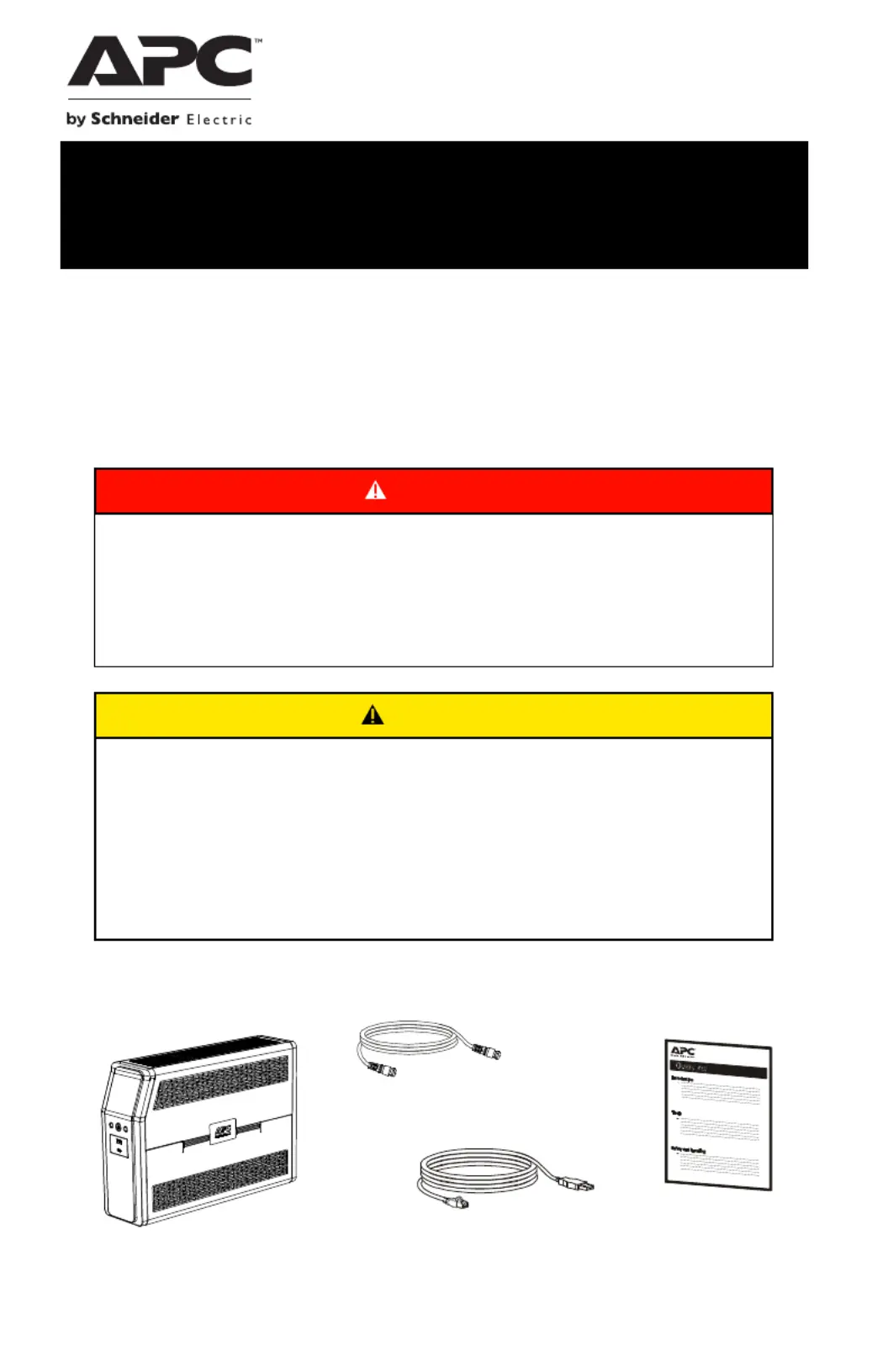

Inspect the package contents upon receipt. Notify the carrier and

dealer if there is any damage.

SAVE THESE INSTRUCTIONS - This section contains important

instructions that should be followed during installation and maintenance

of the UPS and batteries.

Inventory

DANGER

HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH

•This UPS is intended for indoor use only.

•Do not operate this UPS in direct sunlight, in contact with fluids, or where there is excessive

dust or humidity.

•Be sure the air vents on the UPS are not blocked. Allow adequate space for proper ventilation.

Failure to follow these instructions will result in death or serious injury.

CAUTION

RISK OF HYDROGEN SULPHIDE GAS AND EXCESSIVE SMOKE

•Connect the UPS power cable directly to a wall outlet.

•Battery must be replaced when they reach end of service life.

•Batteries must be replaced when the unit indicates battery replacement is necessary.

•When replacing batteries, replace with the same number and type of batteries originally

installed in the unit.

Failure to follow these instructions could result in minor or moderate injury and

equipment damage.

bu476a

Coaxial cable

USB communication cable

User Manual Back-UPS

™

Pro

BN 1100/1350/1375/1400/1500 M2

BN 1100/1350/1500 M2-CA

Back-UPS Pro BN 1100/1350/1375/1400/1500 M2 / M2-CA

Connect the Battery

The UPS is shipped with the battery disconnected.

Install PowerChute

™

Personal Edition Software

Use PowerChute Personal Edition software to configure the UPS settings. During a

power outage, PowerChute will save any open files on your computer and shut it down.

When power is restored, it will restart the computer.

Note: PowerChute is only compatible with a Windows operating system. If you are

using Mac OSX, use the native shutdown feature to protect your system. See the

documentation provided with your computer.

Installation

Use the USB communication cable supplied with the Back-UPS to connect the data port

on the Back-UPS to the USB port on your computer. On the computer, go to

www.apc.com Search for “PowerChute Personal Edition” then click on “View Details”

to download the latest version of PCPE software. Click the download link and select

Software product. Select the appropriate operating system. Follow directions to

download the software.

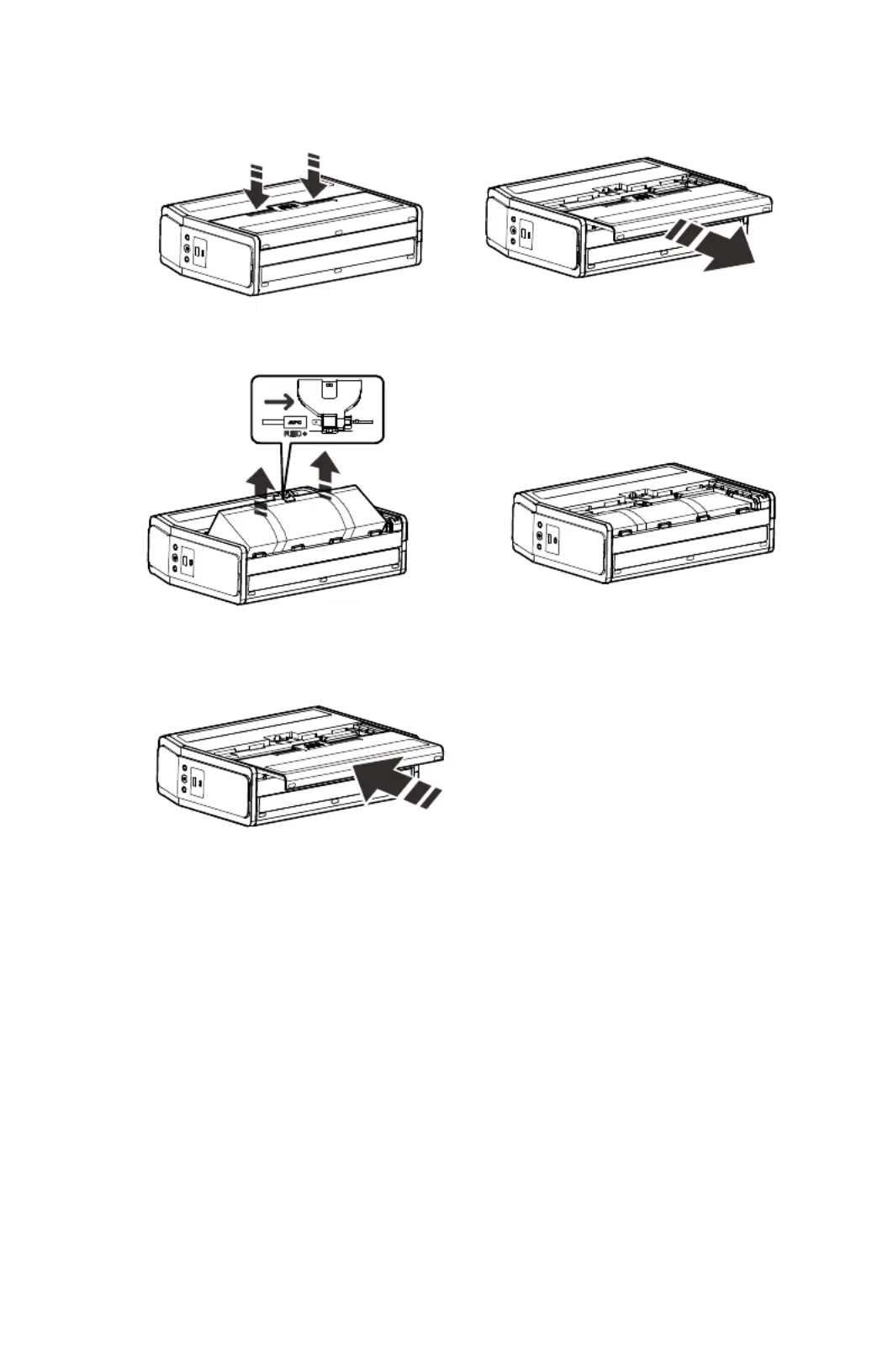

 Lay the UPS with the battery door facing

up. The arrows point to the locking tabs of the

battery compartment.

 Press the tabs downwards and pull the

battery door away from the unit to access

the battery modules.

 Using the handles on both sides of the

battery, lift the battery 30 degrees upward to

expose the battery connector. Connect the red

wire as shown above.

 Push the battery into the unit.

 Replace the battery door.

u471a

bu472

bu473a

bu474a

bu475

Back-UPS Pro BN 1100/1350/1375/1400/1500 M2 / M2-CA

Connect the Equipment

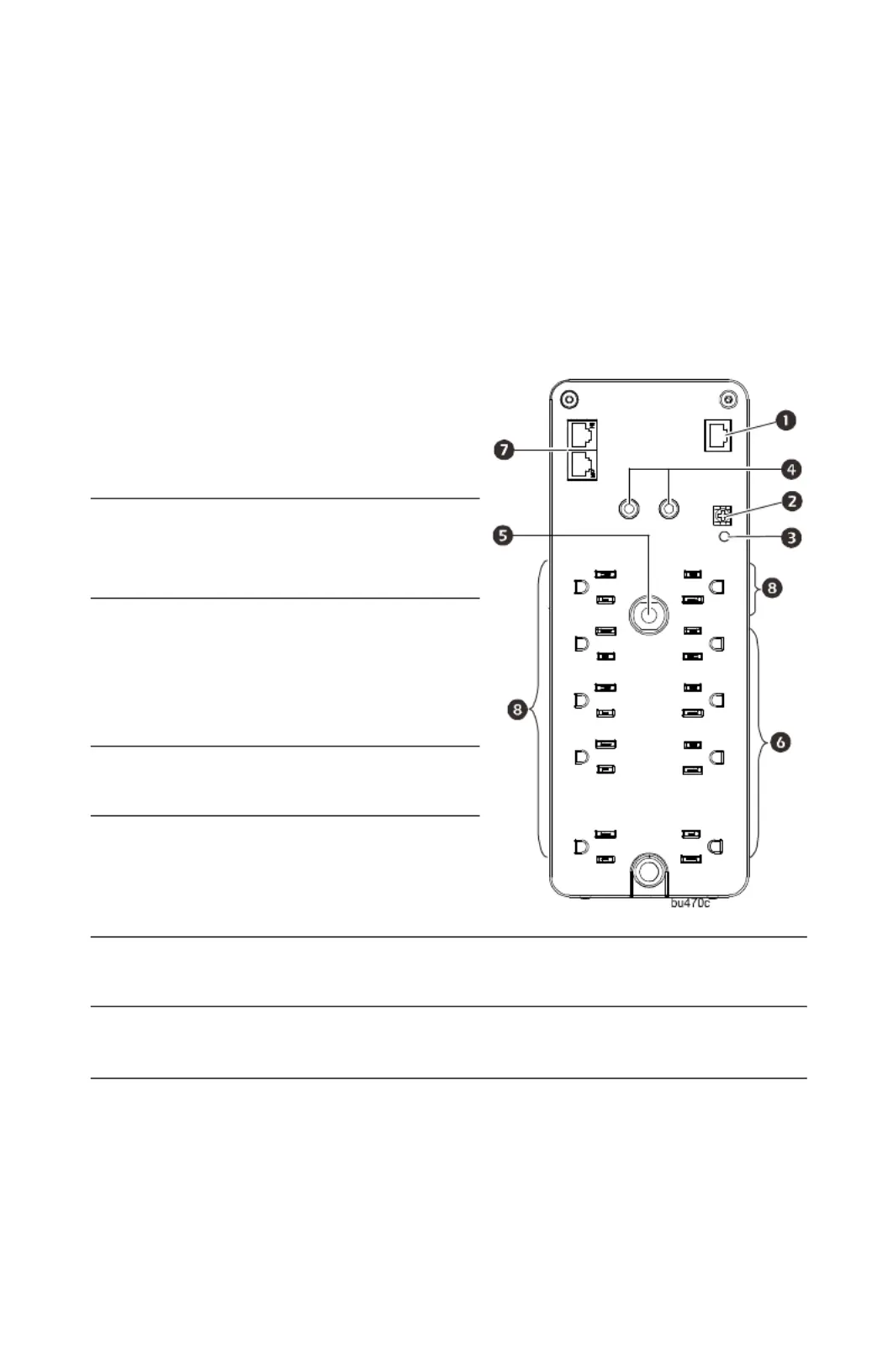

Battery Backup and Surge Protected outlets

When the Back-UPS is receiving input power, the Battery Backup with Surge Protection

outlets will supply power to connected equipment. During a power outage or other AC

problems, the Battery Backup outlets receive power for a limited time from the Back-

UPS.

Connect equipment such as printers, fax machines, scanners, or other peripherals that do

not need battery backup power to the Surge Protection Only outlets. These outlets

provide full-time protection from surges even if the Back-UPS is switched OFF.



Surge Protected

outlets

These outlets provide full-time protection from surges, even if the

Back-UPS is off. Connect equipment such as printers and

scanners that do not require battery backup protection.



In/Out Ethernet

surge-protected

ports

Use an Ethernet cable to connect a cable modem to the I

N port,

and connect a computer to the OUT port.



Battery Backup

outlets with

Surge

Protection

During a power outage or other AC problems, the Battery Backup

outlets receive power for a limited time from the Back-UPS.

Connect critical equipment such as desktop computer, computer

monitor, modem or other data sensitive devices into these outlets.



USB and Serial

Data port

To use PowerChute

Personal Edition, connect

the supplied USB

communication cable or

an optional serial cable

(not supplied).



Ground screw Connect the ground lead

from an additional surge

suppression device such

as a stand-alone data line

surge protector.



Building

Wiring Fault

indicator

If this indicator is

illuminated, there is a

problem with the wiring

in the building. Contact

an electrician

immediately and do not

use the Back-UPS.



Coaxial ports

with surge

protection

Connect a cable modem

or other equipment with

coaxial jacks.



Circuit Breaker Use to reset the system

after an overload

condition has occurred

causing the circuit

breaker to trip.
