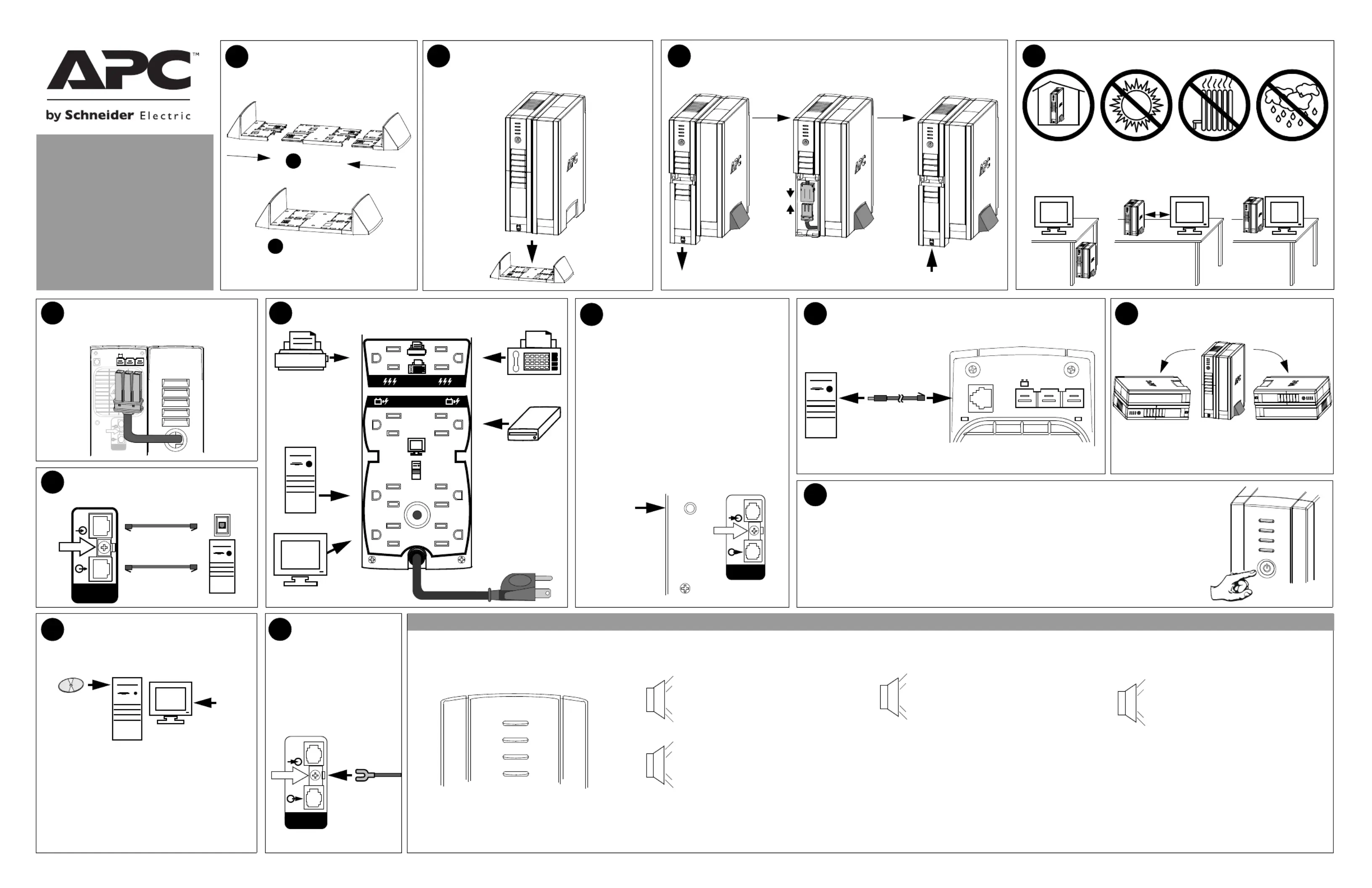

CONNECT TVSS

User Manual

Back-UPS

™

XS 1500

1

24

CONNECT BATTERY CARTRIDGEOPERATING ENVIRONMENT

7

CONNECT EQUIPMENT / POWER

Monitor

Printer or Scanner

FAX

External Disk or

CD / DVD Drive

Input: 120V~

12A, 60Hz

Circuit Breaker

Push to Reset

SURGE

ONLY

BATTERY

BACKUP

Computer

8

CHECK BUILDING WIRING

FAULT INDICATOR

Building

Wiring Fault

Wall

Outlet

Modem/

Phone/Fax

TVSS GND

Building Wiring

Fault Indicator

6

Phone Jack

Computer

Modem Port

CONNECT PHONE/

TVSS GND

Wall

Outlet

Modem/

Phone/Fax

9

To Computer USB

Port

CONNECT INTERFACE CABLE

Data Port

BR24BP Battery Pack

Computer

12

INSTALL SOFTWARE ON

COMPUTER

There are four status indicators (lights) on the front

panel of the Back-UPS (On Line, On Battery, Overload,

and Replace Battery).

On Line (green)- is lit whenever utility power is

powering the Battery Backup outlets.

On Battery (yellow)- is lit whenever the battery of

the Back-UPS is powering equipment connected to the

Battery Backup Outlets.

Four Beeps Every 30 Seconds- this alarm is

sounded whenever the Back-UPS is running On

Battery. Consider saving work in progress.

Overload (red)- is lit whenever power demand has

exceeded the capacity of the Back-UPS.

Continuous Tone- this alarm is sounded

whenever the Battery Backup outlets are

overloaded.

Circuit Breaker- the circuit breaker button

located on the rear panel of the Back-UPS will

stick out if an overload condition forces the Back-

UPS to disconnect itself from utility power. If the

button sticks out, disconnect non-essential

equipment. Reset the circuit breaker by pushing

the button inward.

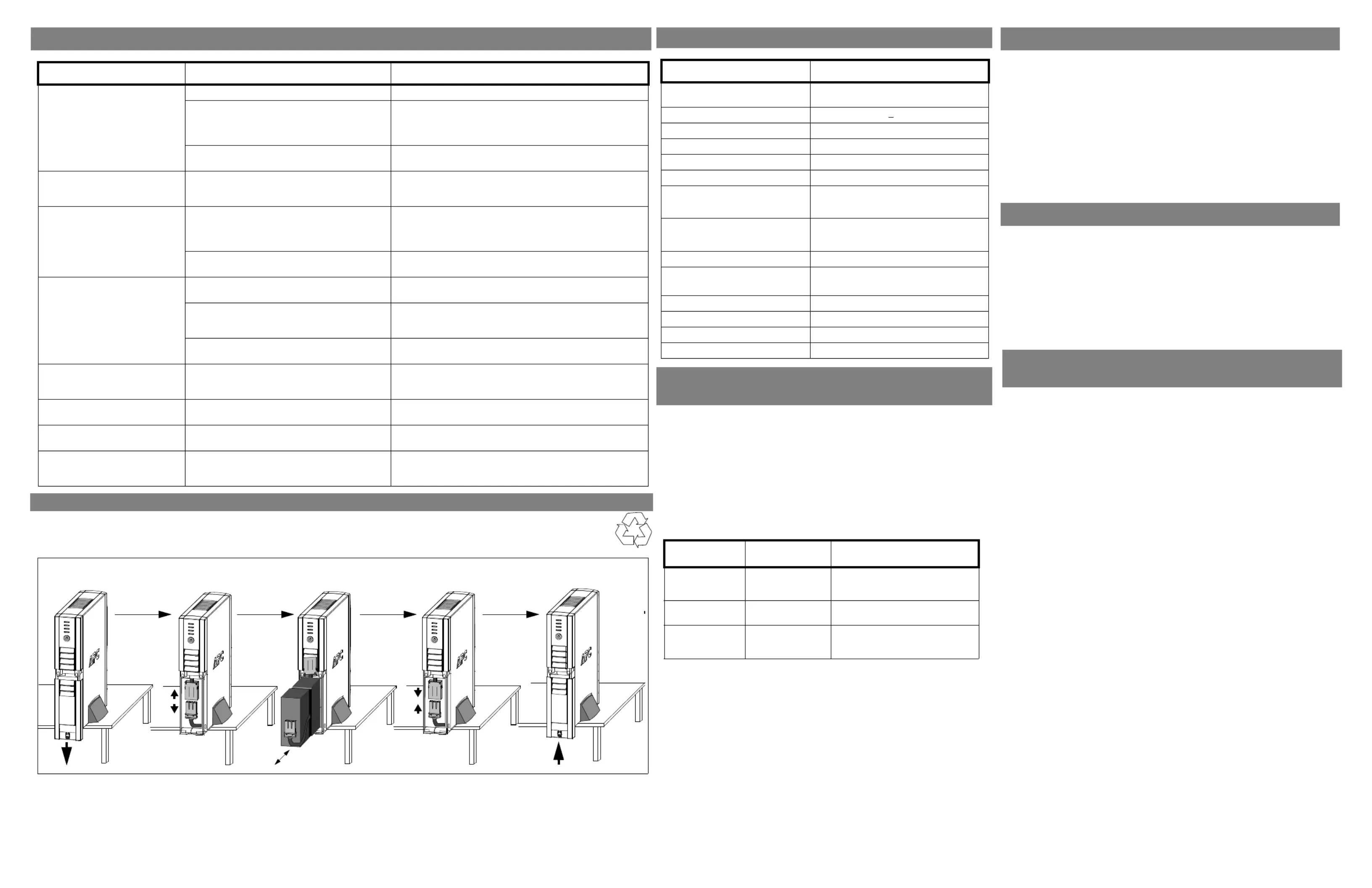

Replace Battery (red)- is lit whenever the battery is

near the end of its useful life, or if the battery is not con-

nected (see above). A battery that is near the end of its use-

ful life has insufficient run-time and should be replaced.

Chirps for 1 Minute Every 5 Hours- this

alarm is sounded whenever the battery has failed

the automatic diagnostic test.

Note: Allow the Back-UPS to charge for a full

eight (8) hours prior to use.

Press the front panel Power ON/OFF switch and

observe that the following events occur after

pressing and releasing the switch:

•The green On Line indicator flashes.

•The yellow On Battery indicator lights while

a Self-Test is being performed.

•When Self-Test has successfully completed,

only the green On Line indicator will be lit.

•If the battery cartridges are not connected (see

Step 3 above), the green On Line indicator

and red Replace Battery indicators will light.

The Back-UPS will also emit a chirping

sound.

Continuous Beeping- this alarm is sounded

whenever a low battery condition is reached.

Battery run-time is very low. Promptly save any

work in progress and exit all open applications.

Shutdown the operating system, computer and

the Back-UPS.

NOTE: Macintosh Users - for full USB performance,

use OS 9.22 or higher.

If Autoplay is not enabled on the computer, proceed

as follows:

1.On the computer desktop of the display, double-

click on My Computer.

2.Double-click on the CD-ROM drive icon and

follow the on-screen instructions.

If the rear panel Building Wiring Fault (red) indicator

is lit, a potential shock hazard exists due to one of the

following conditions:

• Open or high resistance ground

• Hot or neutral polarity reversed

• Overloaded neutral circuit

Improper building wiring should be corrected by a

qualified electrician. Do not use the Back-UPS until

the condition that caused the fault is corrected.

Note: Improper building wiring will not prevent the

Back-UPS from operating, but it will limit its

protection capability.

11

SWITCH ON THE BACK-UPS

10

ORIENTATION

13

GROUND

The Back-UPS features a transient

voltage surge-suppression (TVSS)

screw for connecting the ground

lead on additional surge

suppression devices such as

network and data line surge

protectors.

Wall

Outlet

Modem/

Phone/Fax

TVSS GND

From Data Line

TVSS

Follow the

on-screen

instructions.

On Line

On Battery

Overload

Replace Battery

RJ-45USB

STATUS INDICATORS AND ALARMS

32 - 104

o

F (0 - 40

o

C)



A

3





24 inches

60 cm



5

CONNECT BACK-UPS TO

BATTERY PACK

Data Port

Building

Wiring Fault

Wall

Outlet

Modem/

Phone/Fax

TVSS GND

BR24 BP Battery Pack

MODEM/FAX

INSTALL PEDESTAL

EXTENDER

Align

Slide Together

INSTALL BACK-UPS AND

BATTERY PACK IN PEDESTAL

B
