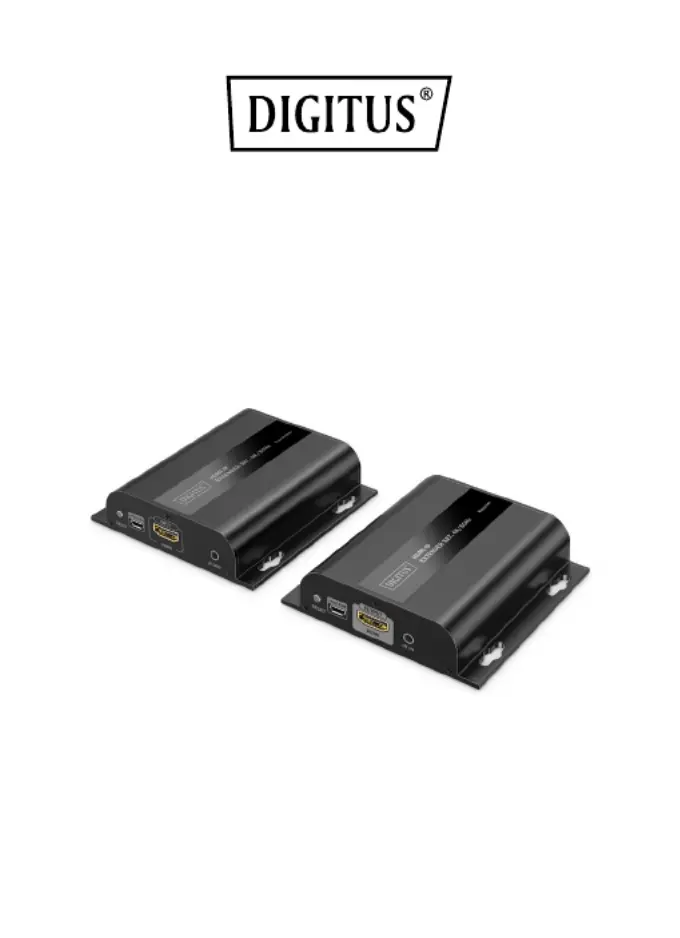

Seite 1/14
HDMI IP Extender Set,
4K/60Hz
Installation Guide
DS 5535 DS 55352- 1, -
2
Table of Contents
1. Introduction ................................................................ 3
2. Main Features ............................................................. 4
3. Package Content ......................................................... 4
4. Technical Parameters .................................................. 5
5. Panel Description ........................................................ 8
1. HDMI Extender TX (Sender) .................................... 8
2. ................................ HDMI Extender RX (Receiver) . 9
6. Installation Requirements ......................................... 10
7. Installation Procedures ............................................. 11
1. How to make a CAT6 network cable ..................... 11
2. Connections .......................................................... 11
3. IR User Guide ........................................................ 13
8. FAQ ..........................................................................13
Important Safety Instructions:
• Do not mix up the HDMI Extender Sender and HDMI
Extender Receiver, and the IR Blaster and IR Receiver
• Do not plug in/out the cables, when it is in using
• Use only the power supply units, which are part of the
package content
3
1. Introduction
The HDMI IP Extender Set, 4K/60Hz enables the transmission
of HDMI AV signals in ultra- -high resolution 4K quality
(4096x2160p at 60Hz) over long distances of up to 200
meters - thanks to the powerful point point connection - -to
via a CAT6 network cable or higher. Expansion via IP allows
the system to be scaled flexibly and supports up to 253
receivers (displays) for point- -to multipoint transmission. In
addition, the existing 1G network infrastructure can be used
so that an unlimited signal range is possible through
cascading via network switches. For even greater flexibility,
additional receivers (RX) are available separately (model: DS-
55352). The excellent picture quality is always maintained:
Thanks to a low latency of just 150-220 ms, transmission is
smooth and razor-sharp in UHD. Another practical feature is
the integrated IR interface, which enables remote control of
the input source directly from the output screen. The device
is also suitable for wall mounting, which allows for space-
saving installation. Ideal for professional AV applications,
home cinema setups or use in companies this HDMI IP -
extender set combines the highest transmission quality with
maximum flexibility.
