Seite 1/20

N219

CONTENTS

1 INSTALLATION PRECAUTIONS ............2

1-1 BEFORE INSTALLATION ................2

1-2 PARTS IDENTIFICATION ................3

1-3 KNOCKOUTS ..................................3

2 DETECTION AREA.................................4

2-1 OUTLINE OF DETECTION AREA ...4

2-2 HOW TO REDUCE THE LONG

RANGE DETECTION AREA ............6

2-3 HOW TO DEACTIVATE THE SHORT

RANGE DETECTION AREA ............8

3 INSTALLATION .....................................10

3-1 INSTALLING WITH BRACKET ......10

3-2 ADJUSTING THE VERTICAL

ANGLE...........................................12

3-3 INSTALLING WITHOUT

BRACKET ......................................12

3-4 WIRING .........................................13

3-5 WALL TAMPER (OPTION) ............14

4 WALK TEST ..........................................16

5 SETTING ..............................................16

6 LED INDICATION .................................18

7 SPECIFICATIONS ................................19

7-1 SPECIFICATIONS .........................19

7-2 DIMENSIONS ................................20

HX-80N 2 PIRs standard model

HX-80NAM HX-80N with anti-masking

Long distance detection area (24.0 m)

Flexible detection area setting with plates and flaps

Unique pyro element

Intelligent AND logic

Dual signal processing logic

Vegetation sway analysis logic

Digital anti-masking (AM model)

•

NO.59-1619-0

INSTALLATION INSTRUCTIONS

High Mount

Outdoor Detector

HX-80N/80NAM

High Mount

Outdoor Detector

HX-80N/80NAM

- 1 -

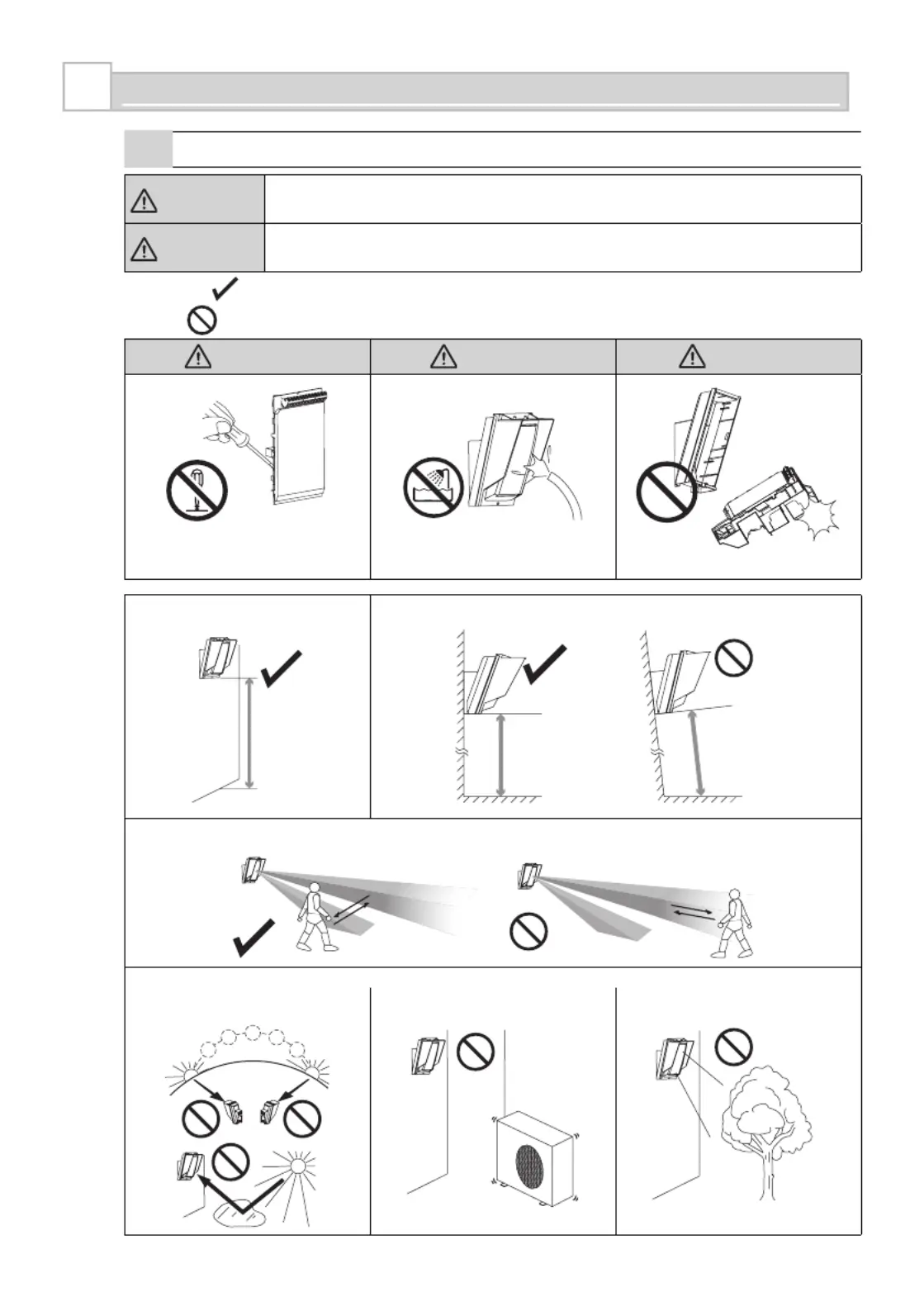

INSTALLATION PRECAUTIONS

1-1

BEFORE INSTALLATION

Warning

Failure to follow the instructions provided with this indication and improper

handling may cause death or serious injury.

Caution

Failure to follow the instructions provided with this indication and improper

handling may cause injury and/or property damage.

The check

mark indicates recommendation.

The nix sign indicates prohibition.

Warning Warning

Caution

Do not repair or modify product

Keep product away from water

Mount the unit securely

Mounting height Keep the detector parallel to the ground.

Parallel Tilt

Consider the direction a person is approaching from, as well as the detection area.

Install the detector in a place where it is free from false alarm factors. For example:

Sunlight and reflection•Heat source•Objects moving in the wind •

2.5 m – 3.0 m

(8'2" – 9'10")

- 2 -

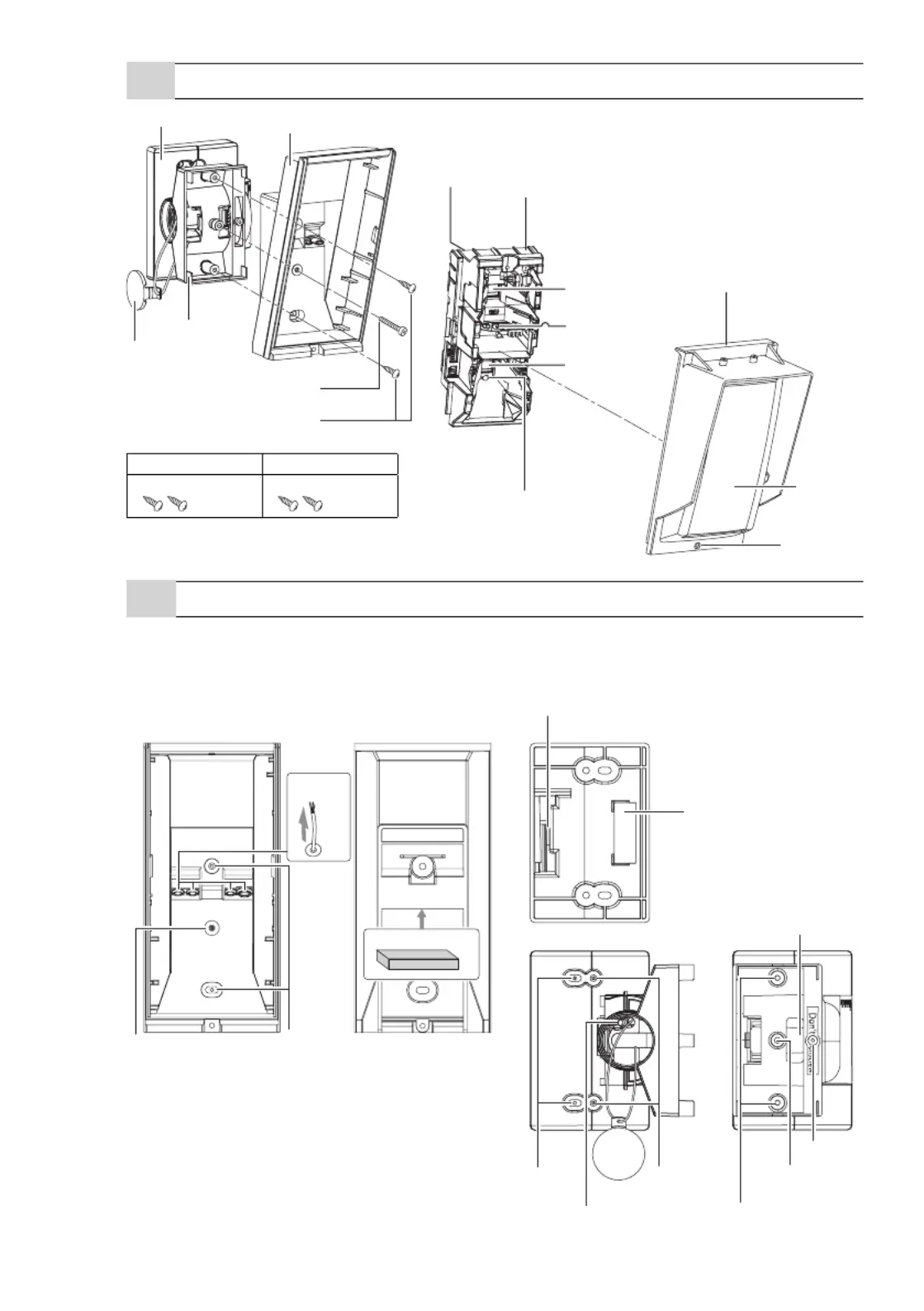

1-2

PARTS IDENTIFICATION

1-3

KNOCKOUTS

Bracket base

Main unit

Bracket

LED indicator

Lock Screw* (M4 × 35 mm)

Lens

Base

PIR1

(Do not touch)

Terminals

Shaft cover

Cover

Lock screw

Anti-masking infrared LED

(HX-80NAM only)

Screw (4 × 20 mm)

PIR2

(Do not touch)

For wall fastening/bracket fastening

(installation pitch 83.5 mm (3.29"))

For main unit fastening

Adjustment screw

BracketMain unit

(Off-the-shelf) Universal

magnet switch install position

For bracket

Up-Down lock screw

Wiring Hole

For wall

fastening

For switch

box fastening

Do not touch

Up-Down

lock screw

Wiring

knockout

Wiring sponge pad

Wiring Hole

Screw kit

For joint For wall mounting

Screw (4 × 20 mm)

*Lock screw attached on bracket base

- 3 -

Produktspezifikationen

Marke:	Optex
Kategorie:	Bewegungsmelder
Modell:	HX-80N
Gewicht:	720 g
Internationale Schutzart (IP-Code):	IP55
Übertragungstechnik:	Kabellos
Energiequelle:	Gleichstrom
Befestigungstyp:	Wand
Energieverbrauch:	35 mA
Eingangsspannung:	9.5 - 18 V
Sensor-Typ:	Passiver Infrarot-Sensor (PIR)
Distanzerfassung:	24 m
LED Farbe:	Rot
