Personal injury and/or equipment damage
may result if proper safety precautions are
not observed.
• Ensure that reel is properly installed
before connecting input and output
hoses.
• Bleed fluid/gas pressure from system
before servicing reel.
• Before connecting reel to supply line,
ensure that pressure does not exceed
maximum working pressure rating of
reel.
• Remember, even low pressure is very
dangerous and can cause personal in-
jury or death.
• Be aware of machinery and personnel
in work area.
• If a leak occurs in the hose or reel, re-
move system pressure immediately.
• A high tension spring assembly is con-
tained within the reel. Exercise extreme
caution.
• Pull hose from reel by grasping the
hose itself, not the control valve.
• If reel ceases to unwind or rewind,
remove system pressure immediately.
Do not pull or jerk on hose!
• Treat and respect the hose reel as any
other piece of machinery, observing all
common safety practices.
Operating Instructions
Series 80000 Spring Driven Hose Reels
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com
Form# 936-198 Rev: 1/2022
81075 OLP 82000 OLP 82000 OMP 81000 OHP
81100 OLP 83050 OLP 83050 OMP F83050 OLP
81000 OLP 83000 OLP 83000 OMP F83000 OLP
82075 OLP 82075 OMP 81075 OHP 82100 OLP-HTH
82100 OLP 82100 OMP 81100 OHP 83050 OLP-HTH
Dimensional Data
Personal Safety
IMPORTANT
Read this manual carefully before installing,
operating or servicing this equipment.
A
25 3/8”
B
24”
C
10”
D
6”
E
10 1/2”
F
8 1/8”
A
B
C
D
E
F
INSTALLATION INSTRUCTIONS
WARNING: Ensure that reel, hose, and
equipment are properly grounded. Use an
ohmmeter to check ground continuity.
Mounting
CAUTION: Unless reel was specified different-
ly when ordering, maximum installation height
is 16 feet. Do not exceed this distance.
1. Unpack and inspect reel for damage.
Turn by hand to check for smooth opera-
tion. Check for completeness.
2. Configure reel for top, side or bottom
hose dispensing by removing the bolts
(2) from one side of the guide roller
bracket and loosening the four guide arm
bolts (3) on each side of the hose reel.
Rotate and remove each guide arm then
reinstall in the desired configuration. If
bottom wind is desired, bolts (13) and
bolts (2) must be removed and replaced
after the guide arm is in position.
CAUTION :When changing guide arm
positions, the U-bolt must be placed in the
proper location as instructed in figure A on
page 4. The reel can “latch out” during use if
this instruction is not adhered to.
3. Position reel on floor, wall, or ceiling.
Secure into place using four (customer
supplied) bolts.
Installing the Input Hose
WARNING: Ensure that supply line pressure
does not exceed maximum working pressure
rating of reel. Apply pipe thread sealant to all
threads on standard reels. Do not overtighten
connection. Recommended torque not to
exceed 70 ft. lb.
CAUTION: Use flexible hose connection at
input. Do not use rigid plumbing.
1. -Apply thread sealant as directed and con
nect swivel (12) to main shaft input (5).
2. -For standard shaft and swivel reels, con
nect customer supplied inlet hose (4) to
swivel input as indicated in illustration.
Installing the Output Hose
WARNING: Use extreme caution; reel under
tension. Avoid releasing latch mechanism.
CAUTION: Apply pipe thread sealant to all
threads on standard reels. Do not overtighten
connection. Recommended torque not to
exceed 70 ft. lb.

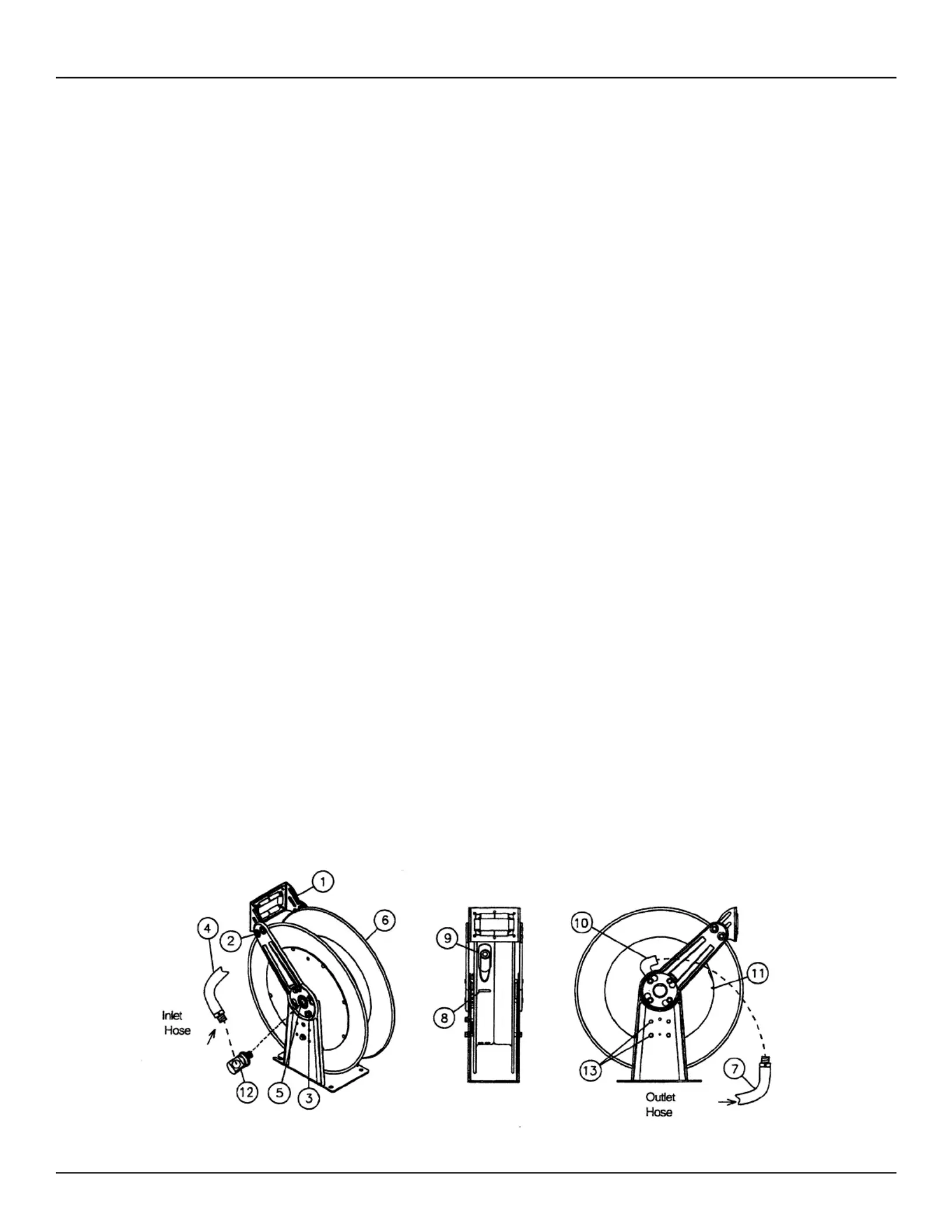

1. Manually turn sheave (6) until spring is
tight, back off 3 turns, then latch.
2. Route output hose (7) through roller
bracket (1), U-bolts (8), then through
cutout (9) in spool as indicated in illus-
tration.
3. Connect output hose (7) to gooseneck
(10) as indicated in illustration.
4. Verify U-bolt position conforms with
guide arm position using label inside
spool. Then tighten nuts (11) on U-bolt
(8).
5. Charge hose. Momentarily open control
valve to purge hose of gases. When fluid
appears at control valve, close valve.
With hose fully charged, release latch and
wind output hose onto reel.
6. Install bumper stop assembly.
ADJUSTMENTS
WARNING: Use extreme caution; reel under
tension. Avoid releasing latch mechanism.
If necessary, adjust spring tension on reel by
manually adding or removing wraps of hose
from spool, one wrap at a time, until desired
tension is obtained. Manually add wraps to
increase tension. Remove wraps to decrease
tension.
WARNING: Rewind hose on reel, then bleed
pressure from system before performing the
following procedures.
CAUTION: Remove all spring tension before
disassembling the hose reel. Do not attempt to
open the riveted spring case assembly.
1. -Replace hoses in accordance with proce
dures given in “Installation Instructions”
section of this manual.
2. -All mating moving parts have been fac
tory lubricated as required.
Series 80000 Spring Driven Hose Reels
Page 2
www.reelcraft.com
Series 80000 Spring Driven Hose Reels
www.reelcraft.com
Page 3
ITEM DESCRIPTION QTY. 81075 OLP 81100 OLP 81000 OLP 82075 OLP 82100 OLP 82000 OLP 83050 OLP
1 Swivel assembly 1 S600888-1 S600888-1 S600888-1 S600888-1 S600888-1 S600888-1 S602026
2 5/16-18 x 1/2” screw 9 * * * * * * *
3 Guide arm 2 261299 261299 261299 261299 261299 261299 261299
4 Spring & case assembly 1 S600645-2 S600645-2 S600645-2 S600645-3 S600645-2 S600645-2 S600645-1
5 U-bolt 1 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440 5-117440
6 5/16-18 lock nut 8 * * * * * * *
7 Roller bracket assembly 1 S600642 S600642 S600642 S600642 S600642 S600642 S600642
9 1/4-20 lock nut 2 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1
10 Hose assembly 1 None S601035-75 601035-100 None 601034-50S601015-75 S601015-100
11 Bumper stop assembly 1 1-HR1004-3 1-HR1004-3 None 2-HR1004-3 2-HR1004-3 None 3-HR1004-3
12 3/8-16 x 5/8” screw 9 * * * * * * *
13 1 3/8” snap ring 2 * * * * * * *
14
Flange w/bearing & nut-
sert assembly
1 S600651 S600651 S600651 S600651 S600651 S600651 S600651
15 Ratchet, flow casting 1 261306-1 261306-2 261306-2 261306-2 261306-2 261306-2 261306-1
16 Sheave assembly 1 600649 600649 600649 600649 600649 600649 600649
17 Base & upright assembly 1 600641 600641 600641 600641 600641 600641 600641
18 Latch mounting bracket 1 261303 261303 261303 261303 261303 261303 261303
19
Latch pawl & mounting
bracket assembly
1 S600643 S600643 S600643 S600643 S600643 S600643 S600643
20 Latch spring 1 S260067 S260067 S260067 S260067 S260067 S260067 S260067
21 Latch pawl assembly 1 S600018 S600018 S600018 S600018 S600018 S600018 S600018
22 Bearing & flange assembly 1 S600644 S600644 S600644 S600644 S600644 S600644 S600644
23 1/2-20 x 5/8” hex nut 1 * * * * * * *
24 5/16-18 x 1/2” hex screw 2 * * * * * * *
25 Pipe plug 1 * * * * * * *
26 10-32 shoulder screw 1 S393-2 S393-2 S393-2 S393-2 S393-2 S393-2 S393-2
27 10-32 Nyloc nut 1 * * * * * * *
Maximum pressure 300 PSI 300 PSI 500 PSI 300 PSI 300 PSI 500 PSI 250 PSI
Maximum temperature 150 °F 150 °F 210 °F 150 °F 150 °F 210 °F 150 °F
*Included in hardware kit part number 600654
