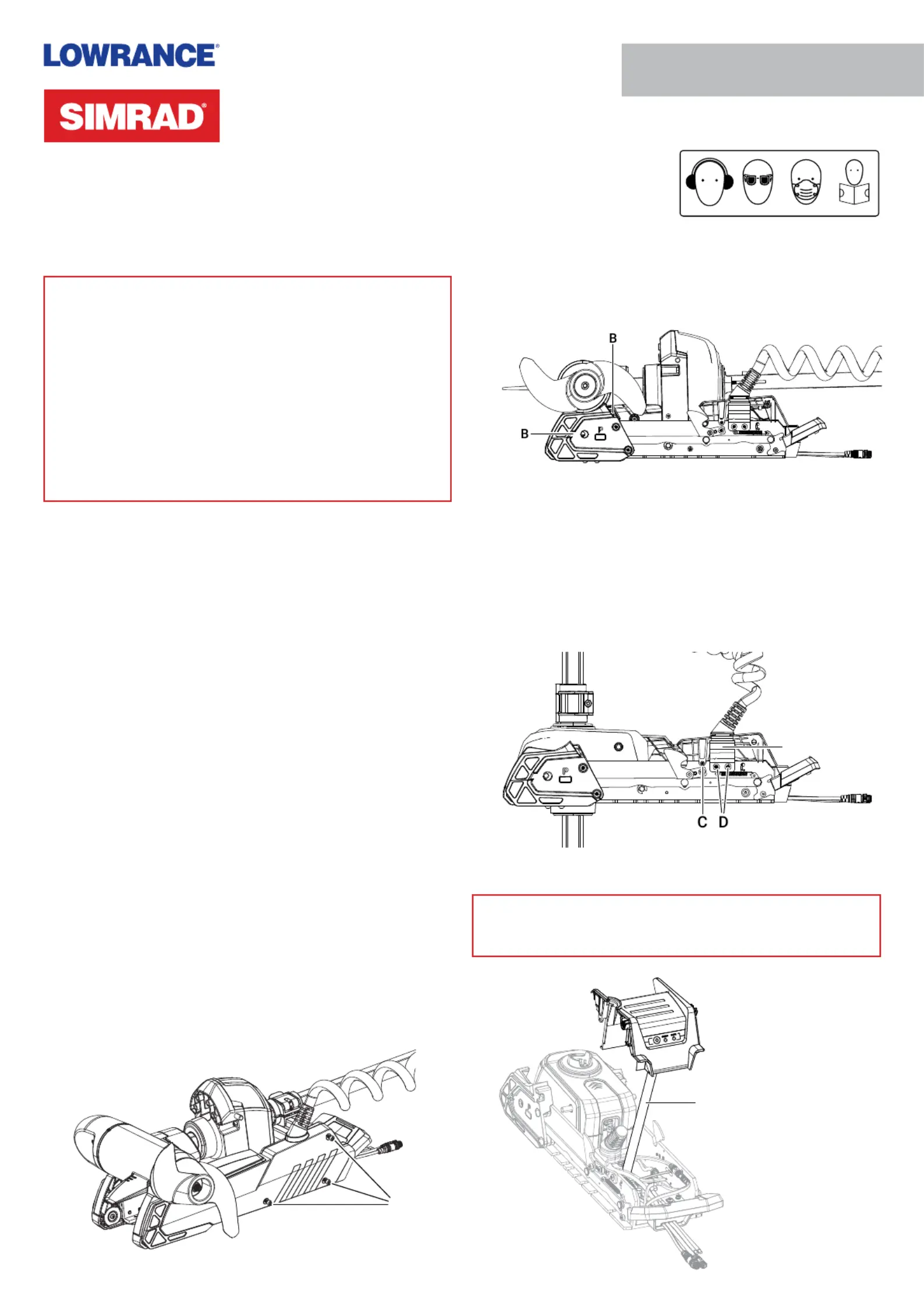

Recon

™

Mount UI Cover

Installation Guide: EN

Document version: 001

⚠WARNING: This product must be installed in

accordance with the instructions provided. Failure to do

so could result in personal injury, damage to your vessel

and/or poor product performance.

⚠WARNING: Performing service or maintenance

without rst disconnecting the battery can cause product

damage, personal injury, or death due to re, explosion,

electrical shock, or unexpected motor starting. Always

disconnect the battery cables from the battery before

maintaining, servicing, installing, or removing motor

components.

In the box

•1x Recon™ mount UI cover

•2x #6 x 3/8, pan, T15 Torx

®

, SS screws

•2x M3-0.5 x 8, flange, hex, SS screw

Tools needed

•#2 Phillips screwdriver

•5/32 in Allen key

•2 mm Allen key

•T15 Torx

®

screwdriver

•Torque wrench

Introduction

The mount user interface cover (UI cover) contains the

circuit boards for the keys and LEDs on the mount. The

UI cover also protects the main circuit board and the

connections inside the trolling motor mount.

Removal

To remove the existing mount UI cover:

1 Disconnect the trolling motor power cable from the

battery (or unplug the power cable if using a plug and

receptacle).

2 While your trolling motor is stowed or deployed, use a

#2 Phillips screwdriver to loosen the side plate screws

on both sides of the mount ().A

¼Note: The screws are retained by washers.

A

3 Remove the side plates, taking care not to damage the

locating tabs as they leave their slots ().B

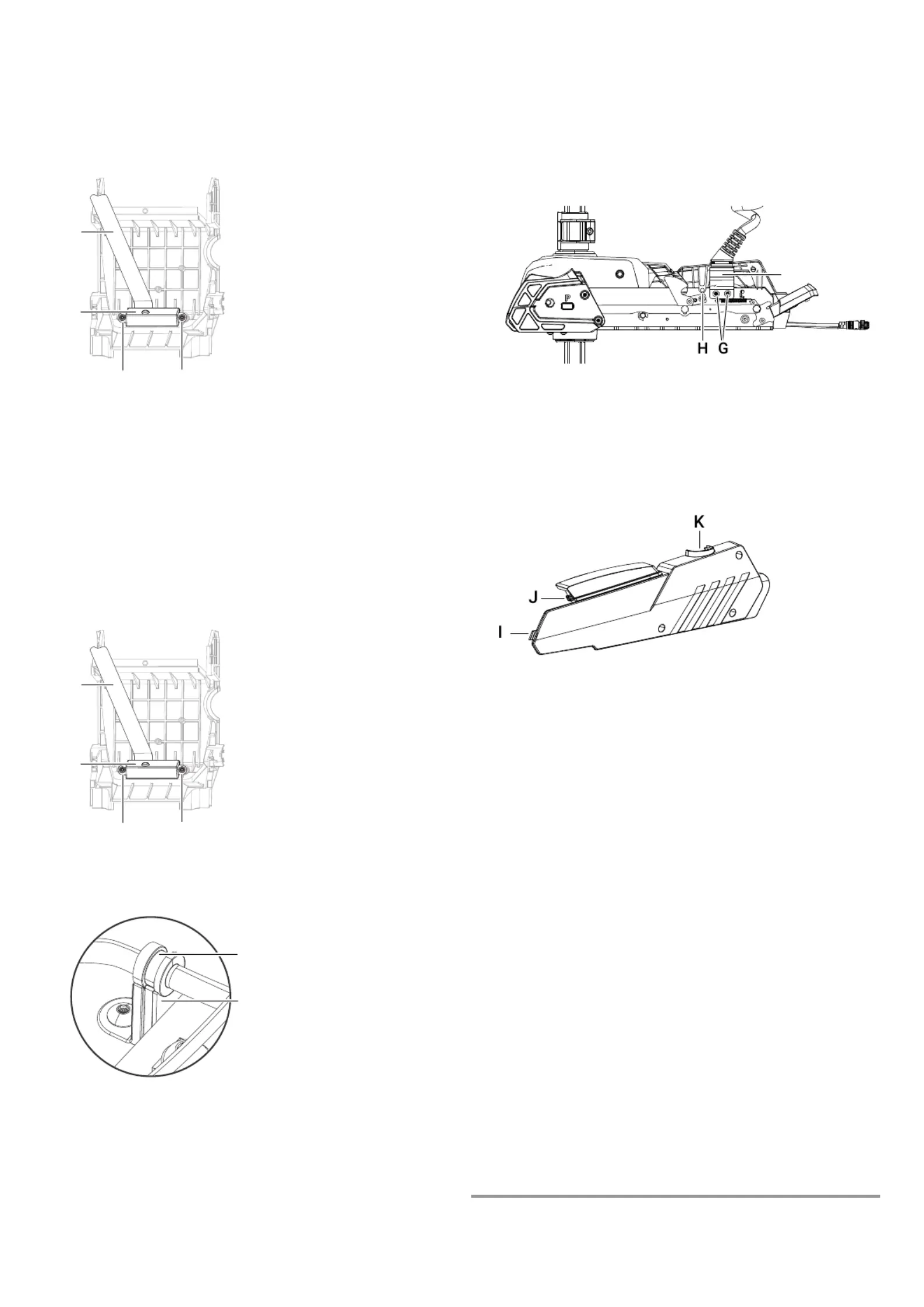

4 Deploy the trolling motor.

5 Use a 2 mm Allen key to remove the screw from both

sides of the UI cover ().C

6 Use a 5/32 in Allen key to loosen the two screws () that D

secure the coil cable bracket 2–3 full rotations. These

screws have a blue thread-locking compound applied to

them. Ease the coil cable bracket () outward from the E

mount.

E

7 Lift the UI cover upward to separate it from the mount.

⚠WARNING: Do not lift the UI cover more than 30 cm

(~12 in) above the mount, to avoid damaging the ribbon

cable () that remains connected to the mount.F

F
