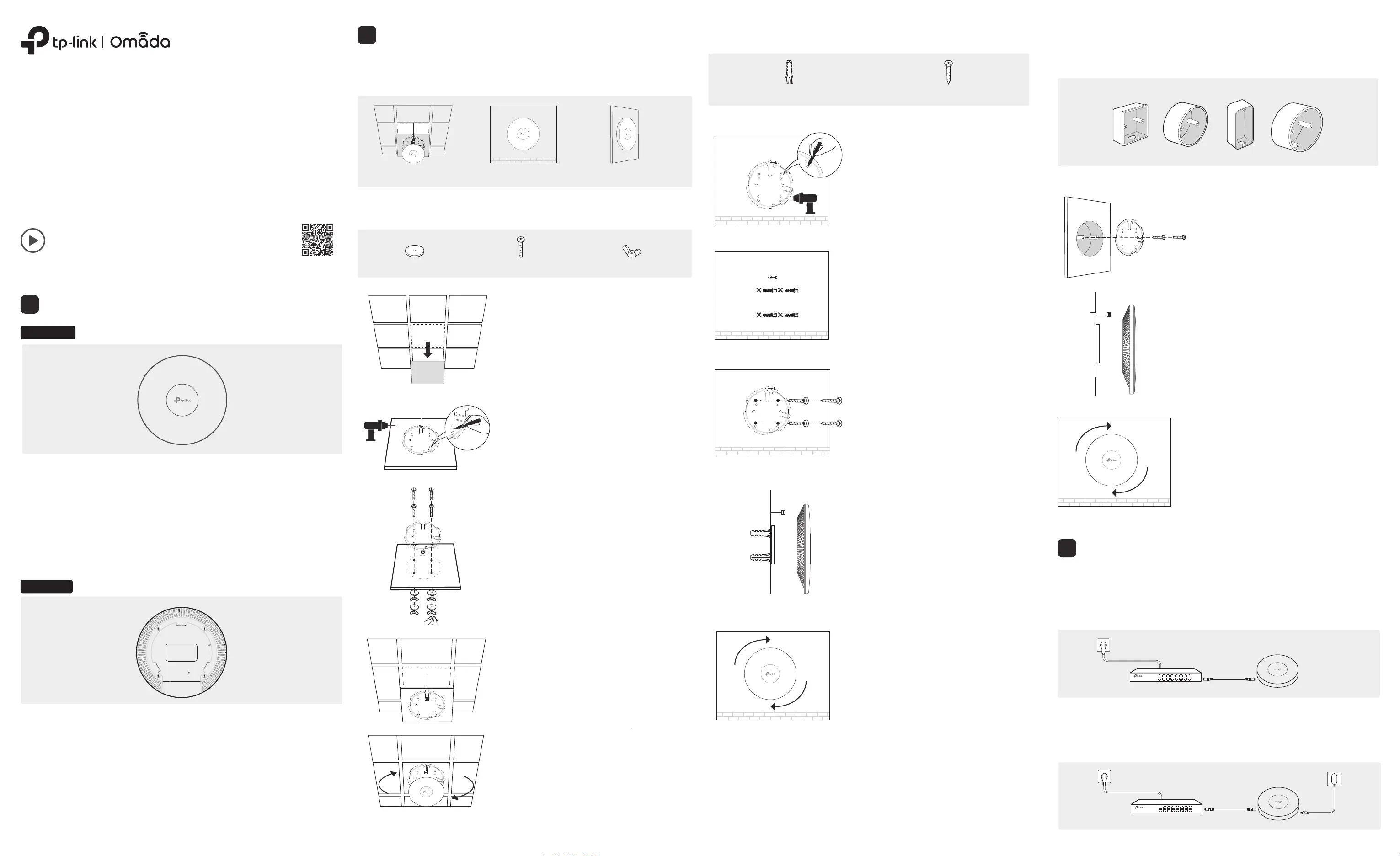

Quick Installation Guide

Wireless Access Point

Note: EAP650 is used as an example throughout the Guide. Images may dier from your actual product.

Hardware Overview

RESET

With the device powered on, press and hold the button for about 5 seconds until the LED flashes quickly. Then

release the button. The device will restore to factory default settings.

Ethernet Port: ETH (PoE)

The port is used to connect to a router or a switch to transmit data, or to a PSE (Power Sourcing Equipment),

such as a PoE switch, for both data transmission and Power over Ethernet (PoE) through Ethernet cable.

Note: For EAPs with 10Gbps port, if you use a CAT5E cable, the 10Gbps link of the Ethernet port is less than 55m. To achieve a longer

transmission distance, use a shielded CAT6A cable.

Power Port

Plug one end of the power adapter to this port and the other end to a standard electrical wall outlet to power the

E AP.

Note: Power adapter is not included in the package contents of certain models. For details, refer to the product specications or

datasheet. For power supply specications, refer to the product label.

Self-tapping Screws

Plastic Wall Anchors

Remove the ceiling tile.

Note: Make sure that the ceiling tile is larger than the EAP.

Wing NutsWashers Pan-head Screws

The EAP can be mounted to the ceiling, the wall, or in a junction box, using the screws in the

package. Choose the appropriate mounting and installation steps below.

Note: This product requires heat dissipation through the metal bracket during use, please be

careful not to touch the metal bracket in the heat dissipation.

Hardware Installation

Insert the plastic wall anchors into the 6 mm

diameter holes.

Front Panel

Rear Panel

Option 1: Ceiling Mounting

Option 2: Wall Mounting

Connect the Ethernet cable to the Ethernet port.

Please pay attention to the triangle sign. Attach

the EAP to the mounting bracket, then rotate it

until it locks into place, as shown on the left.

Place the mounting bracket in the center of the

ceiling tile. Mark positions for the screw holes

and a location for the Ethernet cable hole.

Drill 4 mm (5/32 in) diameter holes for the screws

and a 25 mm (63/64 in) diameter hole for the

Ethernet cable at the marked positions.

Drill Hole for Ethernet cable

Secure the mounting bracket to the ceiling tile

using pan-head screws, washers, and wing nuts,

as shown on the left.

Attach the EAP to the mounting bracket by

rotating it until it locks into place, as shown on

the left.

Connect the Ethernet cable to the Ethernet

port on the EAP.

Attach the EAP to the mounting bracket by

rotating it until it locks into place, as shown on

the left.

Setup with videos

Visit https://www.tp-link.com/support/setup-video/ or scan the QR code

to search for the setup video of your product model.

Feed the Ethernet cable through the hole and

set the ceiling tile back into place.

Secure the mounting bracket to the wall by

driving the self-tapping screws into the

anchors. Make sure that the shoulders of the

mounting bracket are on the outside.

If your Ethernet cable feeds through the wall,

position the mounting bracket below the cable

hole. Mark positions for the screw holes and

drill 6 mm (15/64 in) diameter holes at the

marked positions.

Option 2: Wall MountingOption 1: Ceiling Mounting Option 3: Junction Box Mounting

Blue On:

Working normally/Initializing. For EAPs with dual-color LED: Normal power supply

Orange On:

For EAPs with dual-color LED: Low power supply

Flash: • Flash twice:

Initialization is completed.

• Flash quickly:

The EAP is resetting, or the Omada controller is locating the device*.

• Flash once per second:

The EAP is upgrading.

• Flash Slowly:

The EAP is in the isolated state.

LED Indicator

Off:

Working abnormally/Power o/LED is turned o.

* When the Locate feature is activated in the Omada controller, the LED ashes quickly to locate and identify the

device. The LED will ash for 10 minutes. You can disable the feature manually to stop it from ashing.

Option 3: Junction Box Mounting

Prepare the cables and the junction box in advance. Ensure that the mounting holes align

to your junction box.

Route the cables through the square cable

hole on the mounting bracket, and secure the

mounting bracket to the junction box using

screws.

The EAP can be powered via a power adapter or a PSE device (such as a PoE switch) which

complies with Power Source Class 2 ( PS2) or Limited Power Source (LPS) of IEC 62368-1.

Option 1: Via PoE Switch

Option 2: Via Power Adapter

Plug one end of the power adapter into the power port of the EAP and the other end to a

standard electrical wall outlet.

Note: Power adapter is not included in the package contents of certain models. For details, refer to the product specications or

datasheet. For power supply specications, refer to the product label.

Power Supply

Switch

Power Adapter

PoE Switch

Connect an Ethernet cable from the PoE switch to the Ethernet port.

Note: For PoE power supply specications, refer to the product label.

*Compatible wall junctions:

Connect the Ethernet cable to the Ethernet

port on the EAP.

Produktspezifikationen

Marke:	TP-Link
Kategorie:	Zugangspunkt
Modell:	Omada EAP680
Breite:	220 mm
Tiefe:	220 mm
AC-Netzadapter:	Ja
Produktfarbe:	Weiß
Höhe:	32.5 mm
Platzierung:	Ceiling, Wall
Gleichstrom-Anschluss (DC):	Ja
Antennentyp:	Intern
Betriebstemperatur:	0 - 40 °C
Relative Luftfeuchtigkeit in Betrieb:	10 - 90 %
Netzstandard:	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Unterstützte Sicherheitsalgorithmen:	SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK
Quality of Service (QoS) Support:	Ja
Zertifizierung:	CE, RoHS
Power over Ethernet (PoE):	Ja
Anzahl Ethernet-LAN-Anschlüsse (RJ-45):	1
Maximale Datenübertragungsrate:	4804 Mbit/s
Ethernet LAN Datentransferraten:	10,100,1000,2500 Mbit/s
2,4 GHz:	Ja
Antenne Zunahmeniveau (max):	5 dBi
LED-Anzeigen:	Ja
Temperaturbereich bei Lagerung:	-40 - 70 °C
Luftfeuchtigkeit bei Lagerung:	5 - 90 %
Frequenzband:	2.4 - 5 GHz
Web-basiertes Management:	Ja
VLAN-Unterstützung:	Ja
Ausgangsspannung:	12 V
MAC Adressen Filtern:	Ja
Reset-Knopf:	Ja
5 GHz:	Ja
Kabellose Isolierung:	Ja
WLAN-Multimedia (WMM)/(WME):	Ja
Anzahl der SSID-Unterstützung:	16
BeamForming:	Ja
Automatische Kanalwahl:	Ja
Ratenbeschränkung:	Ja
Zugriffkontrollliste:	Ja
Antennenrichtungsart:	Mit kugelförmiger Richtcharakteristik
Funktionen Service Set Identifier (SSID):	Multiple SSIDs
Maximale Datenübertragungsrate (5 GHz):	4804 Mbit/s
MIMO:	Ja
MIMO-Typ:	Multi User MIMO
Maximale Datenübertragungsrate (2,4 GHz):	1148 Mbit/s
Bandsteuerung:	Ja
Schnelles Roaming:	Ja
Spread-Spectrum Methode:	OFDMA
6 GHz:	Nein
Automatischer Kanalscan:	Ja
