Seite 1/8
FM3130
0719
Supersedes
New
INSTALLATION INSTRUCTIONS
MODEL 519 and 522 Condensate Pumps
NOTICE TO INSTALLER: Instructions must remain with installation.
P/N 155408
© Copyright 2019 Zoeller
®
Co. All rights reserved.
1. To help reduce the risk of electrical shock, a properly grounded
receptacle or control box of grounding type must be installed
and protected by a ground fault circuit interrupter (GFCI) in
accordance with the National Electrical Code and applicable
local codes. If pump is wired direct, a GFCI must be installed
in the control box. (SEE WARNING BELOW)
2. Make certain that the ground fault interrupter protected
receptacle or control box is within reach of the pump’s power
supply cord. DO NOT USE AN EXTENSION CORD. Extension
cords that are too long or too light do not deliver sufficient
voltage to the pump motor. But more important, they could
present a safety hazard if the insulation were to become
damaged or the connection end were to fall into a damp or
wet area.
3. Make sure the pump's electrical supply circuit is equipped with
fuses or circuit breakers of proper capacity. A separate branch
circuit, sized according to the National Electrical Code for
the current shown on the pump name plate is recommended.
1. Inspect all materials. Occasionally, products are damaged during shipment. If the unit is damaged, contact your dealer before using.
2. Carefullyreadalltheliteratureprovidedtofamiliarizeyourselfwithspecicdetailsregardinginstallationandusebeforeattemptingtheinstallation.
These materials should be retained for future reference.
1. Check to be sure your power source is adequate to handle
the amperage requirements of the motor as indicated on
the pump or unit I.D. tag.
2. All plumbing (discharge and drain lines) must be installed to
meet local codes.
3. This pump has been evaluated for use with water only.
4. TESTING FOR GROUND. As a safety measure, each electrical
outlet should be checked for ground using an Underwriters
Laboratory Listed circuit analyzer which will indicate if the
power, neutral and ground wires are correctly connected
to your outlet. If they are not, call a qualified licensed
electrician.
5. Installation and checking of electrical circuits and hardware
should only be performed by a qualified licensed electrician.
6. FOR YOUR PROTECTION ALWAYS DISCONNECT PUMP FROM
ITS POWER SOURCE BEFORE HANDLING.
7. Prop65 Warning for California residents: Cancer and
Reproductive Harm- www.P65Warnings.ca.gov.
CAUTION
SEE BELOW FOR
LIST OF CAUTIONS
REFER TO WARRANTY ON PAGE 2.
NOTE: Pumps with the “UL” mark and pumps with the “US” mark
aretestedtoULStandardUL778.CSACertiedpumpsarecertied
to CSA Standard C22.2 No. 108.
SEE BELOW FOR
LIST OF WARNINGS
Register your
Zoeller Pump Company
Product on our website:
http://reg.zoellerpumps.com/
Product information presented
here reects conditions at time
of publication. Consult factory
regarding discrepancies or
inconsistencies.
MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347
SHIP TO: 3649 Cane Run Road • Louisville, KY 40211-1961
TEL: (502) 778-2731 • 1 (800) 928-PUMP • FAX: (502) 774-3624
Visit our web site:
zoeller.com
2
© Copyright 2019 Zoeller
®
Co. All rights reserved.
Zoeller Pump Company warrants, to the purchaser and subsequent owner
during the warranty period, every new Zoeller Pump Company product
to be free from defects in material and workmanship under normal use
and service, when properly installed, used and maintained, for a period
of two years from date of purchase. Proof of purchase is required.
Parts that fail within the warranty period that inspections determine to
be defective in material or workmanship, will be repaired, replaced or
remanufactured at Zoeller Pump Company’s option, provided however,
that by so doing we will not be obligated to replace an entire assembly,
the entire mechanism or the complete unit. No allowance will be made
for shipping charges, damages, labor or other charges that may occur
due to product failure, repair or replacement.
This warranty does not apply to any material that has been disassembled
without prior approval of Zoeller Pump Company, subjected to misuse,
misapplication, neglect, alteration, accident or act of God; that has not
been installed, operated or maintained in accordance with Zoeller Pump
Company installation instructions; that has been exposed to but not
limited to the following: sand, gravel, cement, mud, tar, hydrocarbons
or hydrocarbon derivatives (oil, gasoline, solvents, etc), wash towels
or feminine sanitary products, etc. or other abrasive or corrosive
substances. This warranty is in lieu of all other warranties expressed
Limited Warranty
or implied; and we do not authorize any representative or other person
to assume for us any other liability in connection with our products.
Contact Zoeller Pump Company, 3649 Cane Run Road, Louisville, Kentucky
40211-1961, Attention: Customer Service Department to obtain any needed
repair or replacement of part(s) or additional information pertaining to
our warranty.
ZOELLER PUMP COMPANY EXPRESSLY DISCLAIMS LIABILITY FOR SPECIAL,
CONSEQUENTIAL OR INCIDENTAL DAMAGES OR BREACH OF EXPRESSED
OR IMPLIED WARRANTY; AND ANY IMPLIED WARRANTY OF FITNESS FOR
A PARTICULAR PURPOSE AND OF MERCHANTABILITY SHALL BE LIMITED
TO THE DURATION OF THE EXPRESSED WARRANTY.
Some states do not allow limitations on the duration of an implied warranty,
so the above limitation may not apply to you. Some states do not allow
the exclusion or limitation of incidental or consequential damages, so
the above limitation or exclusion may not apply to you.
Thiswarranty givesyouspecic legalrightsandyou mayalsohave
other rights which vary from state to state.
1. Read all instructions before beginning installation.
2. Be sure the installation does not exceed a maximum of 15
feet of vertical lift.
3. Be sure the pump is level within 1/8" for the length of the
condensate pump.
4. Use soapy water when cleaning unit. Refer to maintenance
guidelines.
5. For best results, drain and discharge lines should have a
continuous downward slope.
1. DO read all installation material included with the pump.
2. DO inspect unit for any visible damage caused by shipping.
Contact dealer if unit appears to be damaged.
3. DO clean all debris from the pump reservoir.
4. DO always disconnect pump from power source before
handling. DO always connect to a separately protected and
properly grounded ground fault protected circuit. DO NOT
ever cut, splice or damage power cord. DO NOT carry or
lift pump by its power cord. DO NOT use an extension cord
with this condensate pump.
Ten Helpful Hints or Easy Installation
Do’s and Do Nots or Installing Unit
5. DO NOT use a discharge pipe smaller than the pump discharge
size.
6. DO test pump immediately after installation to be sure that
the system is working properly.
7. DO review all applicable local and national codes and verify
that the installation conforms to each of them.
8. Do not use Flexible tubing larger than 3/8".
6. Test operation of pump per STEP 5.
7. Do not overtighten check valve after cleaning. Refer to
maintenance guidelines.
8. Plug pump into a constant voltage source. Do not plug into
a device that runs intermittently.
9. The model number and date code can be found on the
pump I.D. label.
10. For best results, the highest point of the discharge line
shouldbehigherthan5’aboveoor.
In instances where property damages are incurred as a result of an alleged product failure, the property
owner must retain possession of the product for investigation purpose.
3
© Copyright 2019 Zoeller
®
Co. All rights reserved.

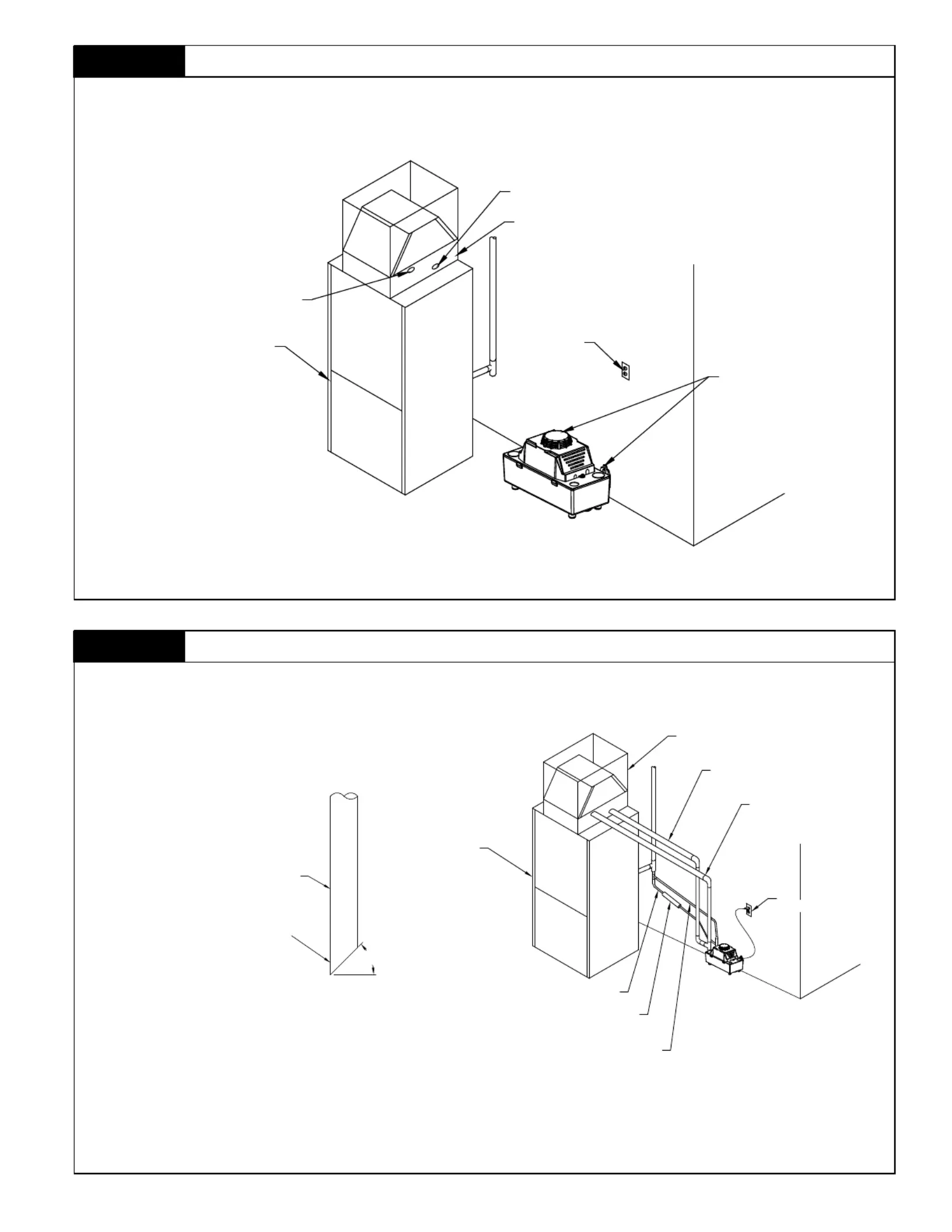

1.1) Select a location for the pump that is below the evaporator drain and/or furnace drain.
1.2) The unit has two mounting brackets built into the deck so the pump can be attached to the wall or side of the appliance.
Refer to Figure 1.2.
2.1) To prevent pipe blockage, modify the end of the pipe or tubing as shown in Figure 2.1.
2.2) Plumb,exibletubeorpipe,fromthecondensatedrainand/orfromthefurnacedraintotheinlethole(s)onthepump.
Refer to Figure 2.2.
Figure 1.2
Figure 2.2Figure 2.1
Note: Thedrainline(s)shouldhaveacontinuousdownwardslopetoallowforgravityow.
Note: Local codes may require the use of a condensate neutralizer when using this pump.
Note: Make sure the drain lines from the A.C. condenser are supported above the reservoir and no weight from the drain line is
directed to the bottom of the reservoir.
SK3177
SK1765
SK3178
STEP 1 Mounting Location
STEP 2 Installation of Condensate Drain Lines
CONDENSING GAS
FURNACE
OVERFLOW
MAIN CONDENSATE DISCHARGE
CONDENSATE TRAP
GFCI
OUTLET
MOUNTING BRACKETS
Note: Insert, Tubing or Pipe,
Through the Inlet until the Tip
Contacts Bottom of Reservoir.
Drain Pipe
45°
CONDENSING GAS
FURNACE
A/C CONDENSER
MAIN DRAIN FROM COIL
OVERFLOW DRAIN FROM
COIL WHEN REQUIRED.
GFCI
OUTLET
MAIN DRAIN FROM FURNACE
CONDENSATE NEUTRALIZER
CARTRIDGE (IF REQUIRED)
OVERFLOW DRAIN
FROM FURNACE
