WATERPROOF WIRELESS CHARGER

COVE LED 3 COIL 15W SC-CW-10GT

06-06-2024 (Rev A)

Installation Instructions

For further installation

and warranty information

please visit:

www.scanstrut.com

USA

+1 860 308 1416

[email protected]

UK & International

+44 (0)1392531280

[email protected]

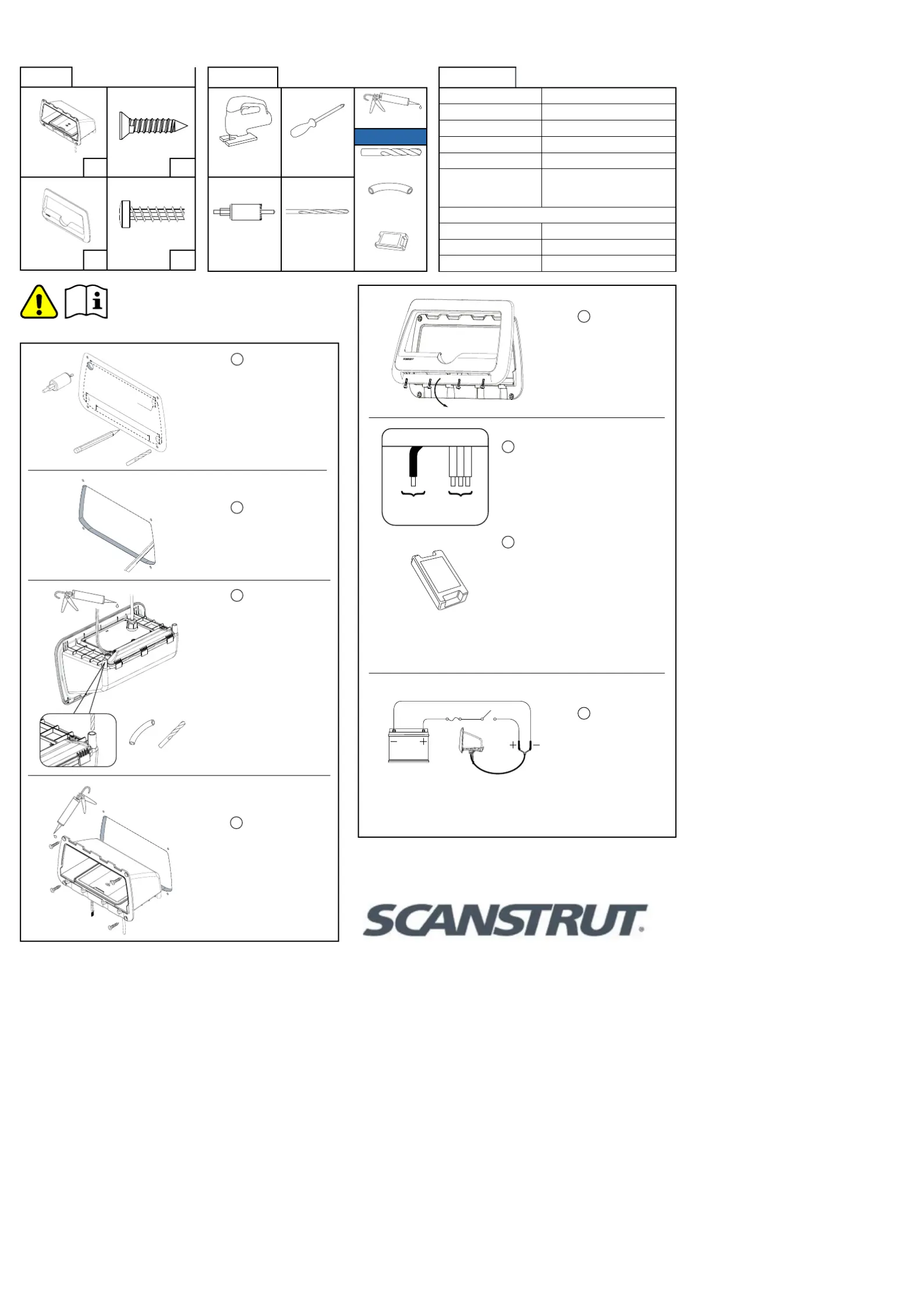

Tools Required

Sealant

Optional

Jig Saw Pozi

screwdriver

Ø5mm (0.2”)

Drill Bit

Drain tube

Ø8mm (5/16”)

Hole saw

Ø20mm (0.79”)

Drill bit

(see table)

LED Driver

Technical

IP Waterproof Rating IPX5 Front and back

Input voltage 10-30V DC (12/24V System)

Input current max 2A

Output power max 15W (9V 1.25A)

Standby power max <1.2W

Certication

CE, UKCA, FCC, ROHS,

C-Tick, UN ECE R10, E24,

PSE Certied

RGB LED

Input voltage 9-15V DC

Input current max 0.2A

Standby power draw <0.0W

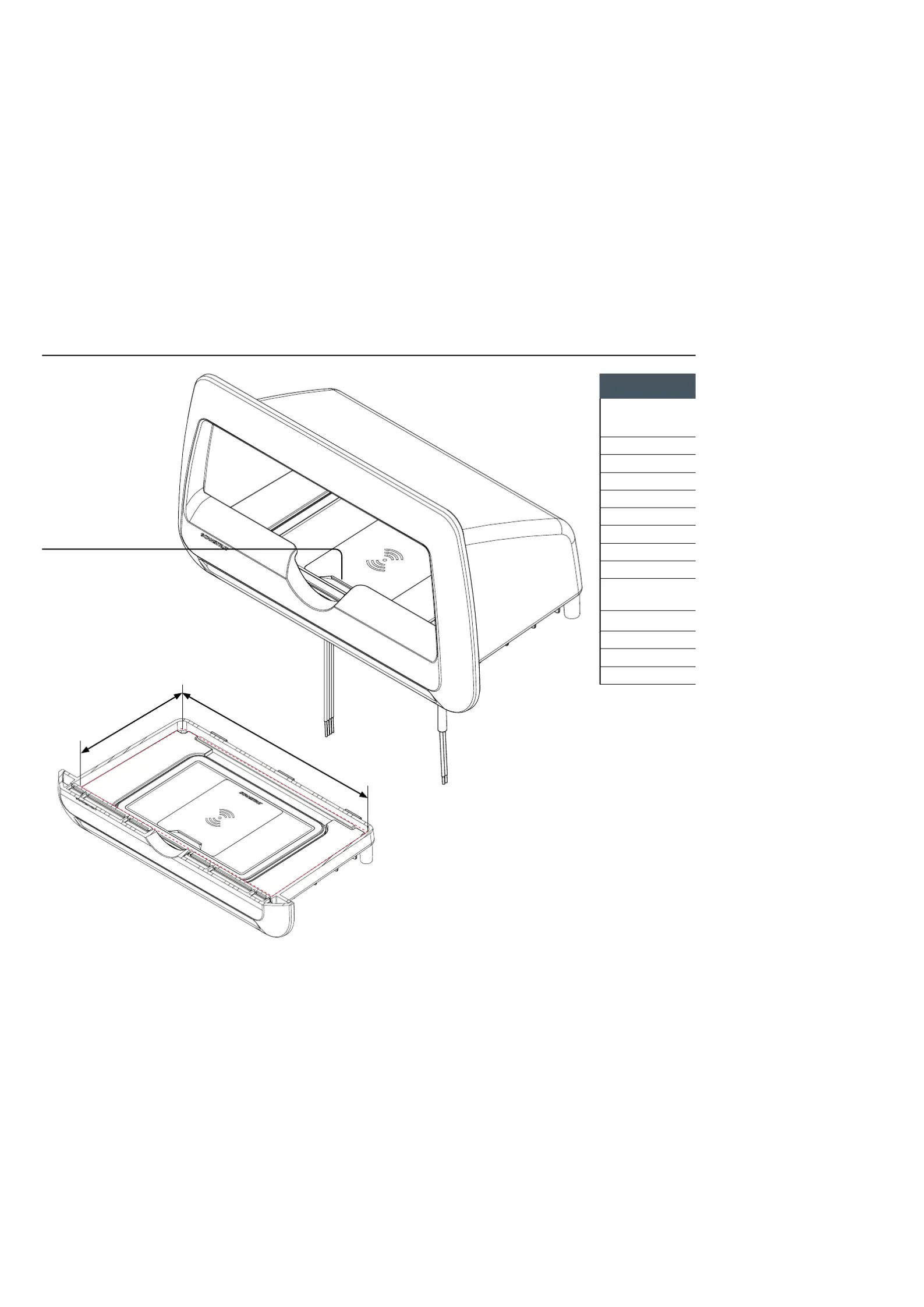

Part List

Pocket

Countersunk

screwx1 x4

Bezel

Pan head

screwx1 x4

1

2

3

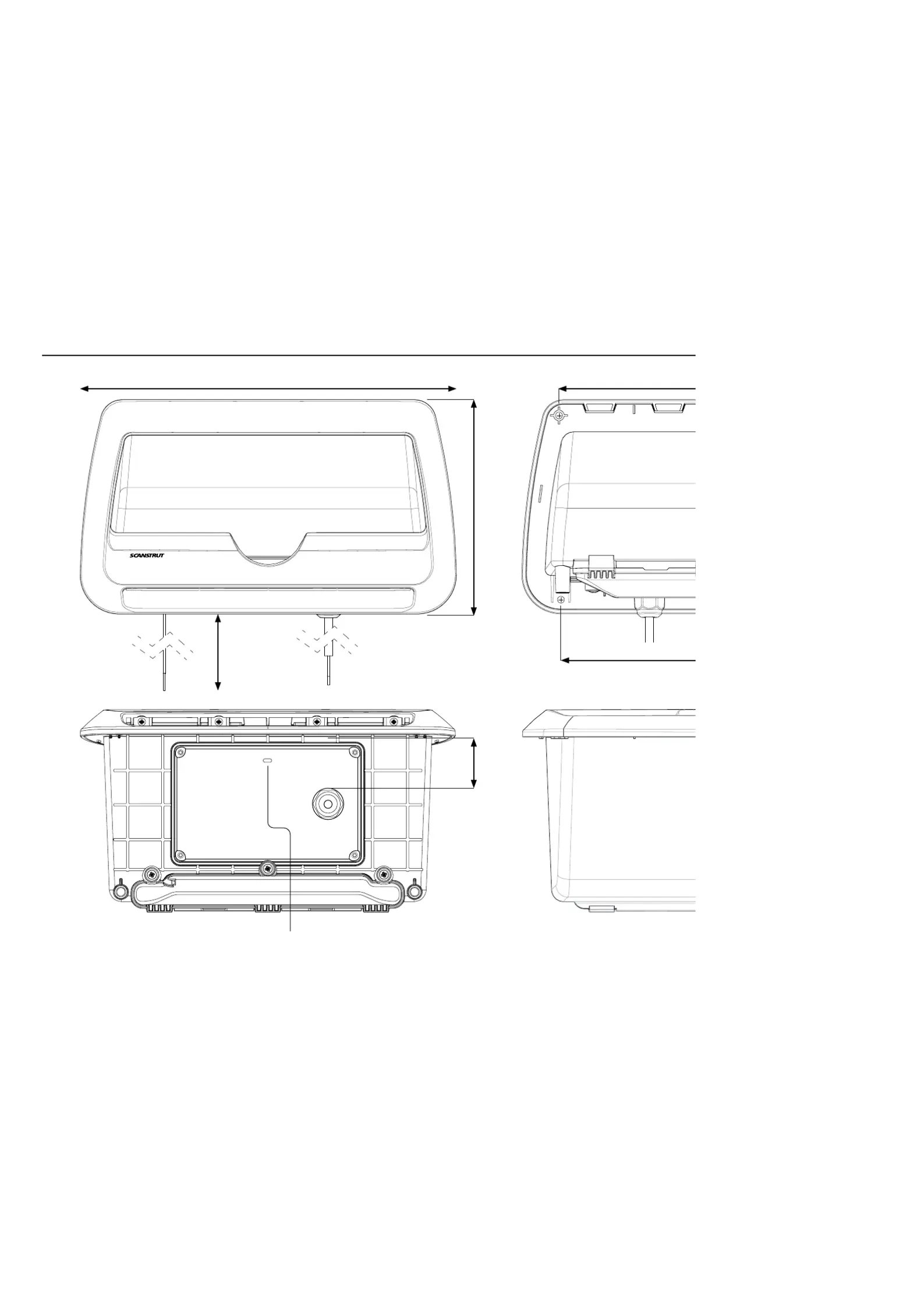

– Check installation size

– Mark the cutting

boundary

– Use template to

• Drill 4x pilot holes (see

table)

• Hole saw 4x 15mm

(0.59”)

– Jig saw inside of the

cutting boundary.

DO NOT exceed the

boundary area.

– Connect wires

or connectors to

12/24V supply,

ensuring a waterproof

connection.

– Fuse according to

input voltage and

current.

– Attach front bezel.

– Secure in place using

4x pan head xings.

5

7

– Apply silicone sealant

generously around

ange, ensure good

coverage around

perimeter.

– Install drainage on

product.

• Drain holes: Ø5mm

(0.2") drill bit required.

• Drain pipe: ID Ø8mm

(5/16") required.

(Optional - Tools and parts

not included).

Note: The electrical schematic is to illustrate how the

product should be connected to a 12V DC or 24V DC

battery/power supply.

+

+

12V Input

(+) Black

cable

(-) RGB

cables

Optional

LED driver

(not included)

Caution: The RGB wiring should be used on a

12V system only.See technical information for

guidance.

– For a single light color, make a (+)

positive connection to the black

cable.

– Make a (-) negative connection

to any of the Red, Green or Blue

cables.

– Connect all three RGB cables to

an RGB Controller for multicolor

lighting control.

– Secure pocket in place

using 4x countersunk

xings.

– Apply silicone sealent

to xings holes.

4

6a

6b

(Optional)

READ THE IMPORTANT SAFETY

INFORMATION LEAFLET BEFORE

INSTALLING.
