scanstrut.com
EN READ THESE INSTRUCTIONS BEFORE
INSTALLING THE PRODUCT
DE LESEN SIE DIESE ANLEITUNG DURCH, BEVOR SIE
MIT DER INSTALLATION BEGINNEN
ES LEA ESTAS INSTRUCCIONES ANTES DE INSTALAR
EL PRODUCTO
FR VEUILLEZ PRENDRE CONNAISSANCE DE CES
INSTRUCTIONS. AVANT DE PROCÉDER
À L’INSTALLATION
IT LEGGERE QUESTE ISTRUZIONI PRIMA DI
INSTALLARE IL PRODOTTO
SWE LÄS DESSA INSTRUKTIONER INNAN
PRODUKTEN INSTALLERAS
UK / EMEA / APAC
Scanstrut Ltd, 14 Dart Business Park,
Clyst St. George, Exeter, EX3 0QH
USA
Scanstrut Inc. 7 Pequot Park Rd,
#303 Westbrook, CT 06498
Rev B RETAIL-INST-005126
For the latest tech info visit
scanstrut.com
Drill
Hole Saw
51mm (2”)
Drill Bit
for Pilot Hole
Tools Required
1x Ultra Qi2 Lock Ring1 x Ultra Qi2 Charger
Parts List
IP Waterproof RatingIPX6 front and back
Input Voltage10-30V DC (12/24V System)
Input Current Max2A
Output Power Max15W
Standby Power<0.5W
Certification
Qi2, CE, ROHS, FCC, C-Tick, WEEE,
UN ECE R10, PSE Certified
SC-CW-14G-001
Deutsch connector:
DT04-2P
Technical Information
File or
Deburring tool

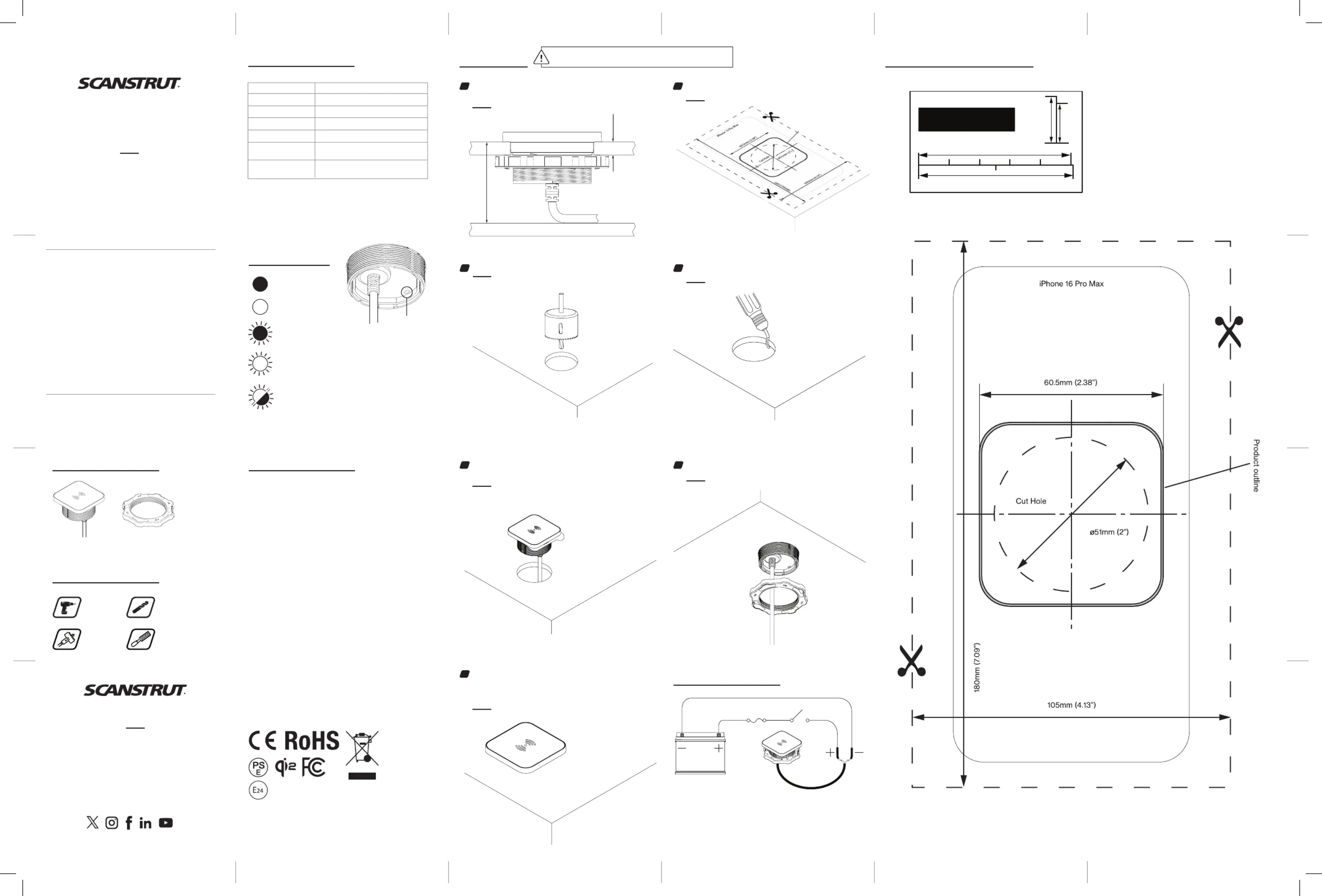

• Choose a suitable mounting location
• Ensure that there is enough space around the mounting location
for your phone
1
Installation
LED Indicator Key
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may
cause undesired operation. Any changes or modifications not expressly
approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
• Adjust or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC RF exposure statement
The equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and
operated with a minimum distance of 20cm (7.87402 “) between
the radiator and your body.
FCC ID: 2APUP-SCCW14G
Scanstrut Ltd, declares the product ‘Waterproof Magnetic Charger’
SKU: SC-CW-14G & SC-CW-14G-001 is in compliance with EMC CE-RED
Directive (2014/53/EU) & standard EN 62368. The CE certificate of
conformity can be found at scanstrut.com/compliance
Red LED Constant
Standby (power on)
White LED Constant
On charge
Red LED Flashing
Under voltage - Disconnect the charger from the
power supply and use a supply with the required output.
White LED Flashing
Foreign object detection - Object placed on top that is not
Qi compatible.
White & Red LED Flashing
The internal temperature is too high. Wait for the product to
return to operating temperature.
• Use a 2” (51mm) holesaw to cut the install hole for the product
3
• Remove self-adhesive backing
• Feed cable through the hole
• Ensure that the product is correctly orientated
• Connect wires or connectors to 12/24V supply. Ensure a waterproof
connection
• Fuse according to input voltage and current
• Check the LED indicator light and refer to the LED Indicator key
for more detail
6
Drilling Template Scale 1:1
• Remove the template and tidy up the cut edge of the hole
• Ensure that there are no raised or sharp edges
4
5
• Apply pressure on top of charger to secure into place
• Install lock ring from underneath
6
Wiring Diagram
+
-
Red
Black
LED
Waterproof Wireless Charger
UltraMagnetic Charger •
Electrical Information
& Installation Instructions
SC-CW-14G | SC-CW-14G-001
10R06/03-6536-00
• Use the template to mark out the product outline and drill a pilot hole
for your holesaw cut
2
EU Representative (Regulatory Inquires Only)
Eucomply OÜ, Pärnu mnt 139b-14, 11317 Tallinn, Estonia
hello@eucompliancepartner.com +3375690241
For best performance wipe clean with fresh water and a microfibre cloth.
Min cavity space
43mm (1.7”)
Mounting material thickness
Max 20mm (0.8”)
Min 6mm (0.2”)
50mm
2”
�5mm
0.5”
WARNING:
CHECK SCALE
□
