Seite 1/2
WATERPROOF WIRELESS CHARGER
NEST 3 COIL 15W SC-CW-6GT
10-05-2024 (Rev A)
Installation Instructions
For further installation
and warranty information
please visit:
www.scanstrut.com
USA
+1 860 308 1416
usasales@scanstrut.com
UK & International
+44 (0)1392531280
sales@scanstrut.com
Tools Required
Jig Saw Pozi
screwdriver
Sealant
Optional drainage
Ø5mm (0.2”)
Drill Bit
Hole saw
Ø20mm (0.79”)
Ø28mm (1.1”)
Drill bit
(see table)
Drain tube
Ø8mm (5/16”)
Technical
IP Waterproof Rating IPX6 Front and back
Input voltage 10-30V DC (12/24V System)
Input current max 2A
Output power max 15W (9V 1.25A)
Standby power max <1.2W
Certication
CE, UKCA, FCC, ROHS,
C-Tick, UN ECE R10, E24,
PSE Certied
Part List
Pocket
Countersunk
screwx1 x4
Bezel
Pan head
screwx1 x2
1
2
3
– Cut out template
– Mark the cutting
boundary
– Use template to
• Drill 4x pilot holes
(see table)
• Hole saw 2x
• Hole saw 2x
– Jig saw inside of the
cutting boundary.
DO NOT exceed the
boundary area.
– Connect wires
or connectors to
12/24V supply,
ensuring a waterproof
connection.
– Fuse according to
input voltage and
current.
– Secure pocket in place
using 4x countersunk
xings.
– Apply silicone sealent
to xings holes.
– Attach front bezel.
– Secure in place using
2x pan head xings.
4
5
6
+
– Apply silicone sealant
generously around
ange, ensure good
coverage around
perimeter.
– Install drainage on
product.
• Drain holes: Ø5mm
(0.2") drill bit required.
• Drain pipe: ID Ø8mm
(5/16") required.
(Optional - Tools and parts
not included).
Note: The electrical schematic is to illustrate how the
product should be connected to a 12V DC or 24V DC
battery/power supply.
READ THE IMPORTANT SAFETY
INFORMATION LEAFLET BEFORE
INSTALLING.
WATERPROOF WIRELESS CHARGER
NEST 3 COIL 15W SC-CW-6GT
10-05-2024 (Rev A)
Installation Instructions
For further installation
and warranty information
please visit:
www.scanstrut.com
USA
+1 860 308 1416
usasales@scanstrut.com
UK & International
+44 (0)1392531280
sales@scanstrut.com
Material Drill Fixing
Soft Material
e.g. plywood
2.5mm
(3/32”)
No.6
Screw
(Included)
Hard Material
e.g. berglass,
hardwoods, acrylics
3mm
(1/8”)
Metal
e.g. Steel, aluminium
3mm
(1/8”)
Recommended
>12mm x M3 Countersunk
Bolt with washer and Nyloc
(Not included)
Drill table LED Charging indicator

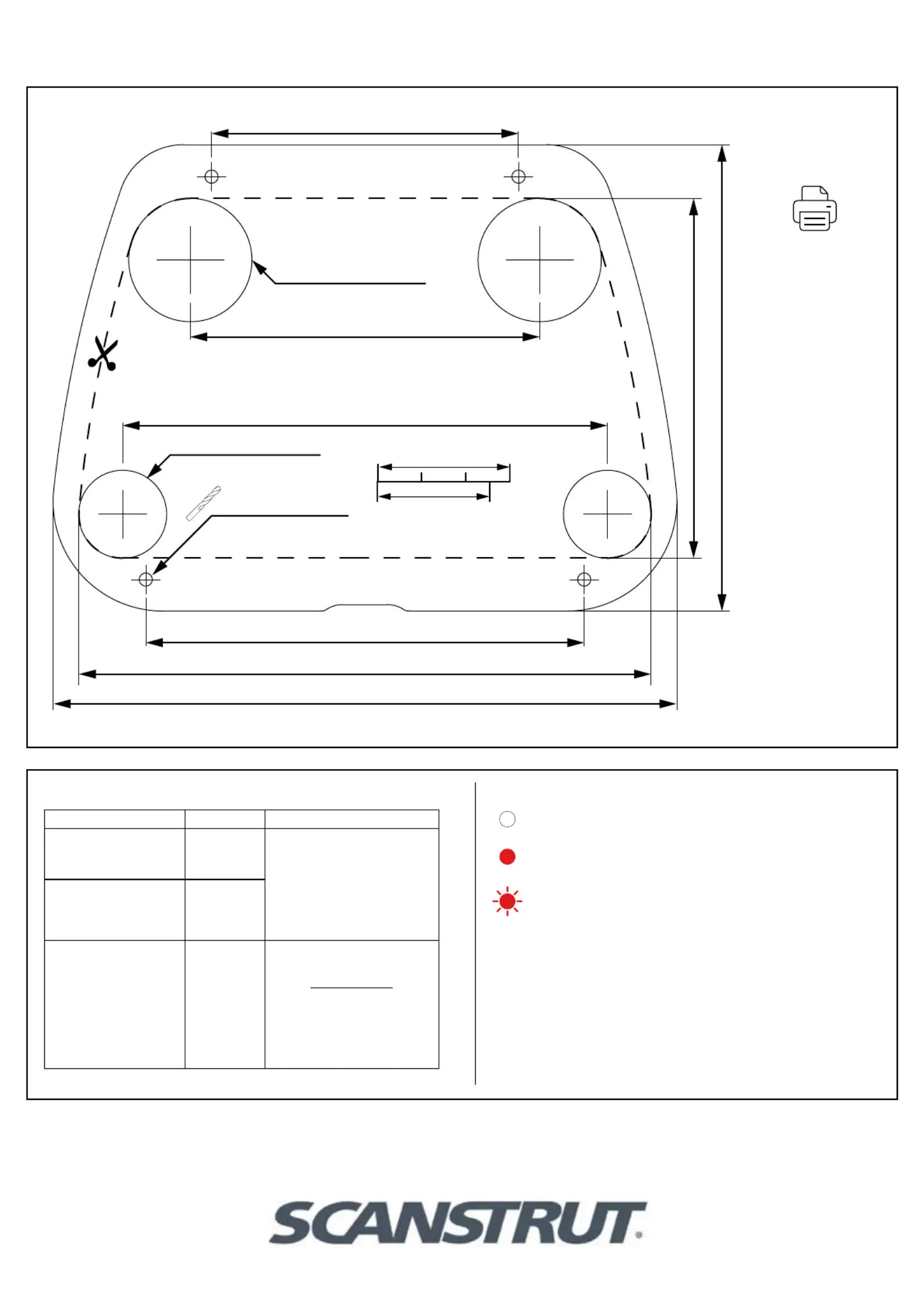

Print document 1:1
scale for correct
cutting template
size.
Paper Size A4
70mm (2.76")
100mm (3.94")
130.5mm (5.13")
142mm (5.59")
1"
30mm
Ø20mm (0.79")
110.5mm (4.35")
79.7mm (3.14")
ØSee drill table
Ø28mm (1.1")
82mm (3.22")
106mm (4.17")
White LED Constant: ON Charge
Red LED Constant: Standby (power ON)
Red LED Flashing:
Foreign object detection: metallic object placed on top that is not
Qi compatible.
OR
Thermal cutout: The internal temperature is too high/ low. Wait
for product to return to operating temperature.
