WATERPROOF WIRELESS CHARGER

HIDDEN 3 COIL 15W SC-CW-1GT

22-08-2024 (Rev B)

Installation Instructions

For further installation

and warranty information

please visit:

www.scanstrut.com

USA

+1 860 308 1416

[email protected]

UK & International

+44 (0)1392531280

[email protected]

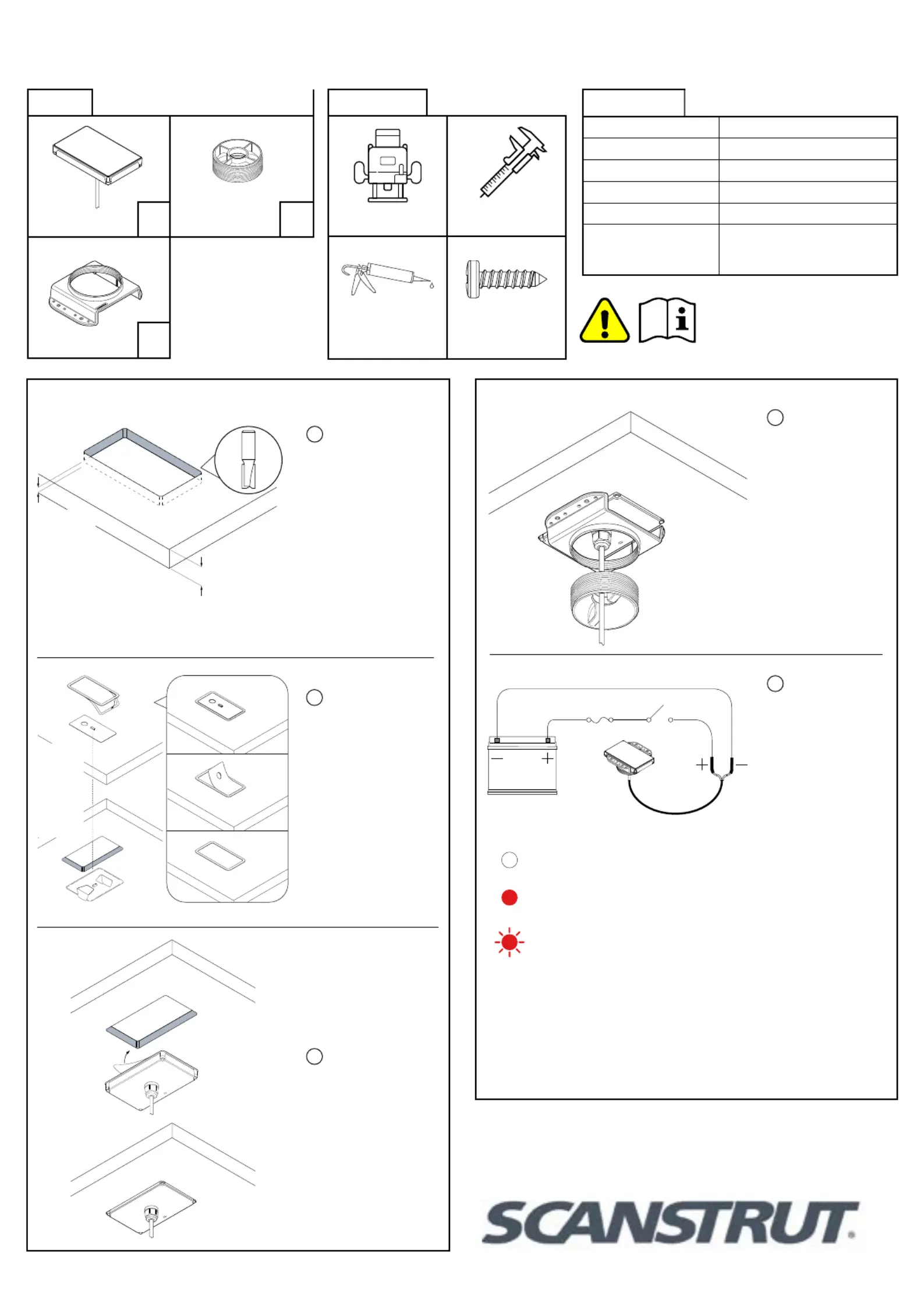

Tools Required

Jig SawFile

Glue (Optional)Pan head screw

(Optional)

Technical

IP Waterproof RatingIPX6 Front and back

Input voltage10-30V DC (12/24V System)

Input current max2A

Output power max15W (12V 1.25A)

Standby power max<1.2W

Certication

CE, UKCA, FCC, ROHS,

C-Tick, UN ECE R10, E24,

PSE Certied

Part List

Hidden 3 Coil

Compression

puckx1

x1

Mounting bracketx1

1

2

3

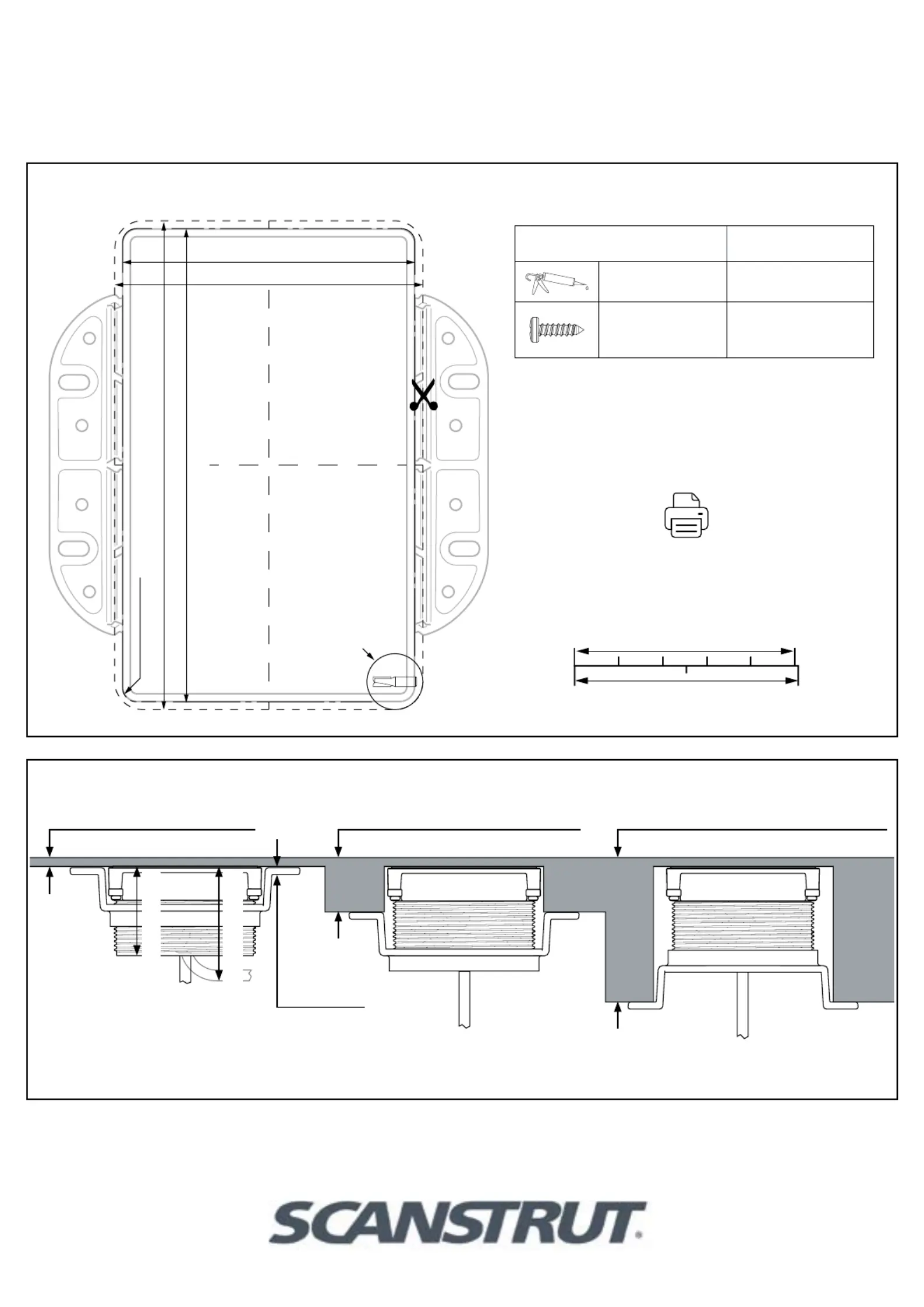

If the mounting surface

(T) is >3mm (0.1"). Rout a

pocket on the underside

using the template as a

guide. Rout the prole

until <3mm thickness is

achieved.

T

<3mm

(0.1")

Top

Side

Under

Side

–Clean the top and

underside surfaces.

–Align the installation tool

centrally with the sticker.

–Remove the adhesive

backing from the grip

ring and apply.

–Remove the alignment

tools.

–Remove adhesive

backing from the charger

and apply.

–Connect wires

or connectors to

12/24V supply,

ensuring a waterproof

connection.

–Fuse according to

input voltage and

current.

–Screw OR glue

mounting bracket into

place. (Fixings not

included).

–Screw the puck into

the mounting bracket

until it compresses the

charger. (Do not over

tighten)

4

5

READ THE IMPORTANT SAFETY

INFORMATION LEAFLET BEFORE

INSTALLING.

White LED Constant: ON Charge

Red LED Constant: Standby (power ON)

Red LED Flashing:

Foreign object detection: metallic object placed on top that is not

Qi compatible.

OR

Thermal cutout: The internal temperature is too high/ low. Wait

for product to return to operating temperature.
